Marantz AV7701 - Wiring Diagram

120

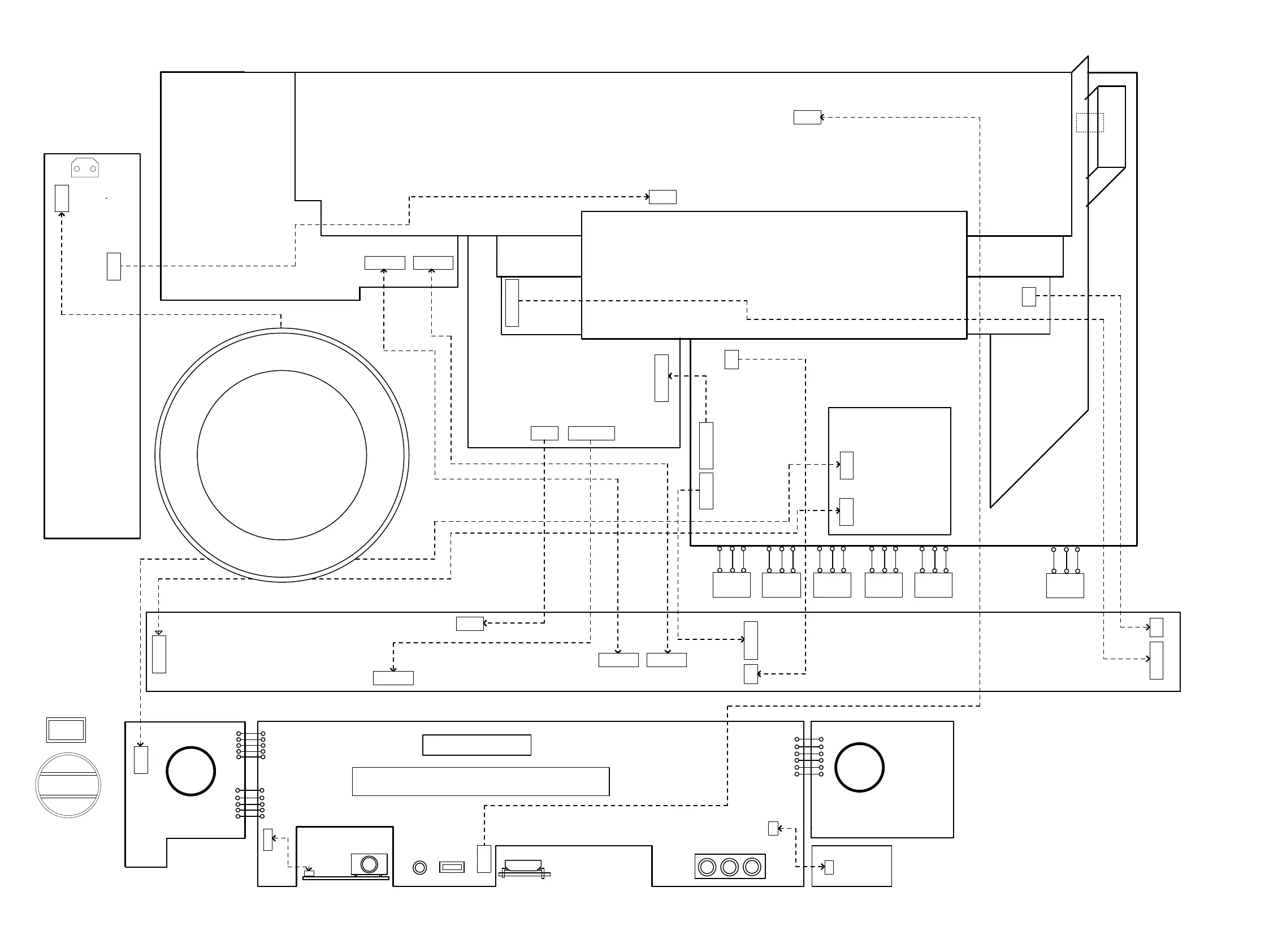

WIRING DIAGRAM
ISSUE
ANAM
MULTI. LAP
2012.08.14
MP
SMPS B'D
INLET
H/P B'D
FRONT VFD B'D
FRONT HDMI B'D
WIRE,5P,2.0MM,550mm
7908
2388F08
7805
7905
7805
VIDEO B'D
INPUT B'D
FRONT CNT. B'D
SIDE CNT.B'D
TUNER PACK
HDAM B'D
DIGITAL B'D
MAIN TRANS
YW396-03
(S1)
(S3/S4)
WAFER/SMW250-03P
(S2)
WAFER/YW396-03B,7.92mm pitch
AC IN
WAFER/SMW250-05P
CN902
BN903
WIRE,5P,2.5mm
BN605A
ENCODER B'D
FUNCTION
WIRE,5P,2.0mm,100mm
BN605B
WIRE/7P/2.5mm/
(FL PWR)
SEC 5,6
VOLUME ENCODER B.D
CUP12486Z-1
CN7010
(S1)
WIRE/03P/3.96/270mm
(AMP PWR)
WIRE/03P/2.5mm/320mm
(S3/S4)
(S2)
CN941
WAFER/SMW250-05P
CN940
WIRE/05P/2.5mm/270mm
WIRE/02P/3.96mm/160mm
(PRI.)
FUSE B'D
CUP12391Y
CUP12487Z
REG.,PREOUT
CUP12443Z
CN903
CUP12440Z
20022WS-05C
CN321
CUP12439Z
WIRE,13P,2.0mm
BN461
CUP12438Z
CUP12444Z-2
CUP12444Z-1
CN602
USB JACK
BN608A
BN608B
BN321
MIC
BLANCE OUT B'D
CUP12486Z-3
FL601
FL602
CUP12433-1
DOOR SW B'D
AUX
CURRENT FB B'D
WIRE,3P,2.0mm,80mm,UL1007#24
BN640
13P,2.0mm,50mm,UL1007#26
YMAW025-07R
CUP12433-3
CUP12433-2
220mm,UL1007#26
(CWB1B013220HC)
(CWB1B013050HC)
400mm,UL1569#22,105
(CWB7D0054003D001)
(CWB1C005100CC)
(CWB8A005550LC)
UL2725#24/#28,1P+2C
(CWB1C003080CC)
UL1007#24
CUP12486Z-2
7805
BLANCE CONNECTOR B'D
CN702
WAFER/SMW250-13P
BN701
WIRE, 11P,2.0mm
BN700
WIRE, 7P,2.0mm
BN704BN705
CN705
WAFER/SMW250-15P
CN704
WAFER/SMW250-13P
CN461P
WAFER/SMW250-13P
CN601
WAFER/SMW250-3P
CN700
WAFER/SMW250-7P
CN701
WAFER/SMW250-11P
BN461
WIRE, 13P,2.0mm, 300MM
CN461
WAFER/SMW250-13P
CN492
WAFER/SMW250-3P
BN492
WIRE, 3P,2.0mm
170mm, UL1007#26
170mm, UL1007#26
WAFER/SMW250-13PWAFER/SMW250-15P
BN601
WIRE,3P,2mm pitch, 250mm
UL1007#26
(CWB1B003250HC)
(CJP02GA89ZY)
(CWB1B013300HC)
(CWB1B003250HC)
UL1007 #26
UL1007#26
(CJP05GI289ZY)
(CJP05GA208ZY)
(CWB1B007180HC)
(CWB1B011180HC)
(CJP13GJ288ZY)(CJP15GJ288ZY)
(CJP13GI288ZY)
(CJP13GI288ZY)
(CJP03GI288ZY)
(CJP03GI288ZY)
(CJP07GI288ZY)
(CJP11GI288ZY)
(CJP03GA89ZY)
(CJP13GI288ZY)
(CJP13GI288ZY)(CJP15GI288ZY)
(CJP05GI289ZY)
(CJP03GI289ZY)
(CJP07GB03ZY)
TOROIDAL
