18

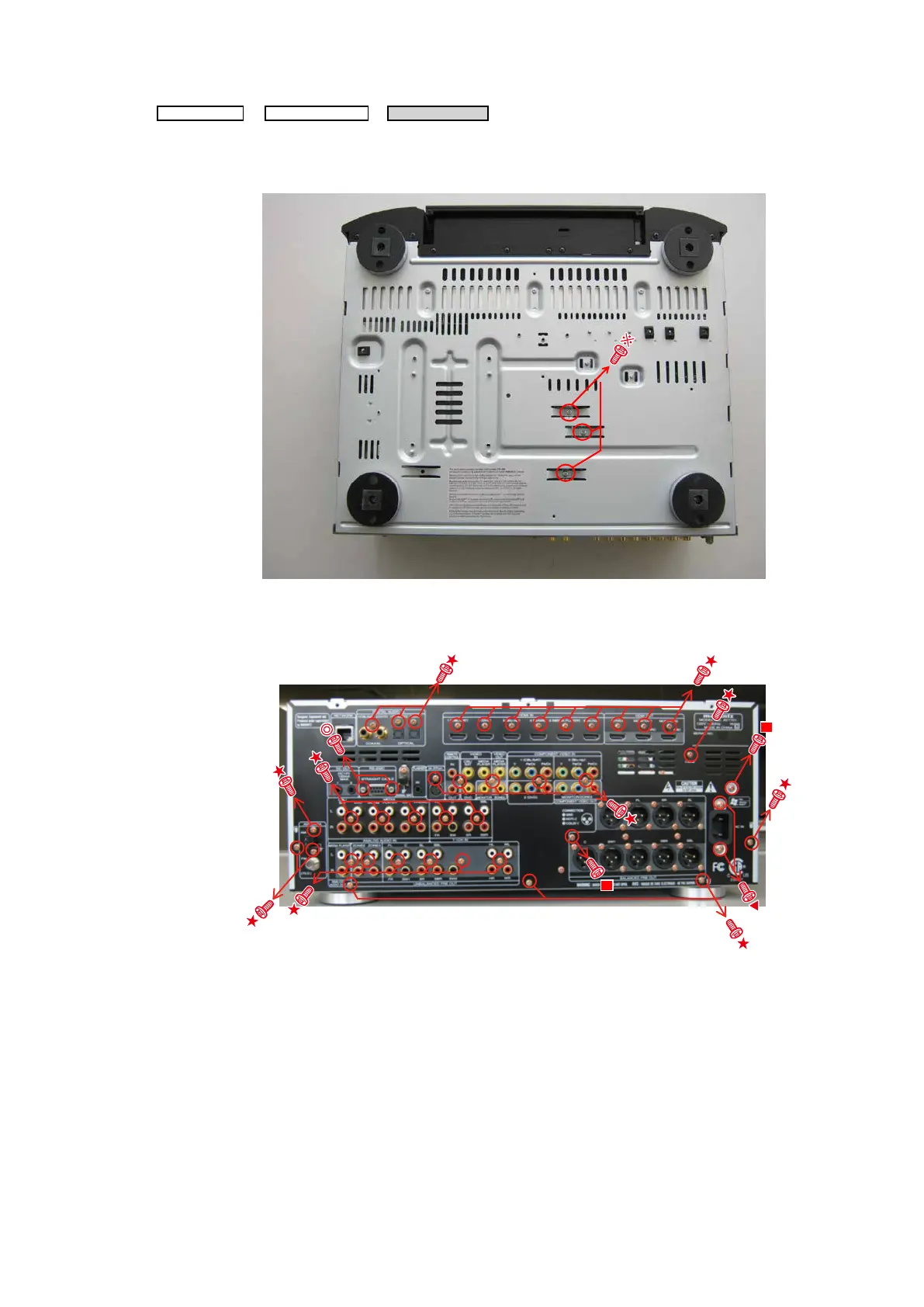

3. HDMI UNIT ASSY
(1) Remove the screws.
(2) Remove the screws, then remove the BACK PANEL and the HDMI BRACKET.
CABINET TOP
HDMI UNIT ASSY
HEAT SINK ASSY
Proceeding :
View from the bottom
Shooting of photograph: A
