Marantz AV7701 - Jig for Servicing

63
JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
PleaseorderitfromMarantzOfcialService.Distributorinyourregionifnecessary.
NOTE
: The incorrect connection with in the JIG (EXTENSION UNIT KIT) may cause damage.
8U-110084S : EXTENSION UNIT KIT : 2 Set
• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Do not supply it) : 3 sheets
Ground lead (Do not supply it) : 3 pcs
-Procedures-

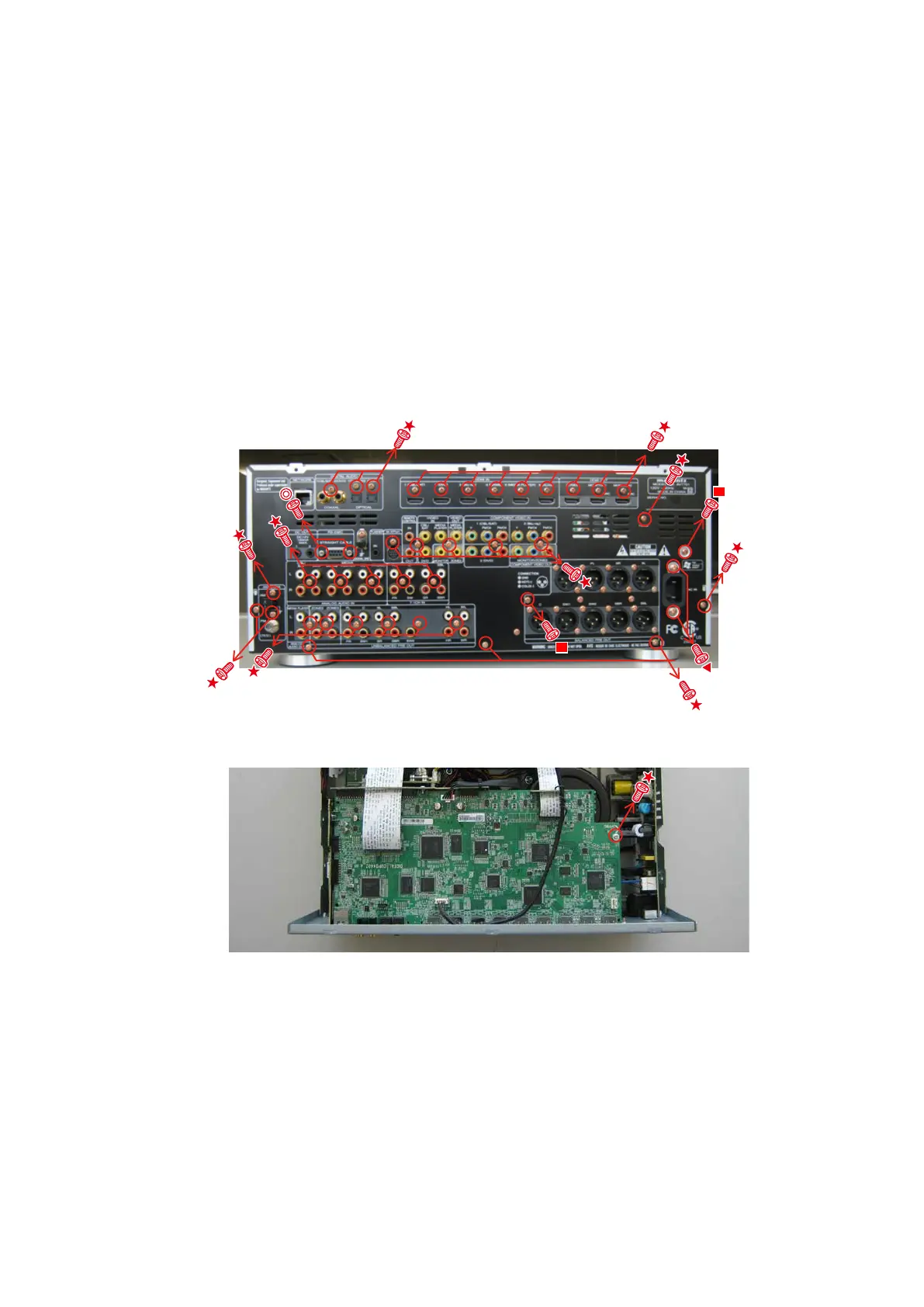

(1) Remove the screws.
