Marantz AV7701 - Trans Main

21

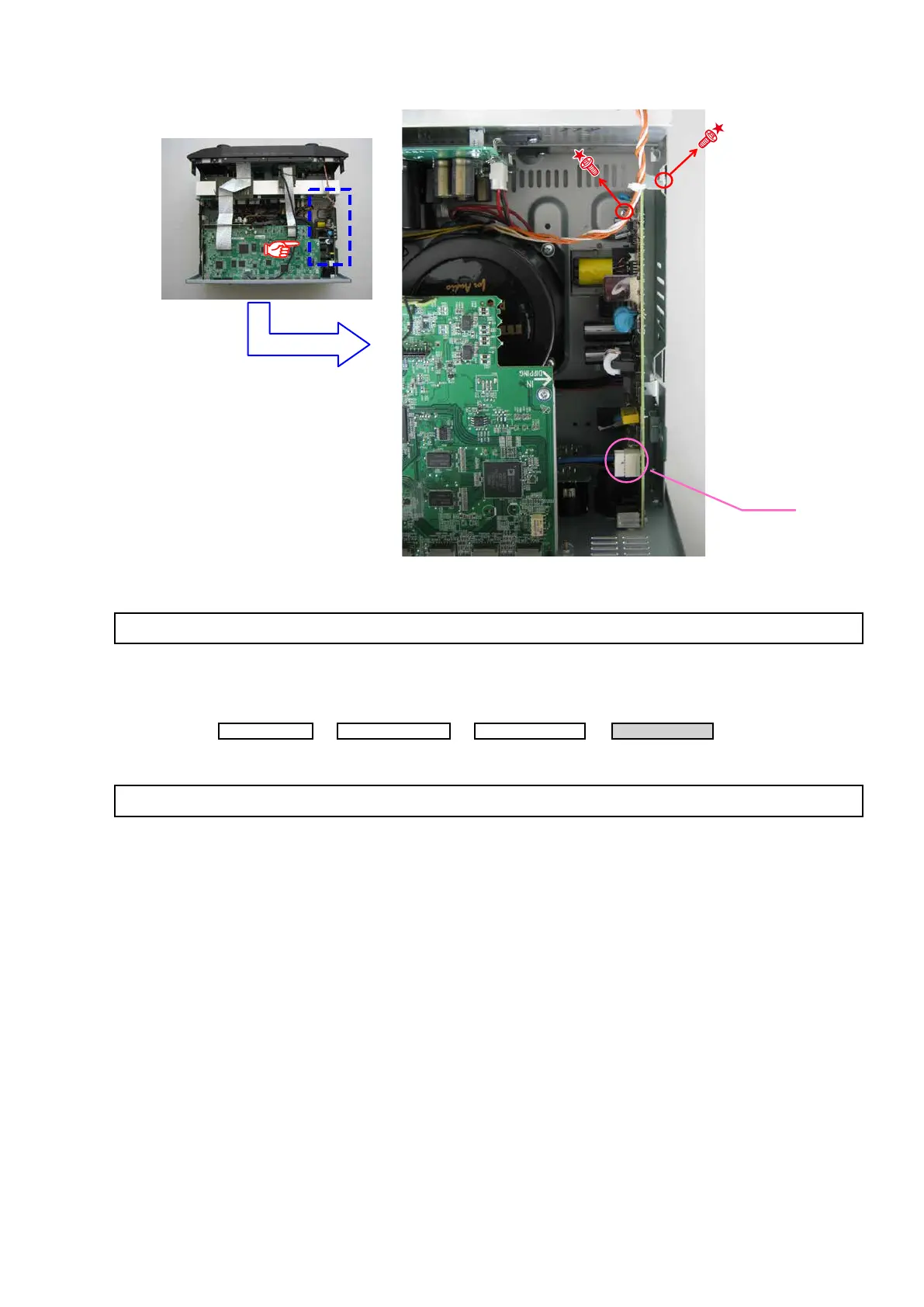

(7) Cut the wire clamp bands, then disconnect the connector wires, and remove the screws.
4. TRANS MAIN
Shooting direction: A
CN902
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HDMI UNIT ASSY.
CABINET TOP
HDMI UNIT ASSY
→
POWER TRANS
→
HEAT SINK ASSY
→
Proceeding :
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in TRANS MAIN.
