TECHNICAL SPECIFICATIONS
n
Audio Section
• Analog
Input sensitivity/Input impedance : 200mV/47kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 105 dB (IHF–A weighted, DIRECT mode)
Distortion: 0.005 % (20 Hz – 20 kHz) (DIRECT mode)
Rated output : Unbalanced pre-output: 1.2 V
Balanced pre-output: 2.4 V
• Digital
D/A output : Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input : Format — Digital audio interface
• Phono equalizer (PHONO input — MEDIA PLAYER OUT)
Input sensitivity : 2.5 mV
RIAA deviation: ±1 dB (20 Hz to 20 kHz)
S/N : 74 dB (A weighting, with 5 mV input)
Rated output: 150 mV
Distortion factor : 0.03 % (1 kHz, 3 V)
n
Video section
• Standard video connectors
Input/output level and impedance : 1Vp-p,75Ω
Frequency response: 5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance : Y(brightness)signal—1Vp-p,75Ω
PB / CBsignal—0.7Vp-p,75Ω
PR / CRsignal—0.7Vp-p,75Ω
Frequency response: 5 Hz – 60 MHz — 0, –3 dB
n
Tuner section
(ANTENNA input – MEDIA PLAYER OUT)
[FM](Note:μVat75Ω,0dBf=1x10
–15
W)
Receiving Range :
[FM] 87.5 MHz – 107.9 MHz [AM] 530 kHz – 1710 kHz
Usable Sensitivity :
[FM]1.5μV(14.8dBf) [AM]20μV
S/N (IHF–A weighted) :
[FM]MONO 78 dB
STEREO 68 dB
HD 85 dB [AM] 85 dB
Distortion (1 kHz) :
[FM]MONO 0.1 %
STEREO 0.2 %
HD 0.02 % [AM] 0.02 %
n
General
Power supply : AC 120 V, 60 Hz
Power consumption : 60 W
Power consumption in standby mode : 0.2 W
Power consumption in CEC standby mode : 0.5 W
Power comsumption in network standby mode : 2.7 W
For purposes of improvement, specications and design are
subject to change without notice.
14.5 16.5 361.0
11.5
389.0 267.0 39.554.5
170.5
180.5
50.0 50.0340.0
440.0
56.0

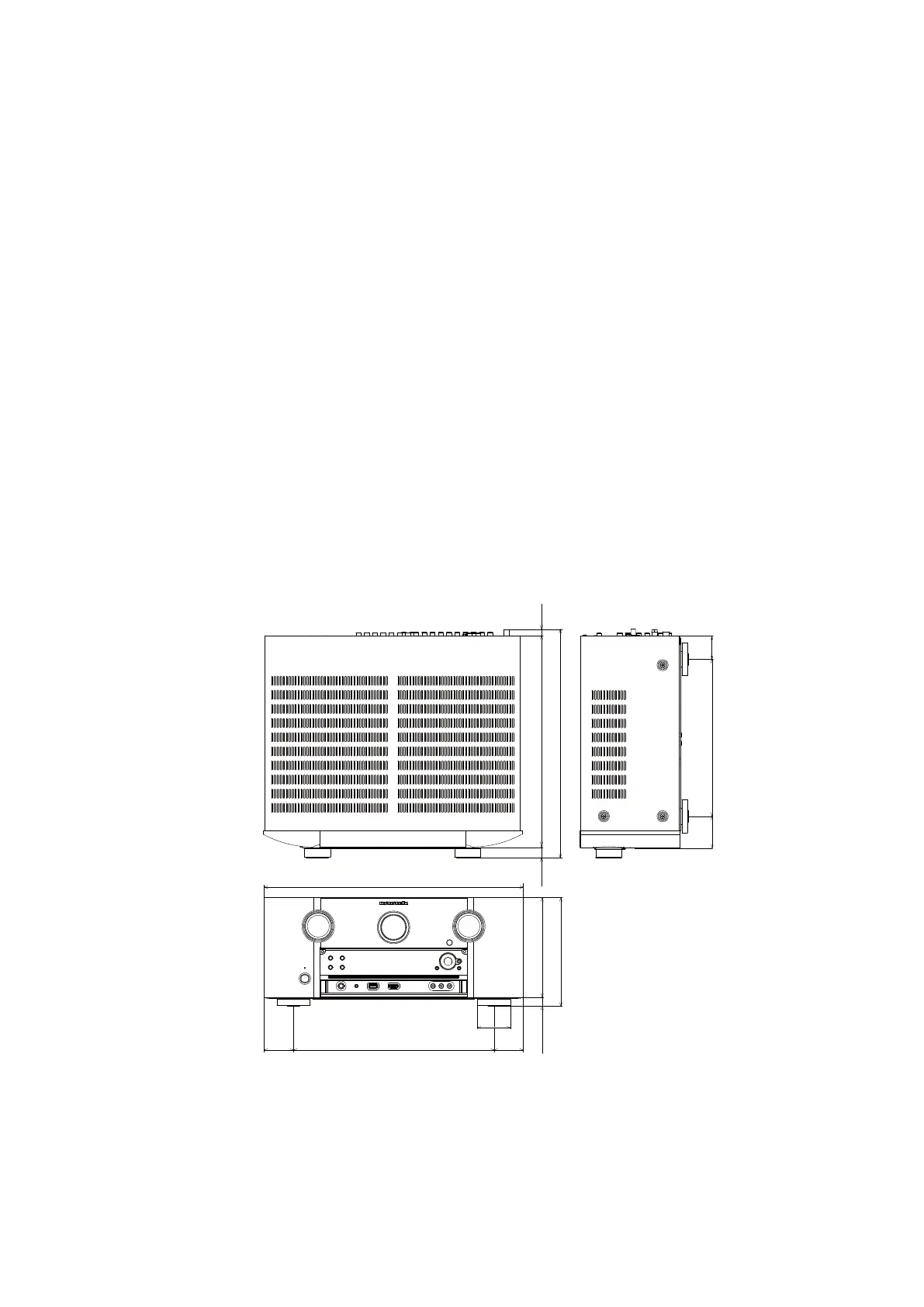

DIMENSION
