Marantz AV7701 - Page 17

17

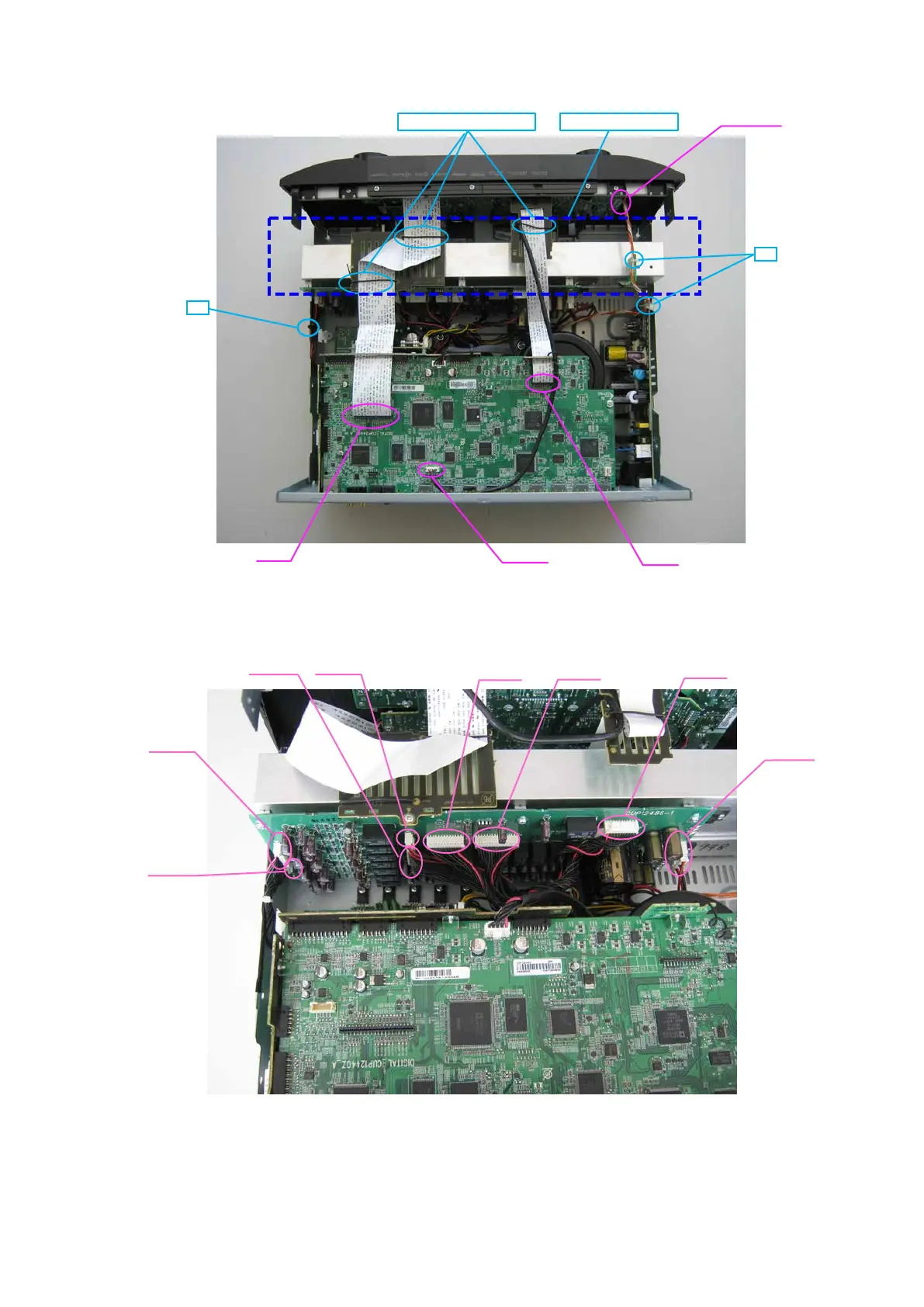

(3) Cut the wire clamp band, then disconnect the connector wire and FFC.
(4) Cut the wire clamp bands, then disconnect the connector wires.
cut
CN321
FFC
FFC
STYLE PIN : Loosen HEAT SINK Assy
cut
CN602
CN461
CN461P CN601
CN704 CN705
CN492
CN701
CN7010
