66

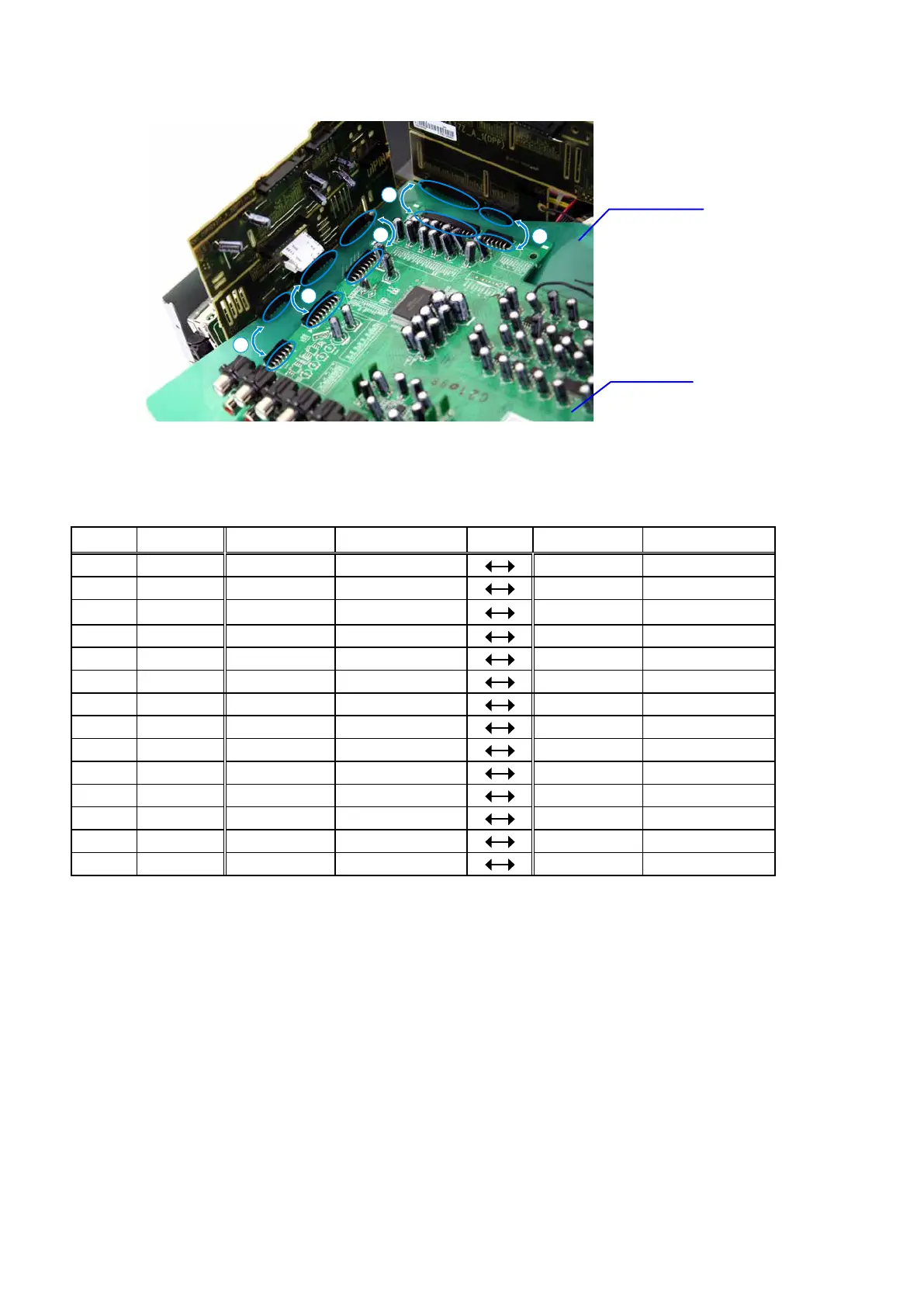

Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
19pin CN27A SIDE CNT CN27B HDMI
w
11pin CN28A SIDE CNT CN28B HDMI
e
27pin CN24A FRONT CNT CN24B HDMI
r
11pin CN26A FRONT CNT CN26B HDMI
t
17pin CN25A FRONT CNT CN25B HDMI
y
15pin CN21A FRONT CNT CN21B HDMI
u
21pin CN53A SIDE CNT CN53B VIDEO
i
11pin CN52A SIDE CNT CN52B VIDEO
o
15pin CN51A FRONT CNT CN51B VIDEO
Q0
11pin CN45A SIDE CNT CN45B INPUT
Q1
17pin CN44A SIDE CNT CN44B INPUT
Q2
15pin CN41A SIDE CNT CN41B INPUT
Q3
27pin CN42A FRONT CNT CN42B INPUT
Q4
11pin CN43A FRONT CNT CN43B INPUT
14
12
13
10
11
PCB INPUT
Insulation sheet
