Marantz SR7008 - Connecting a Turntable

47
Appendix
TipsSettingsPlayback
Contents
Front panel Display Rear panel IndexRemote
Connections

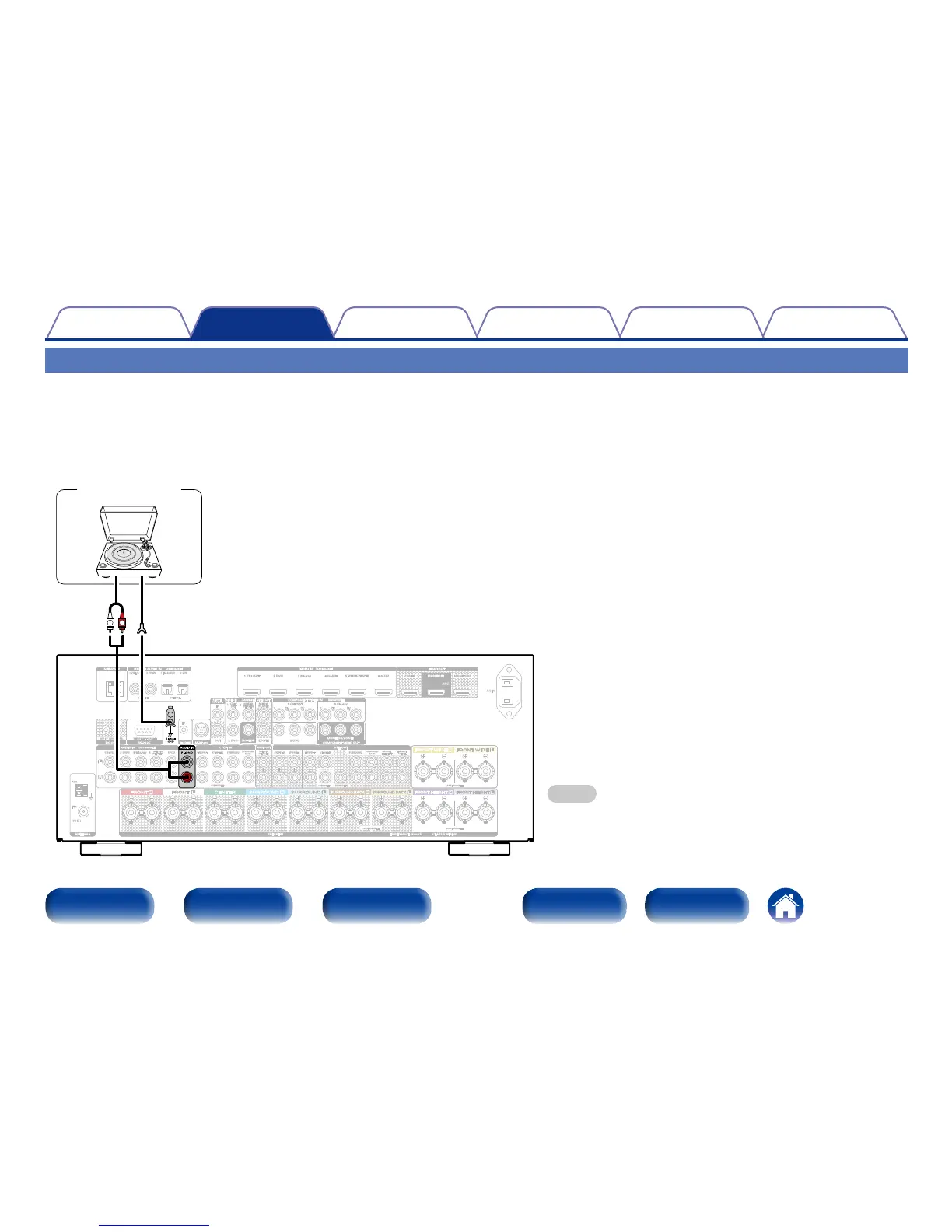

Connecting a turntable
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving
coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “PHONO” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
FRONT
SUBWOOFER
SURROUND
SURROUND
BACK
CENTER FRONT SURROUND
FRONT
HEIGHT
FRONT
WIDE
SURROUND
BACK
CENTER 1 CBL/SAT 2 DVD 3 Blu-ray
MEDIA
PLAYER
MEDIA
PLAYER
5 CD
4
AM
(75Ω)
FM
1
CBL/SAT
2
DVD
1
TV AUDIO
2 CD
1 CBL/SAT 2 DVD 3 Blu-ray 4 GAME 5 MEDIA PLAYER 6 AUX2
STRAIGHT CABLE DC12V 150mA MAX.
IN
P R /
C R
P B /
C B
Y
P R /
C R
P B /
C B
Y
CBL/
SAT
MEDIA
PLAYER
MEDIA
PLAYER
ZONE2
1 CBL/SAT
3 Blu-ray
2 DVD
1 3
IN
OUT
ZONE2 ZONE3
HDMI OUTNETWORK
RS-232CDC OUT FLASHER
REMOTE
CONTROL
VIDEO OUT
COMPONENT VIDEO OUT
7.1CH IN
AUDIO OUT
PRE OUT
M-XPort
ANTENNA
AC IN
DIGITAL AUDIO IN
(
ASSIGNABLE
)
COAXIAL OPTICAL
AUDIO IN
(
ASSIGNABLE
)
2 DVD
VIDEO IN
(
ASSIGNABLE
)
MONITOR
COMPONENT VIDEO IN
(
ASSIGNABLE
)
MONITOR/ZONE2
HDMI IN
(
ASSIGNABLE
)
CLASS 2 WIRINGSPEAKERS IMPEDANCE : 6～8Ω
SUBWOOFER1
SUBWOOFER2
ZONE2 MONITOR2
1
2
ASSIGNABLE ASSIGNABLE
ASSIGNABLE
ARC
MONITOR1
SIGNAL
GND
PHONO
AUDIO IN
GND
AUDIO
OUT
L
R
Turntable
(MM cartridge)
NOTE
•The ground line (SIGNAL GND) on this unit is not a safety ground. Note
that depending on the turntable, connecting the ground line may have
the reverse eect of increasing noise. In this case, it is not necessary
to connect the ground line.
