Mark optitherm 06 29 191 - Display Elements and Symbols

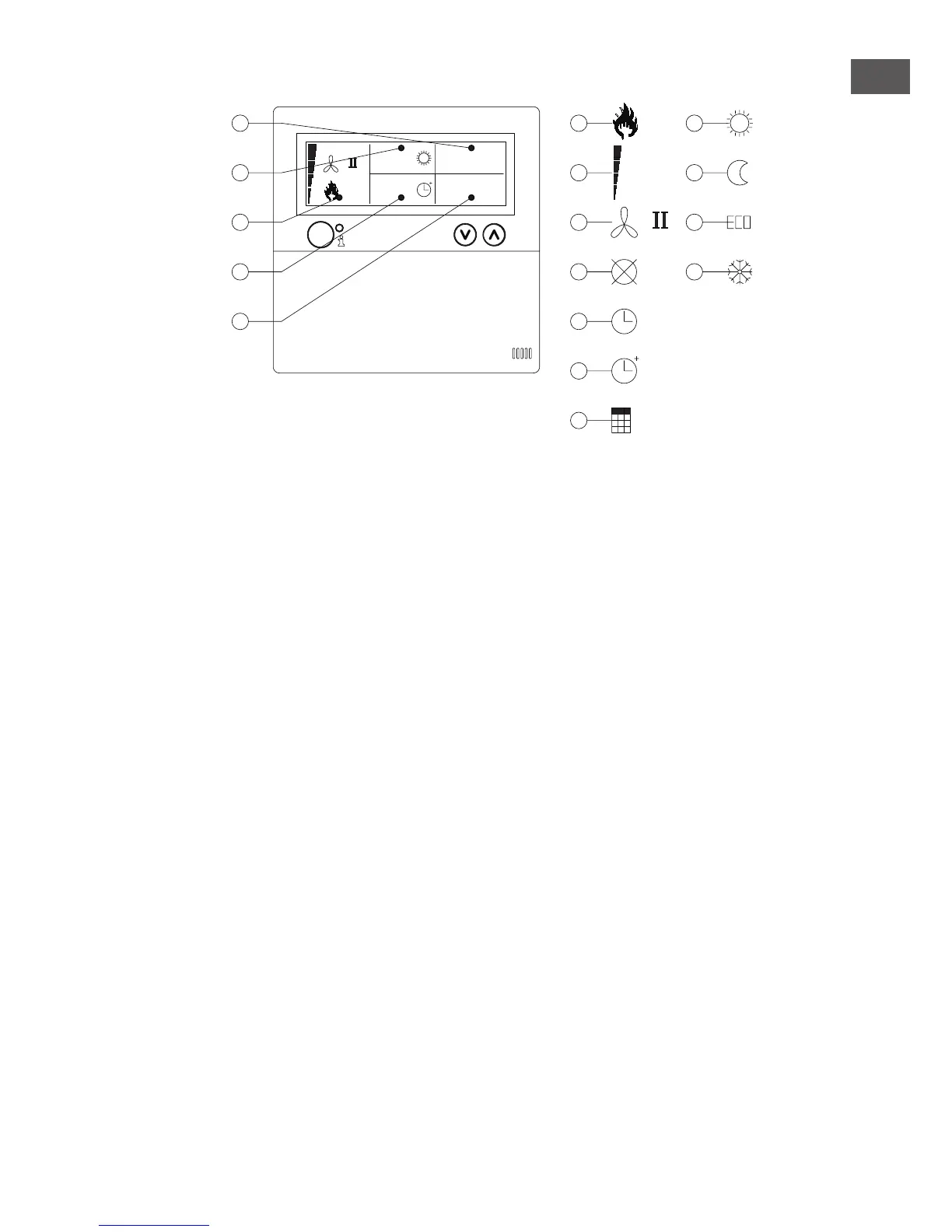

4.2 Explanation of display and symbols.
Display
A - Shows the measured room temperature.
B - Displays the desired room temperature.
Displays the mode of operation (DAY, NIGHT, ECO, FROST PROTECTION)
C - Indicates which functional mode is switched on (HEATING, VENTILATION),
if there is a heating request and of the Message
⦻
(clip 1 and 2 on the air heater dis-
connected) is active.
D - Reason for the mode of operation.
(clock switch, overtime timer or exception day)
E - Shows the actual date and time
Symbols
F - Heating mode switched on symbol
G - Heating request symbol
H - Ventilator switched on symbol
I or II indicates if the ventilator is in high or low position (if applicable).
I - Message OFF (clip 1 and 2 on equipment disconnected)
J - Clock switch active symbol
K - overtime timer active symbol
(running time indicates when this function will be switched off again)
L - Exception day active symbol
M - Day temperature symbol (factory setting 18 °C)
N - Night temperature symbol (factory setting 15 °C)
O - Eco temperature symbol (factory setting 8 °C)
P - Frost protection symbol (factory setting 5 °C)
9
EN
B
C
A
D
E
06 29 191
OptiTherm
12.0
08:00
01-03-2011
18.0 °C
00:15
F
G
H
IP
O
N
M
K
L
01:00
J
