MAC One User Manual Rev. B 45
Ludicrous DMX Mode
108 DMX channels
Channel
DMX Value
Function
Fade
type
Default
value
Channels 1–36 as in Basic Mode
Backlight RGB (channels 30-32) is merged with backlight pixel control (channels 37-108)
using HTP.
37
0–255
Backlight Pixel 1 Red
0 → 100%
Fade
0
38
0–255
Backlight Pixel 1 Green
0 → 100%
Fade
0
39
0–255
Backlight Pixel 1 Blue
0 → 100%
Fade
0
…
…
…
106
0–255
Backlight Pixel 24 Red
0 → 100%
Fade
0
107
0–255
Backlight Pixel 24 Green
0 → 100%
Fade
0
108
0–255
Backlight Pixel 24 Blue
0 → 100%
Fade
0

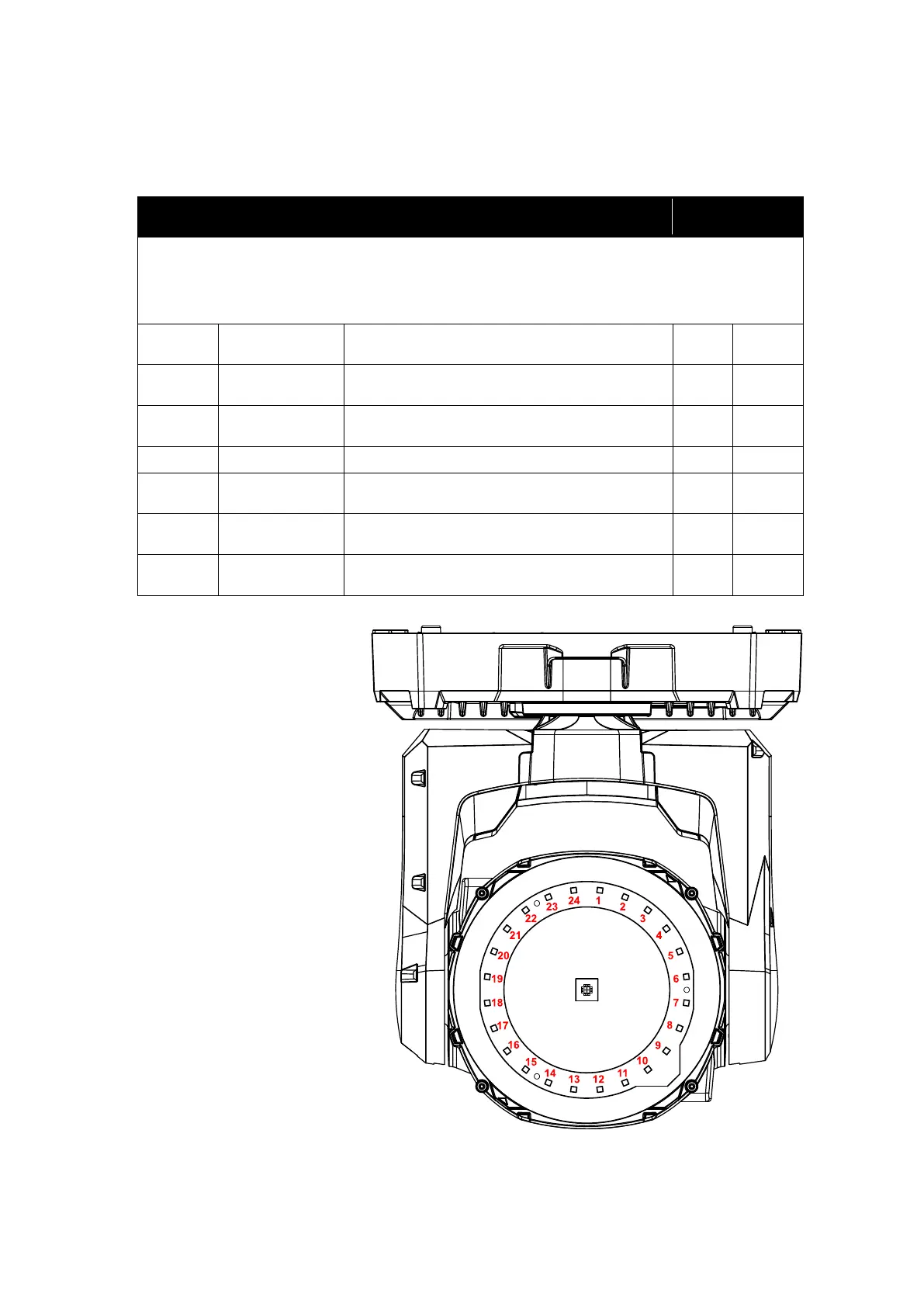

Pixel mapping in Ludicrous
Mode
Ludicrous DMX mode gives
individual control of the Backlight
pixels. These are numbered as
shown in the drawing on the right
with the fixture in hanging
orientation, pan at 50% and display
and connectors at back of fixture.
MAC One Backlight pixel layout
