3.3 Instrument rear
1
2
3

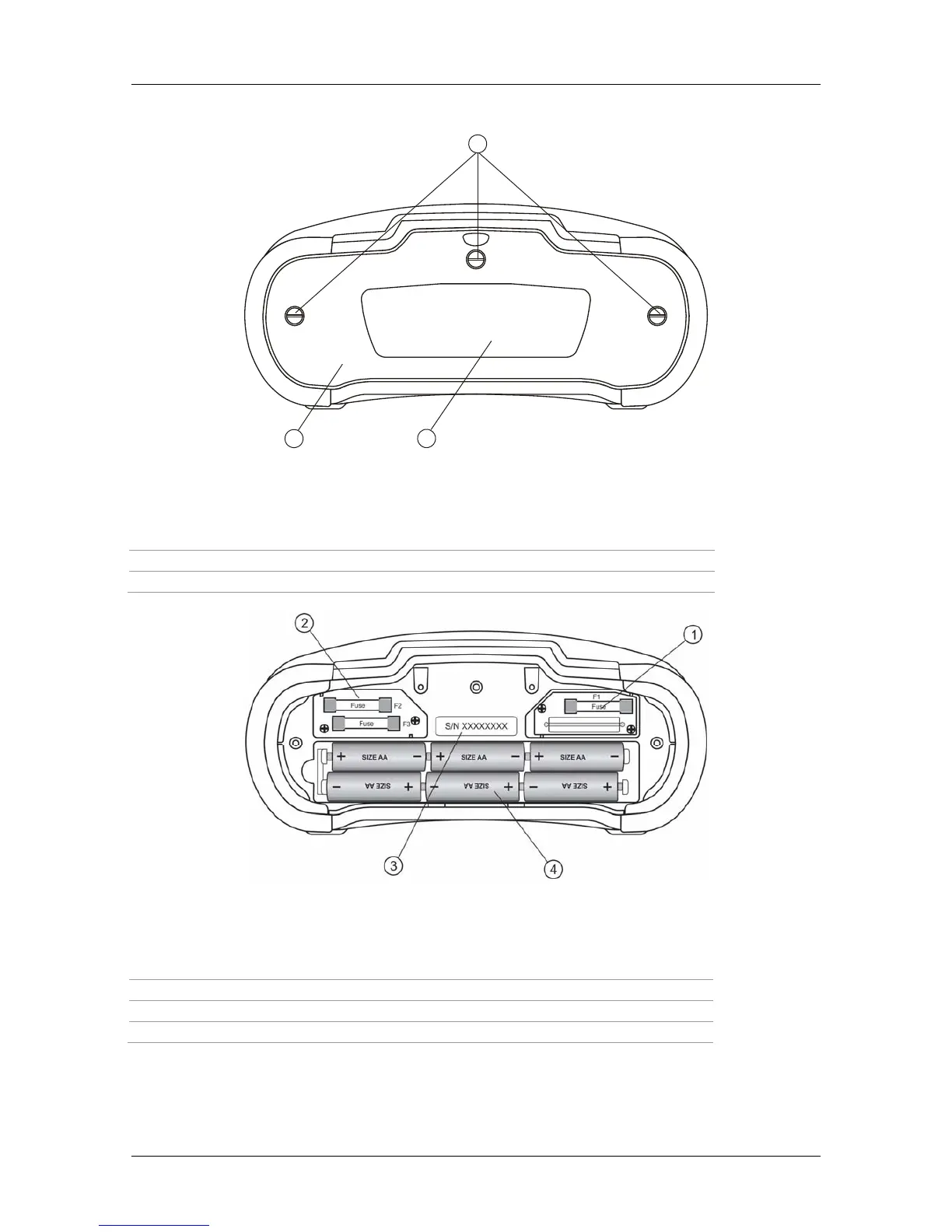

Figure 3.3: Back panel
Legend:
1
Battery / fuse compartment cover
2
Back panel information label
3
Fixing screws for battery / fuse compartment cover
Figure 3.4: Battery and fuse compartment
Legend:
1
Fuse F1
M 315 mA / 250 V
2
Fuses F2 and F3
F 4 A / 500 V (breaking capacity 50 kA)
3
Serial number label
4
Batteries
Size AA, alkaline / rechargeable NiMH
