4.7 Installation step-by-step
The drawings used in this section are based on the 3000W model. Where necessary, the difference is
indicated.

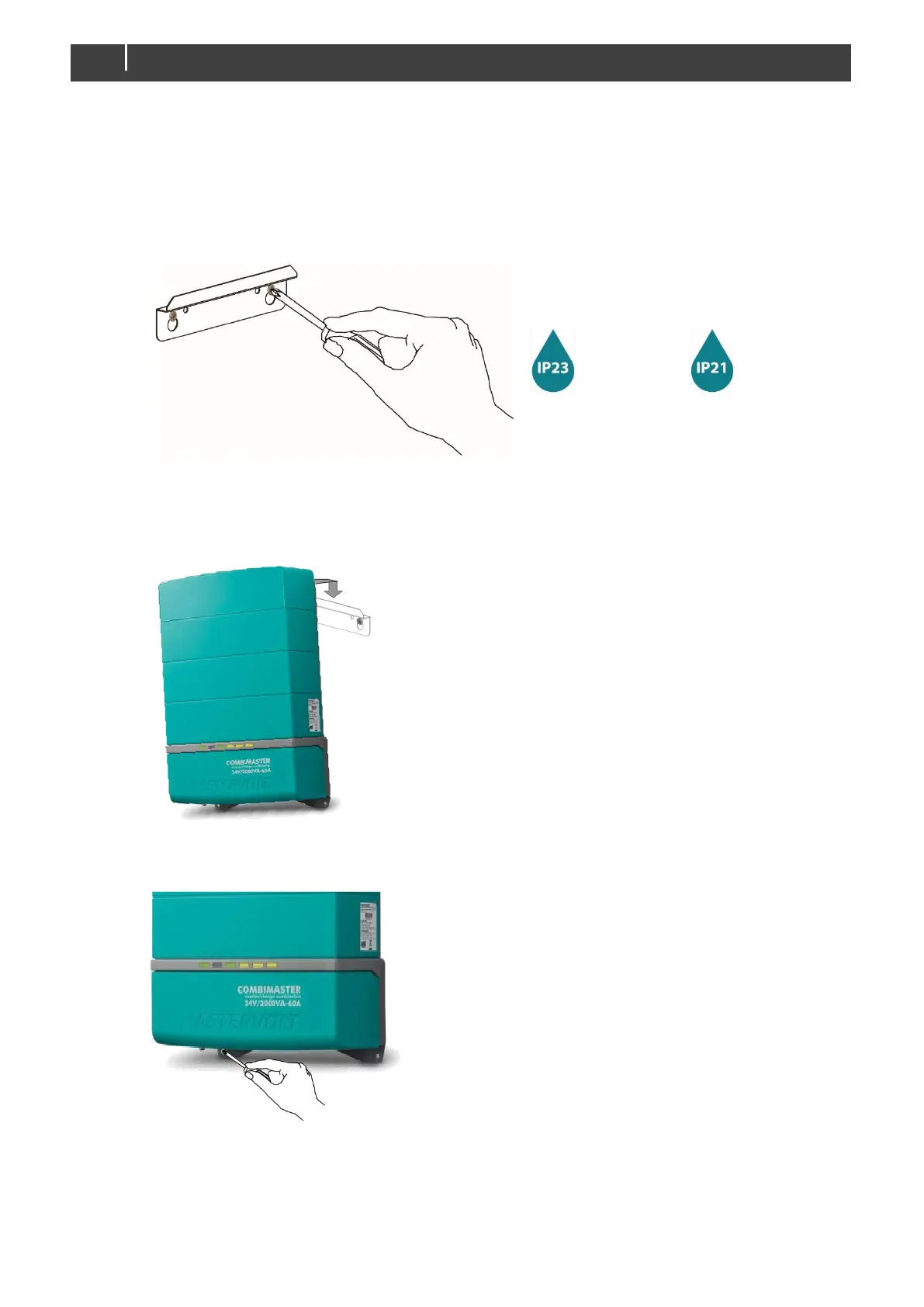

Step 1. Turn off the electrical power.
Step 2. On a solid surface, mark the holes for the mounting bracket and secure the mounting bracket
to the surface.
Wall
mounted
Tabletop
mounted
Note: Make sure that the mounting surface and material can support the weight of the
CombiMaster Inverter/Charger.
Step 3. Place the CombiMaster Inverter/Charger over the mounting bracket and then downwards
until it snaps into place.
Step 4. Secure the CombiMaster Inverter/Charger to the surface by fastening two screws at the lower
side of the case as well.
