CombiMaster 120V Series
– User and Installation Manual
6 OPERATION
6.1 Switching on / charge only
The "On/Charge only"-switch on the bottom of the CombiMaster Inverter/Charger has two positions:
• On: Inverter and charger on (I)
• Charge only: Charger on, inverter off ().
Note: When the "On/Charge only"-switch is in this position (), it consumes 1mA DC power when
not connected to AC. Switching off the inverter remotely, increases the DC power
consumption. If it is necessary to put the
CombiMaster Inverter/Charger out of operation, for
winter storage for example, it is strongly recommended to switch the inverter off by the
"On/Charge only"-switch
6.2 Status LEDs

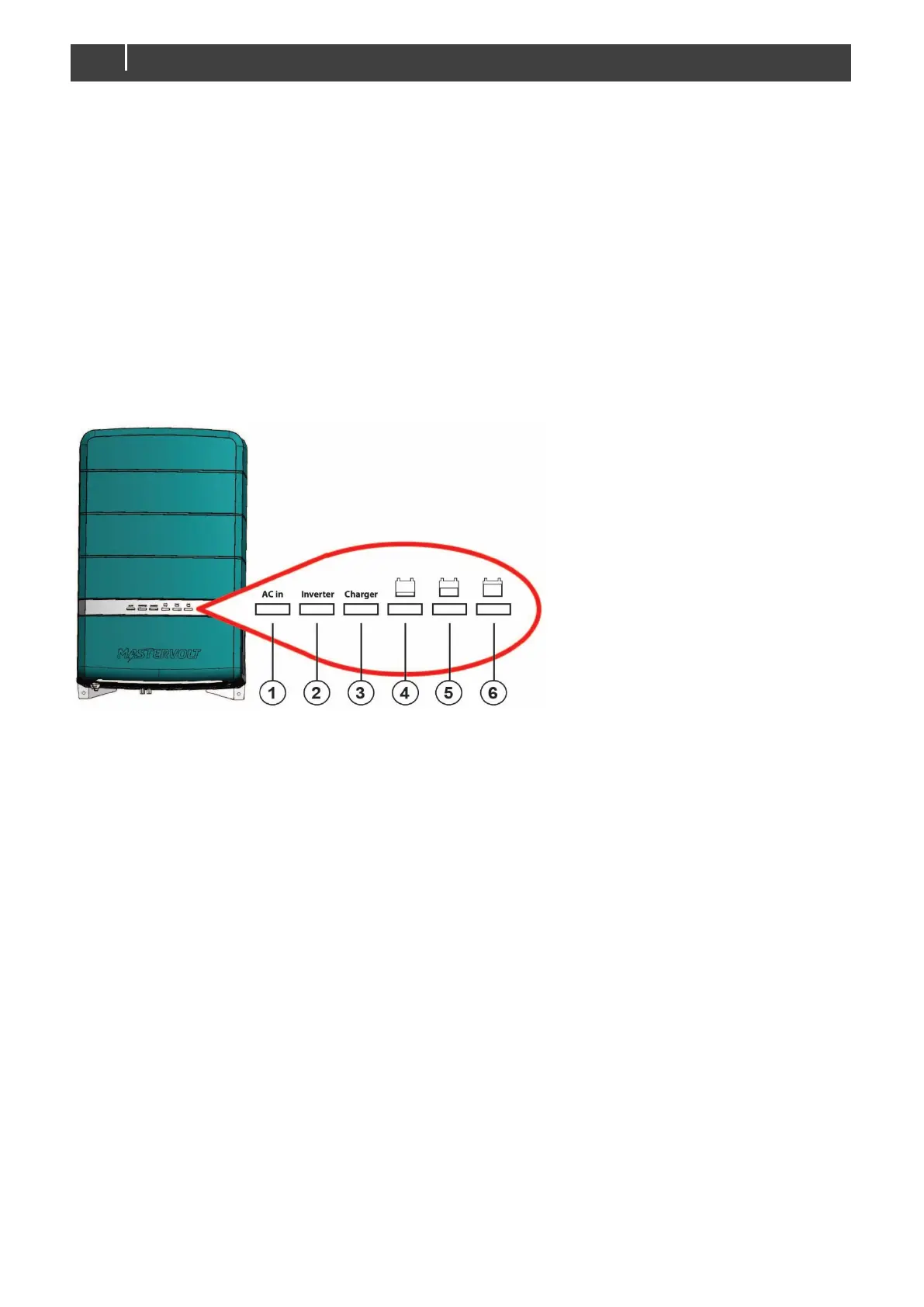

Figure 7: status LEDs
Off:
-
: No AC input
- : Inverter off
- : Charger off
Green on:
-
: AC input OK
- : Inverter on
- : Charger on
- : Charger in bulk phase
- : Charger in absorption phase
- : Charger in float phase
- +: AC IN Support mode
Green blinking:
-
: Inverter Energy save mode active
Green blinking for 5 seconds during start-up:
-
: Single-phase standalone unit
- : Single-phase parallel unit
- : Split-phase L1 unit
- : Split-phase L2 unit
Red on:
-
: AC input out of range
-
: Battery voltage low warning/shutdown
-
: Battery voltage high causing shutdown
Red blinking:
˗
: AC output overload
˗
+: Shutdown by any other error, including
overtemperature of the CombiMaster
Inverter/Charger
-
: Battery temperature (sensor) error
Refer to the fault-finding table on page 38 for
possible causes of problems.
