CombiMaster 120V Series –
User and Installation Manual

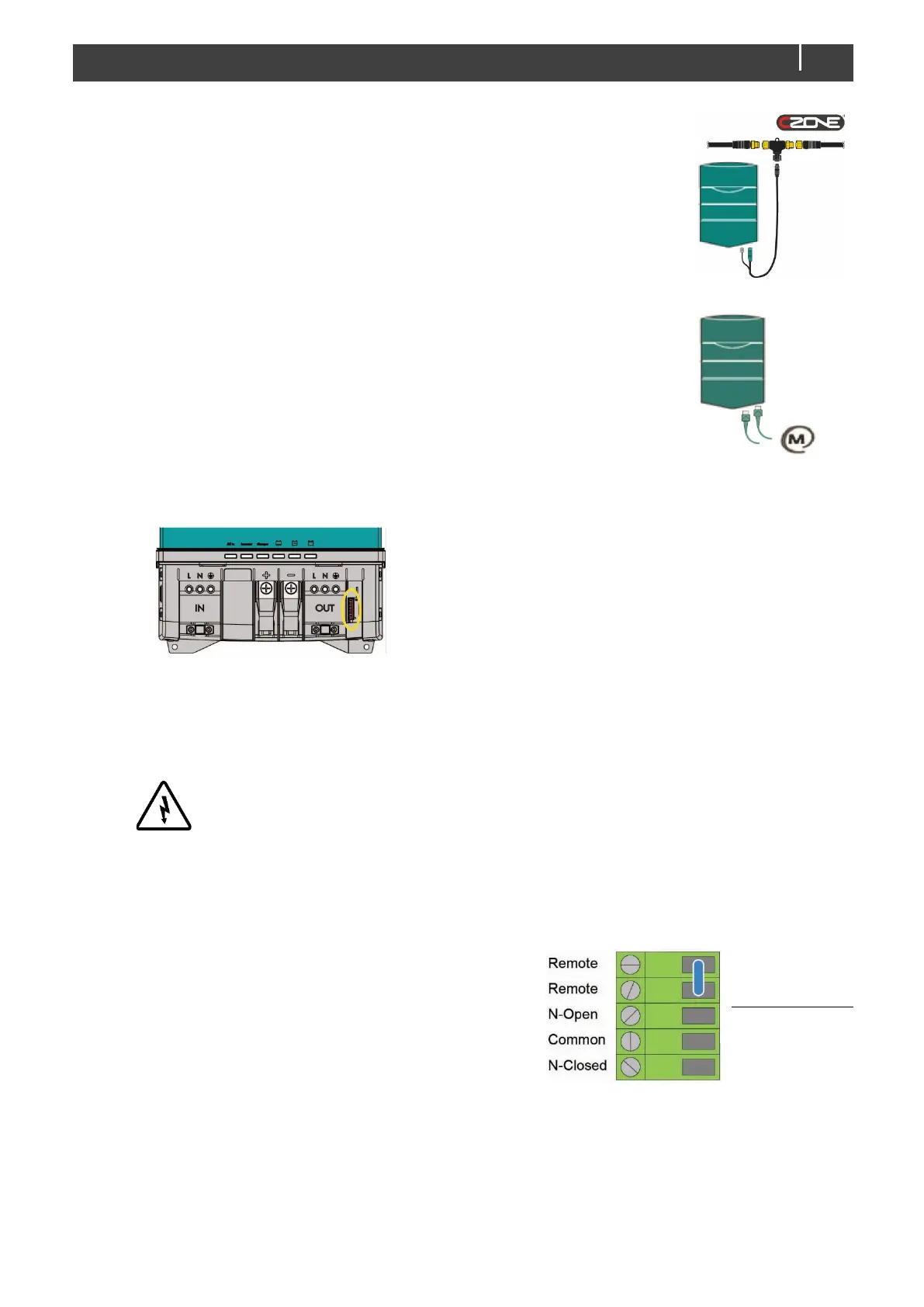

Adding the CombiMaster Inverter/Charger to a CZone network
1 Disconnect the backbone at the closest backbone connection
and add in a tee connector.
2 Reconnect the backbone connection with the new tee connector
in place.
3 Connect the RJ45 CZone drop cable to the black coupler on the
tee and then plug the connectors into either of the
communication ports of the CombiMaster Inverter/Charger.
Adding the CombiMaster Inverter/Charger to a MasterBus
network
1 Disconnect a MasterBus cable or Terminator from the closest
MasterBus device and connect it to the CombiMaster
Inverter/Charger.
2 Connect the new MasterBus cable to the other MasterBus device
and then connect to the CombiMaster Inverter/Charger.
3 Ensure that the network is properly terminated.
Step 12. Option: use a small screwdriver to change DIP switch settings. See section 5.1 on page 25.
Note: if added to a CZone network, the DIP switches are
used to set the CZone address.
Step 13. Option: connect external alarm or remote switch input. See section 4.8.
Step 14. Set the desired output voltage and other configuration settings using a remote control panel
or the DIP switches, see chapter 5 on page 25.
Step 15. Check all wiring. If all wiring is OK: open the safety switch (if available) and place the inverter
fuse.
When the fuse is placed, internal capacitors may cause a spark. This is normal
Step 16. Close the connection compartment and fix the screws at the bottom.
Step 17. Close the safety switch (if available) and switch on the CombiMaster Inverter/Charger.
4.8 Accessories connector (dry contacts)
The screw terminal at the bottom side of the CombiMaster
Inverter/Charger, offers the following contacts:
Remote
switch input
Alarm output
