– User and Installation Manual
5.3 CZone configuration
The CZone
®
network is an NMEA 2000-compliant CAN-based system. Open the CZone Configuration
Tool on a Windows laptop or notebook connected to the CZone network. Either do the configuration
while connected to the network or use a prepared configuration file (.zcf). The CZone Configuration
Tool can be downloaded from the CZone Portal.
Adding the CombiMaster 120V Series to a CZone system configuration
Precondition: This section assumes that a CZone system is already configured and the CZone
Configuration Tool is open.

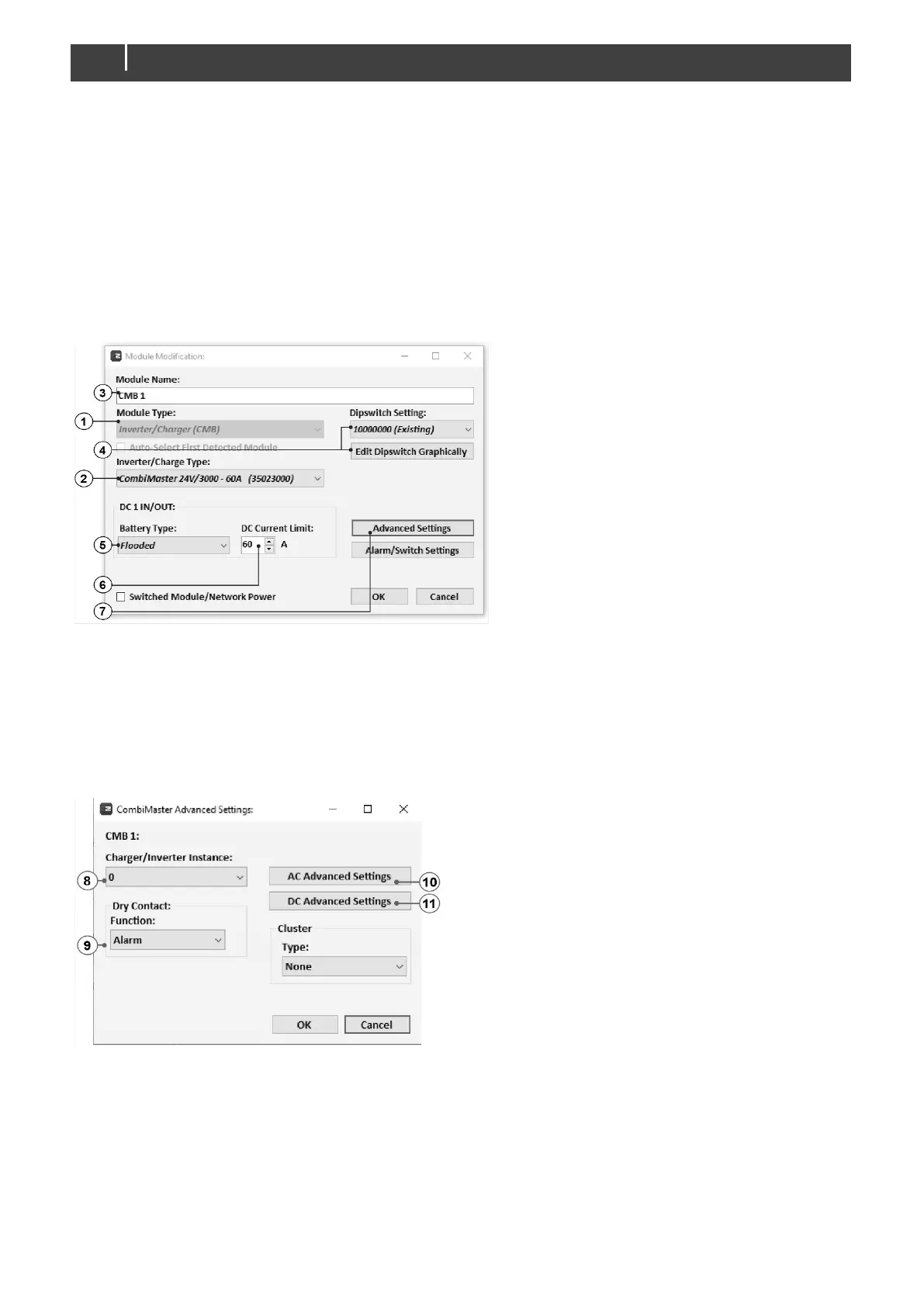

In the CZone Configuration Tool, from the Modules tab, press the Add button.
1. From the Module Type drop-down list
select Inverter/Charge.
2. From the Inverter/Charge Type drop-
list select the required model and continue
with the following steps.
3. Enter an understandable Module Name.
4. Each device on a CZone network has a
unique CZone address; the Dipswitch.
This number must match the physical DIP
switch settings. When connected to the
system: either select one from the drop-
down list or edit graphically.
5. Select the Battery Type.
6. Enter the DC Current Limit.
7. Options:
- Press OK to save the settings and exit.
- Press Alarm/Switch Settings and continue with step 16.
- Press the Advanced Settings button and continue with the next step to configure advanced
options.
8. NMEA2000 Instances are used to
differentiate between multiple monitoring
sources.
9. From the Function drop-down list, select
the required Dry Contact alarm function:
- Power level (inverter output power level);
- Alarm (has no additional settings).
10. Option: press AC Advanced Settings
and go to step 12.
11. Option: press DC Advanced Settings
and go to step 14.
Or press OK to save the settings and return to
the Module Modification window.
Cluster settings are described in section Step
11. on page 51.
