CombiMaster 120V Series
User and Installation Manual
33

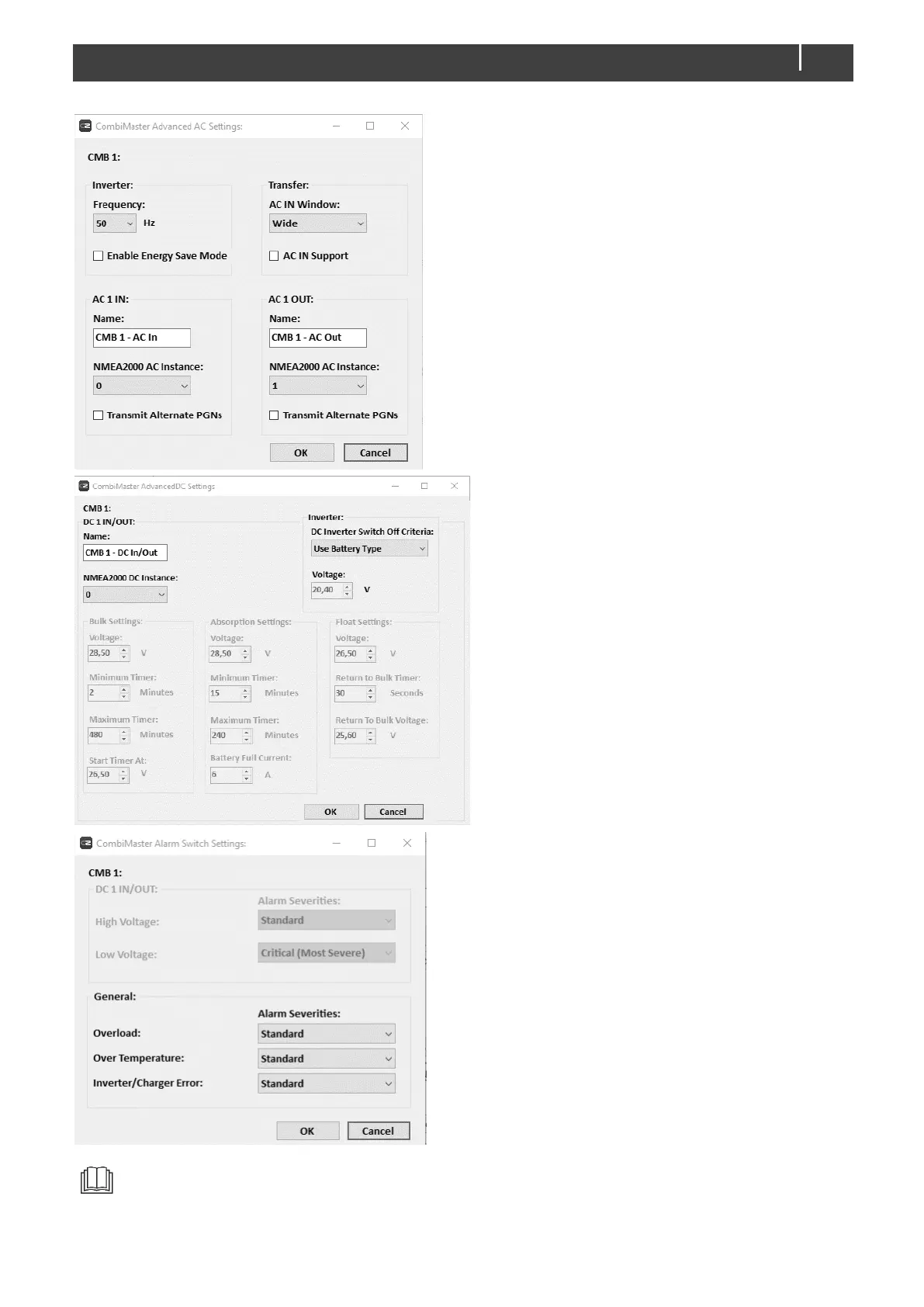

12. Check and adjust the AC settings.
In Energy Save Mode the power
consumption will be reduced when there
is no load on AC OUT. Please note that
small loads, such as the clock on a
microwave oven, are most likely not to
work in this mode.
See section 3.2 for a description of AC
IN Support.
For a description of instances and PGNs,
please refer to the CZone Configuration
Tool Instruction manual. Supported
PGNs are listed in section 9.4.
13. Press OK to return to the Advanced
Settings window.
14. Check and adjust the DC settings. Note
that this is only possible if in step 5 the
option User defined is selected.
15. Press OK to return to the Advanced
Settings window
16. Select the required Alarm Severities.
17. Press OK.
Optionally configure digital switching by
adding Circuit Controls in the Circuits tab (e.g.
a battery low switch can be used to start a
generator). Write the configuration to the
network to use the new configuration.
For more information, please refer to the CZone
®
Configuration Tool Instruction manual.
Also see section 5.2 for a description of the same settings in MasterAdjust.
