CombiMaster 120V Series –
User and Installation Manual
25
5 SETTINGS
Adjustment of the settings of the CombiMaster Inverter/Charger can be made in two different ways:
• By means of DIP switches.
• From a laptop connected to the CombiMaster Inverter/Charger via a Mastervolt USB Interface. Some
settings, like the AC IN Limit setting for example, can only be changed in this way.
CAUTION!
Invalid settings of the CombiMaster Inverter/Charger can cause serious damage to your
batteries and/or the connected load! Adjustment of settings must be carried out by authorized
personnel only.
5.1 DIP switch settings
Use a small screwdriver to carefully set the required settings.
In a CZone network:
DIP switches 1 and 2 OFF.
DIP switches 3 to 10 must match the unique address used in
the CZone network; the dipswitch (see the CZone
Configuration Tool Instructions manual). At least one of DIP
switches from 3 to 10 must be ON.
In a MasterBus network:
DIP switch 1
ON.
DIP switch 2:
ON = MasterBus Powering on
OFF = MasterBus Powering off.

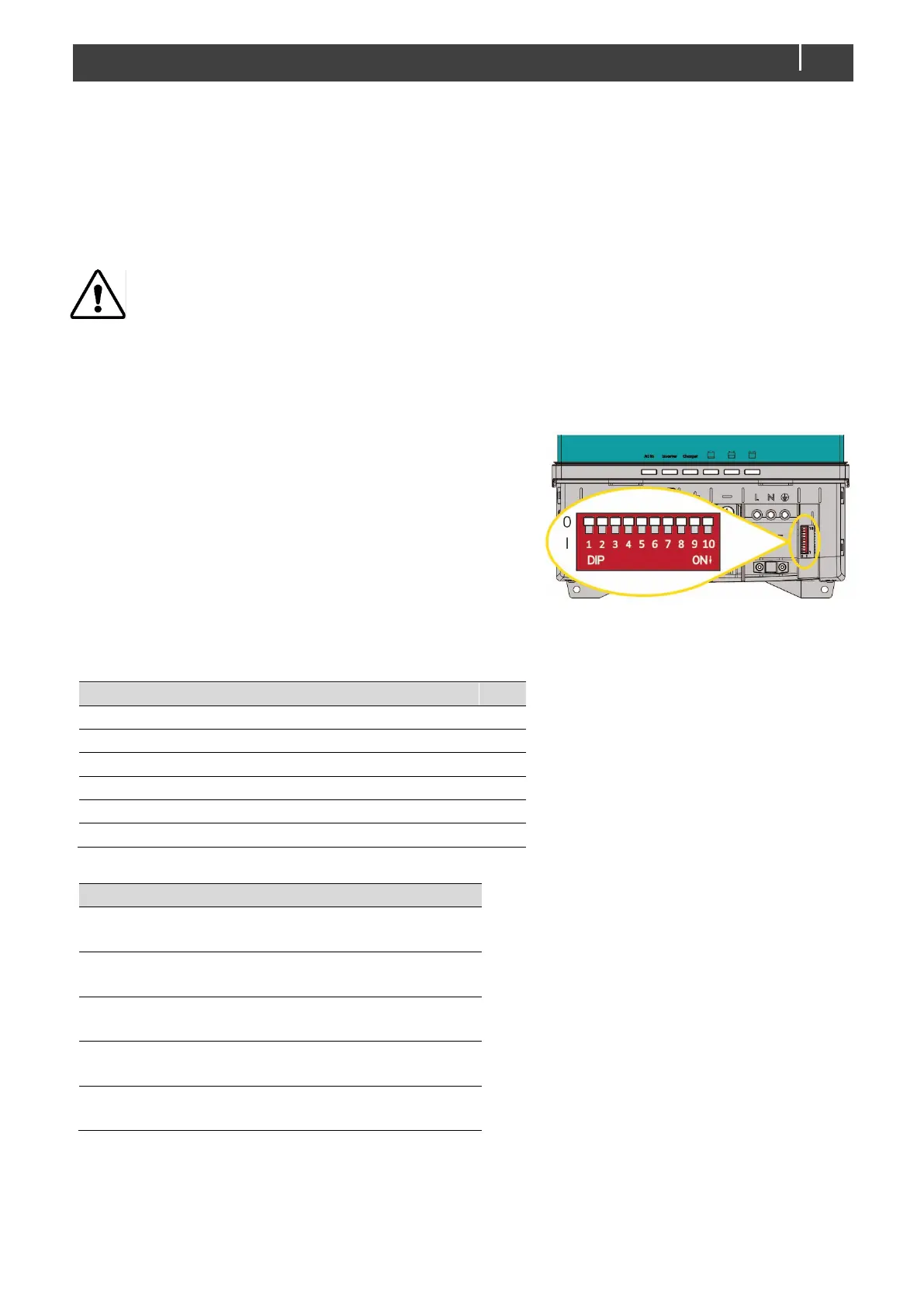

Figure 6. DIP switches (factory settings)
DIP switches 3 to 5 are used for battery type selection:
DIP switch
3
4
5
Configurable via MasterAdjust (Flooded)
1
0
0
0
Flooded (fixed)
0
0
1
AGM (fixed)
0
1
0
Gel (fixed)
0
1
1
MLI (fixed)
1
0
0
Constant voltage (13.25V)
2
1
1
1
The following table lists the settings for DIP switches 6 to 10.
DIP switch
6
7
8
9
10
Inverter frequency 60Hz
Inverter frequency 50Hz
0
1
AC input support mode off
AC input support mode on
0
1
AC voltage input window wide
AC voltage input window narrow
0
1
Energy saving mode off
Energy saving mode on
0
1
Parallel operation off
Parallel operation on*
0
1
* Parallel configuration applicable to models 3500W, 4500W, 5000W only.
1
If DIP switches 3, 4 and 5 are OFF,
the settings suit a Flooded battery
but can be changed in MasterAdjust.
2
Constant voltage has no temperature
compensation.
