48
CombiMaster 120V Series
– User and Installation Manual
7.6.4 Network wiring of two units in split-phase with two units in parallel

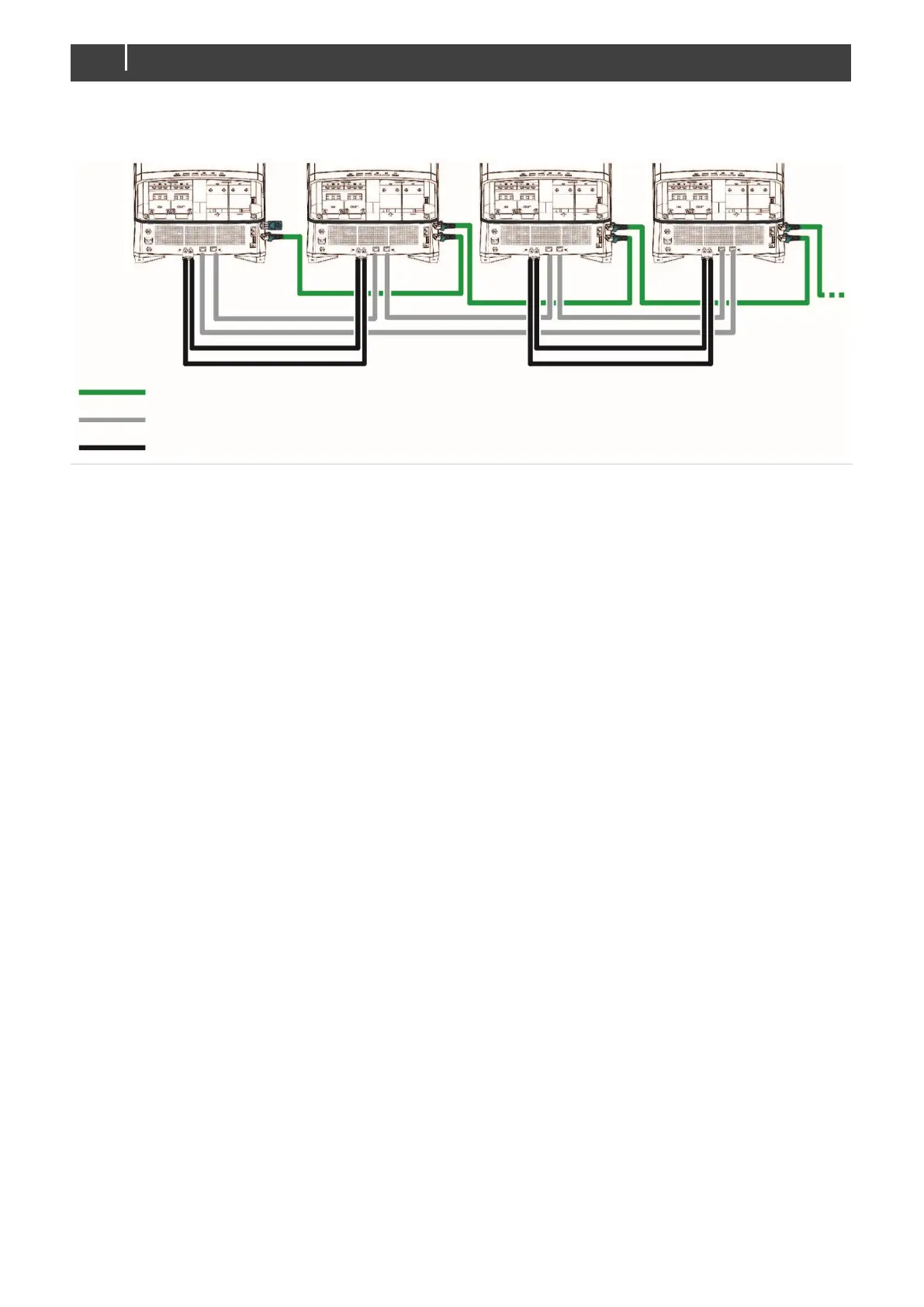

Figure 21: Two units in split-phase and two in parallel – MasterBus network wiring
* In case of a CZone network, connect drop cables instead of MasterBus cables. Plug the connectors
into either of the ports. In case of a MasterBus network, the MasterBus Terminator may be located
somewhere else in the network. Ensure that the MasterBus or CZone network is properly terminated.
7.7 Configuration and initial start-up
There are three methods of configuring the CombiMaster Inverter/Charger units:
• DIP switches; for a single-phase parallel configuration in a MasterBus system only
• MasterAdjust
• CZone Configuration Tool
MasterBus cables* (
GREEN
)
Communication cables (
GRAY)
Current Sharing cables (
BLACK)
Primary (L1)
Replica 1 (L1)
Replica 2 (L2)
Replica 3 (L2)
