• Connect the AC output L1, L2, N and PE of each unit in split-phase by means of a busbar.
• The AC output of each unit must be protected by means of properly sized circuit breakers (85A max)
that switch off simultaneously L1, L2 and Neutral.

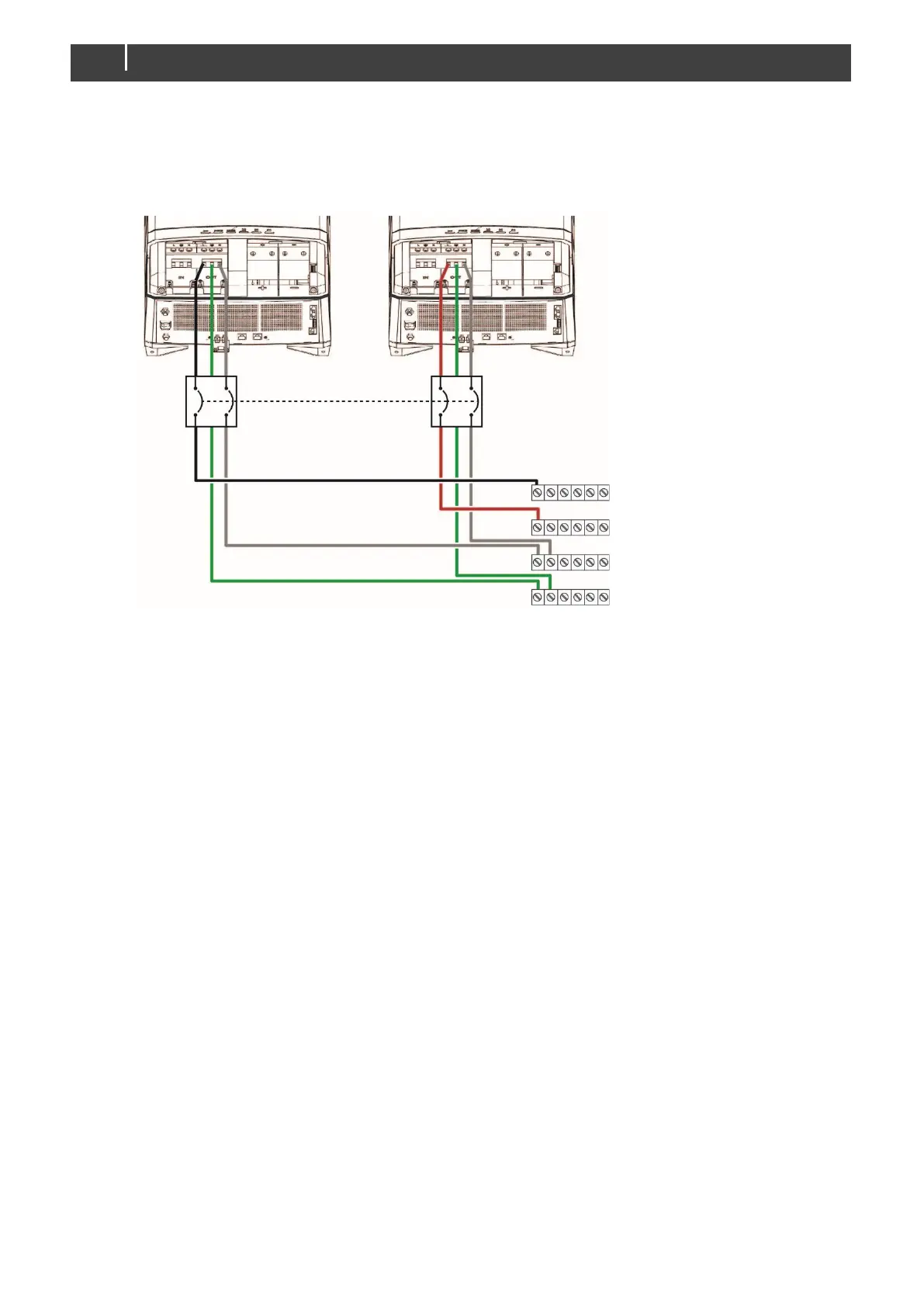

Figure 15: wiring split-phase AC OUT
• All AC loads must be protected by means of properly sized circuit breakers and a Ground Fault
Circuit Interrupter (GFCI).
Primary (L1)
Replica (L2)
L2 (RED)
N (WHITE)
PE (GREEN)
L1 (BLACK)
AC OUT
