Matrix SETU ATA211 V1 System Manual 23
6. Click on the link 'SIP Accounts' and enter the values of parameters such as Registrar Settings,
Authentication, Outbound Proxy, etc. in the respective fields as provided by your ITSP.
For more details on programming SIP Account Parameters, please refer topic “WAN Port” in Configuring
SETU ATA211.
7. Ensure that the SIP Account gets registered to the SIP server by checking the 'Status' page in the Jeeves
and respective SIP LED on the product (indication only for SIP1 or SIP2).
8. The set up is ready to make and receive VoIP calls. By default, all incoming calls will land on your phone
connected to the FXS port and the calls will be made from SIP account SIP1.
In this application LAN port of ATA211 can also be connected to a computer or to one of the port of another
LAN Network.
Peer-to-Peer Call Application
Corporate Offices can use ATA211 to communicate between their branch offices free of cost.
Residential Users can use ATA211 to communicate free of cost with their near and dear ones staying
geographically away from each other.
How to connect?
Corporate Users - Scenario1:
Suppose an organization has one branch office located overseas. The organization wants to establish a
mechanism whereby the calls between the branch office and head office become free. The organization can make
following set-up and configure the ATA211 as explained below.

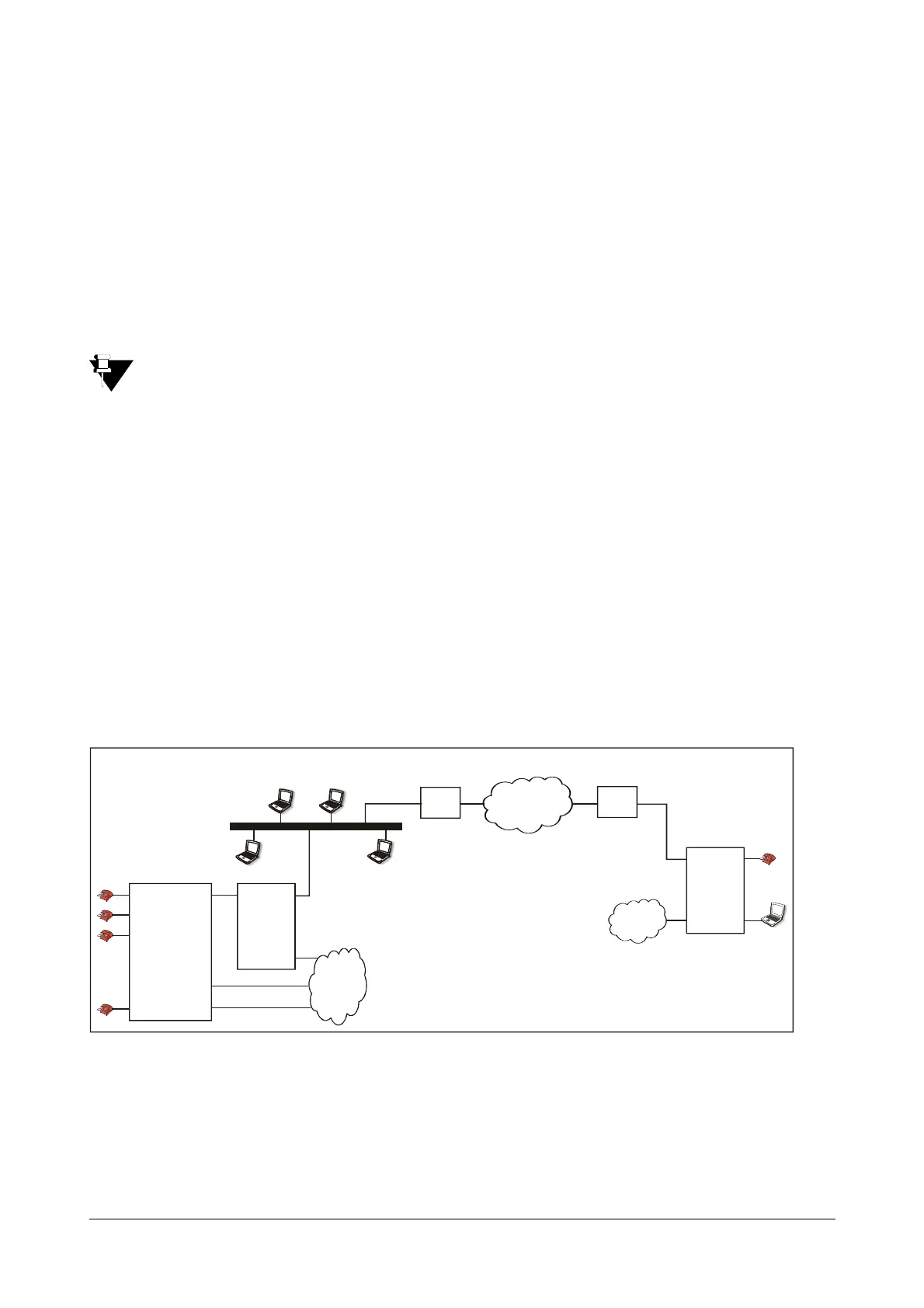

Figure 4: Corporate Users-Scenario 1.
At Head office:
• Connect the WAN port of ATA211 to one of the ports of the LAN switch of the organization as shown in the
figure above.
• Connect the FXS port of the ATA211 to the FXO port of the PBX used by the organization.
• Connect the FXO port of ATA211 to a line from PSTN.
• Power the ATA211 by connecting the Power Adaptor to the Power jack.
IP Network
Broadband
Modem/Router
Broadband
Modem/Router
WAN
ATA211
FXO1 FXS
FXO2
FXOn
FXS1
FXS2
FXS3
FXSn
PSTN
WAN
ATA211
LAN
Head Office Branch Office
PSTN
FXO
