16
Confi guring the Device
2. Attach the Removable Plate Carriage/Stage
1. Tilt the plate carriage/stage so that its front edge is
slightly higher than its back edge. Slide the notch in
the plate carriage piece up under the spring-loaded
plunger. Push the stage in gently and fi rmly until
the two posts on either side of the back edge of the
stage slide completely into the slots on the base unit.
Move the stage manually to the end of its rightward
movement.
2. If the stage is not level with the nozzle tips, fi rst try
pushing the stage toward the back of the unit to
ensure that it is pushed in completely. If it is still not
level, slide the stage under the nozzle tips, and put a
weight on the left (your left) side of the stage. Then
use a fl athead screwdriver to adjust the left nylon
screw in the middle back of the stage, tightening the
screw to push the stage down. Do the same with the
right side of the stage, adjusting the right hand nylon
screw. Check visually to ensure that the distance
between the stage top and the bottom of the front
nozzle tip is equal to the distance between the stage
top and the bottom of the back nozzle tip; that is,
bottoms of nozzle tips and stage top are parallel
from front to back.

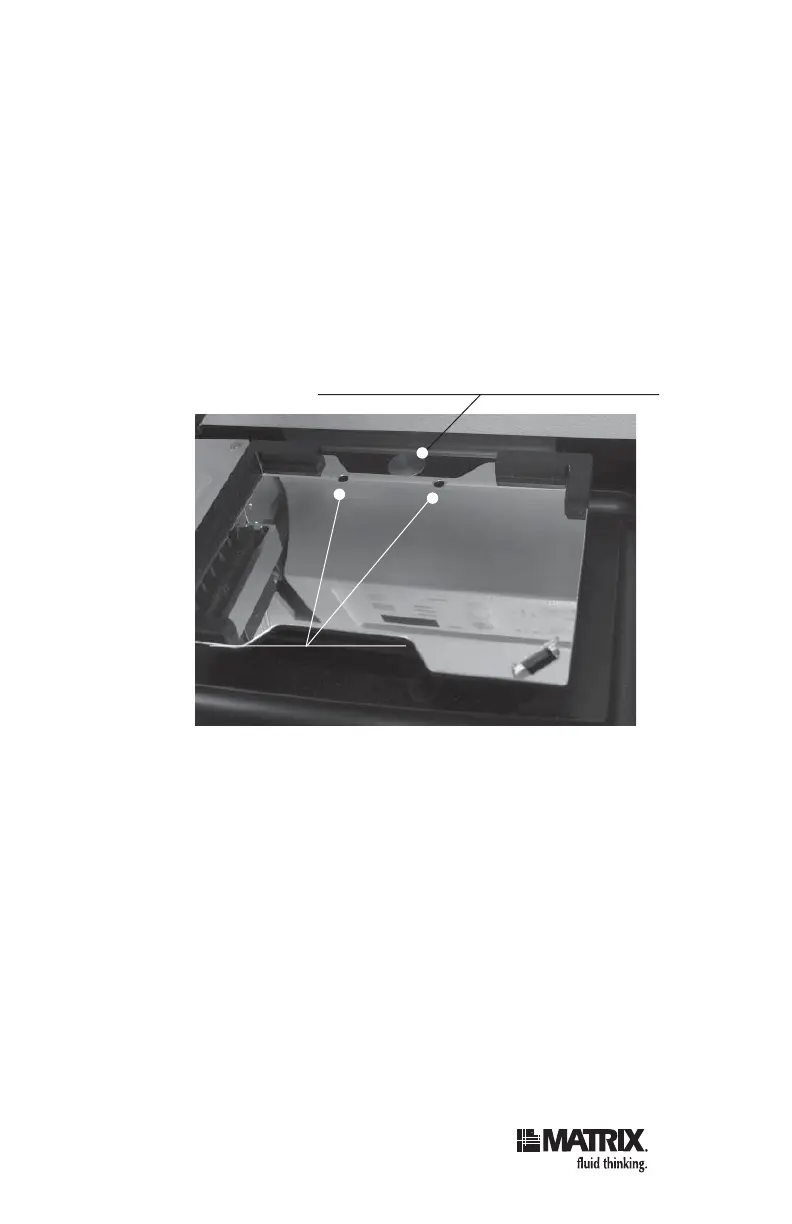

Nylon stage-leveling
screw are here, along back
edge of stage
Spring-loaded plunger is here behind removable
plate carriage/stage
