Confi guring the Device

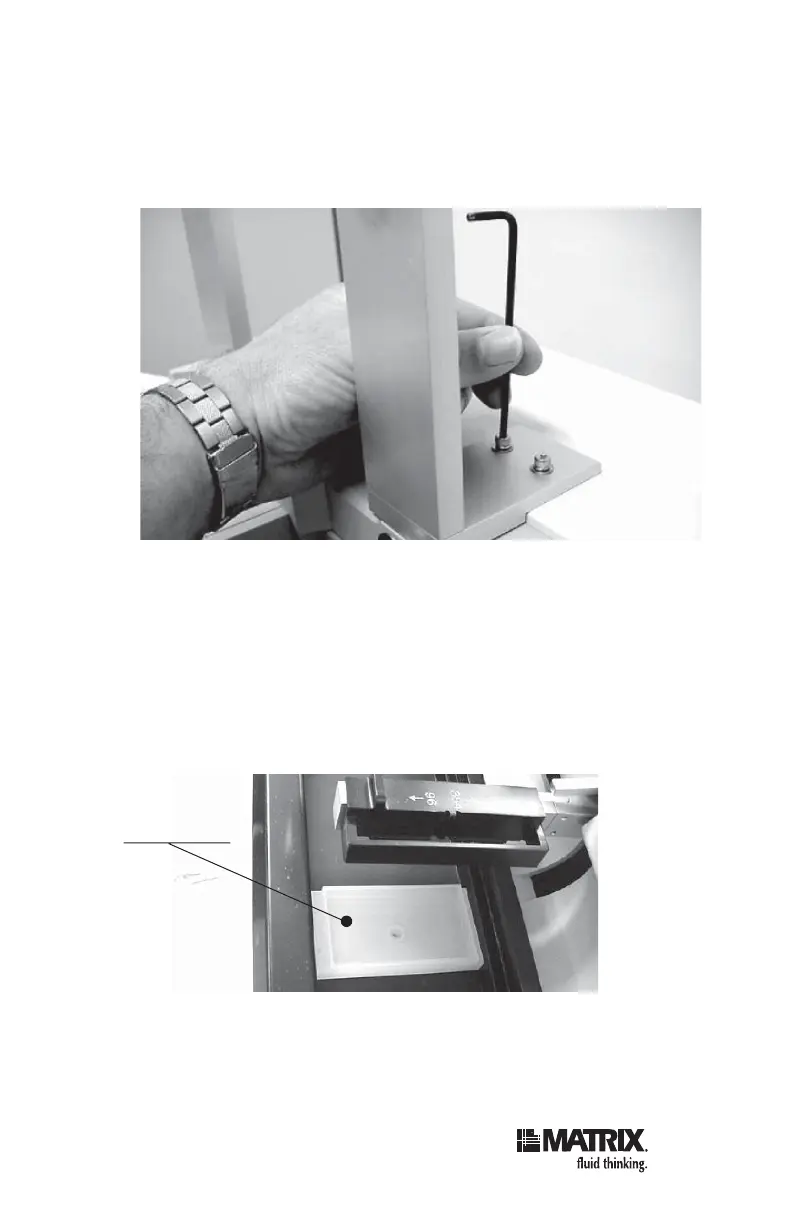

3. Attach the Chimney support brackets to the base of
the stacker unit in the space provided. Each bracket
comes with 2 Allen hex key screws.
4. Once the screws are in place, but not completely
tightened, put the stacker chimney in place. While it
is in place, tighten the hex screws.
5. Attach the tubing to the fl uid reservoir.
6. Insert the fl uid reservoir and screw it in place.
Note: Be sure that the waste reservoir lies fl at on the
bottom of the track. If it is not properly seated fl at, it will
interfere with the plate stage movement.
