Connectors on Matrox Solios eV-CLBL and Matrox Solios eV-CLFL boards 107

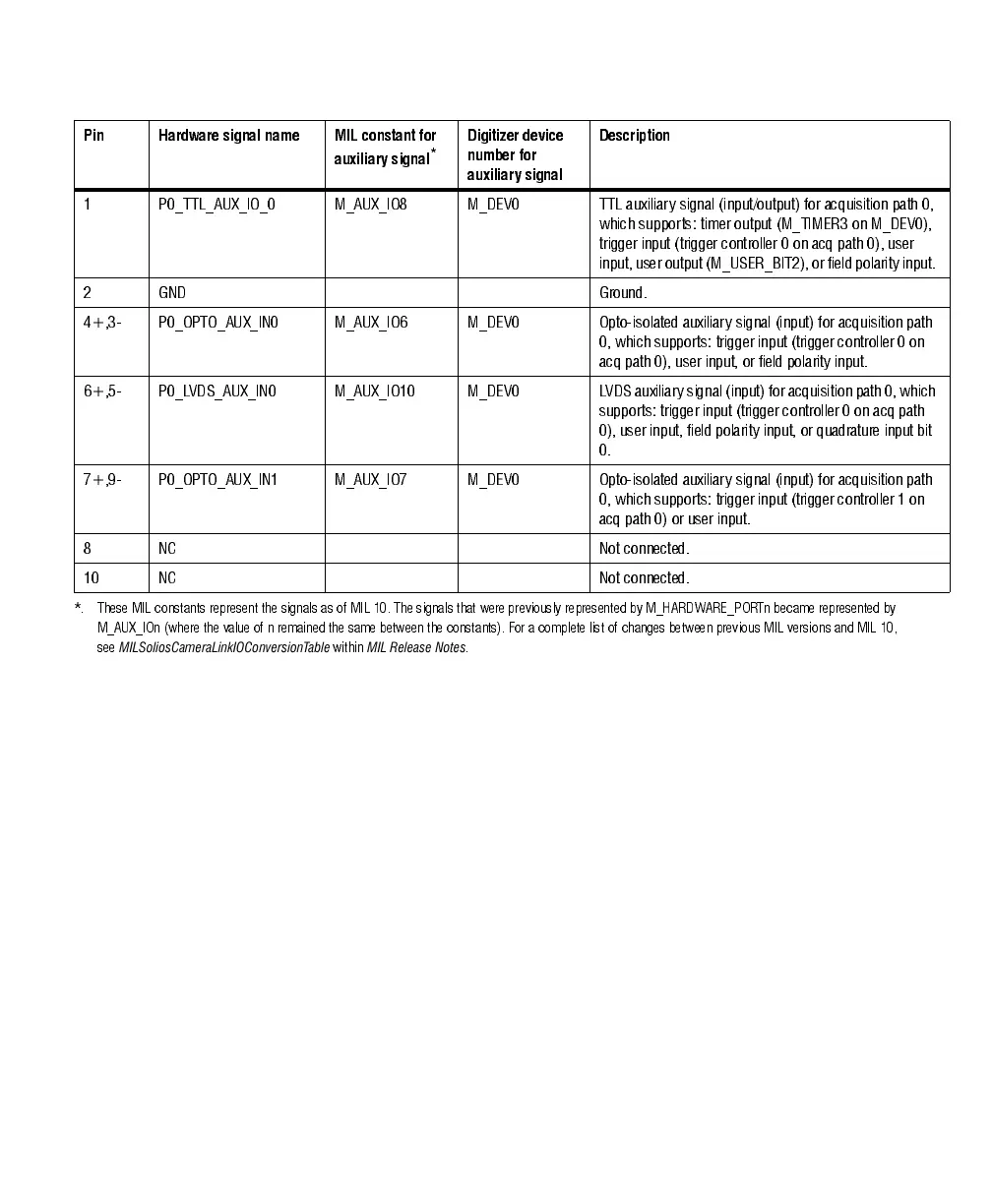

Pin Hardware signal name MIL constant for
auxiliary signal
*
Digitizer device
number for
auxiliary signal
Description
1 P0_TTL_AUX_IO_0 M_AUX_IO8 M_DEV0 TTL auxiliary signal (input/output) for acquisition path 0,
which suppor ts: timer output (M_TIMER 3 on M_DEV0 ),
trigger input (trigger controller 0 on acq path 0), user
input, us er ou tput (M_USER_BIT2), or fi eld polarity i nput.
2 GND Ground.
4+,3- P0_OPTO_AUX_IN0 M_ AUX_IO6 M_DEV0 Opto-isolated auxiliary signal (input) for acquisition path
0, which supports: trigger input (trigger controller 0 on
acq path 0), user input, or field polarity input.
6+,5- P0_L VDS_AUX_ IN0 M_AUX_IO10 M_DEV0 LVDS a uxiliary signal (input) f or acquis ition pa th 0, wh ich
supports: trigger input (trigger controller 0 on acq path
0), user input, field polarity input, or quadrature input bit
0.
7+,9- P0_OPTO_AUX_IN1 M_ AUX_IO7 M_DEV0 Opto-isolated auxiliary signal (input) for acquisition path
0, which supports: trigger input (trigger controller 1 on
acq path 0) or user input.
8 NC Not connected.
10 NC Not connected.
*. These MIL constants represent the signals as of MIL 10. The signals that were pr eviously represented by M_HARDWARE_PORTn became represented by
M_AUX_IOn (where the value of n remained the same between the constants). For a complete list of changes between previous MIL versions and MIL 10 ,
see
MILSoliosCameraLinkIOConversionTable within MIL Release Notes .
