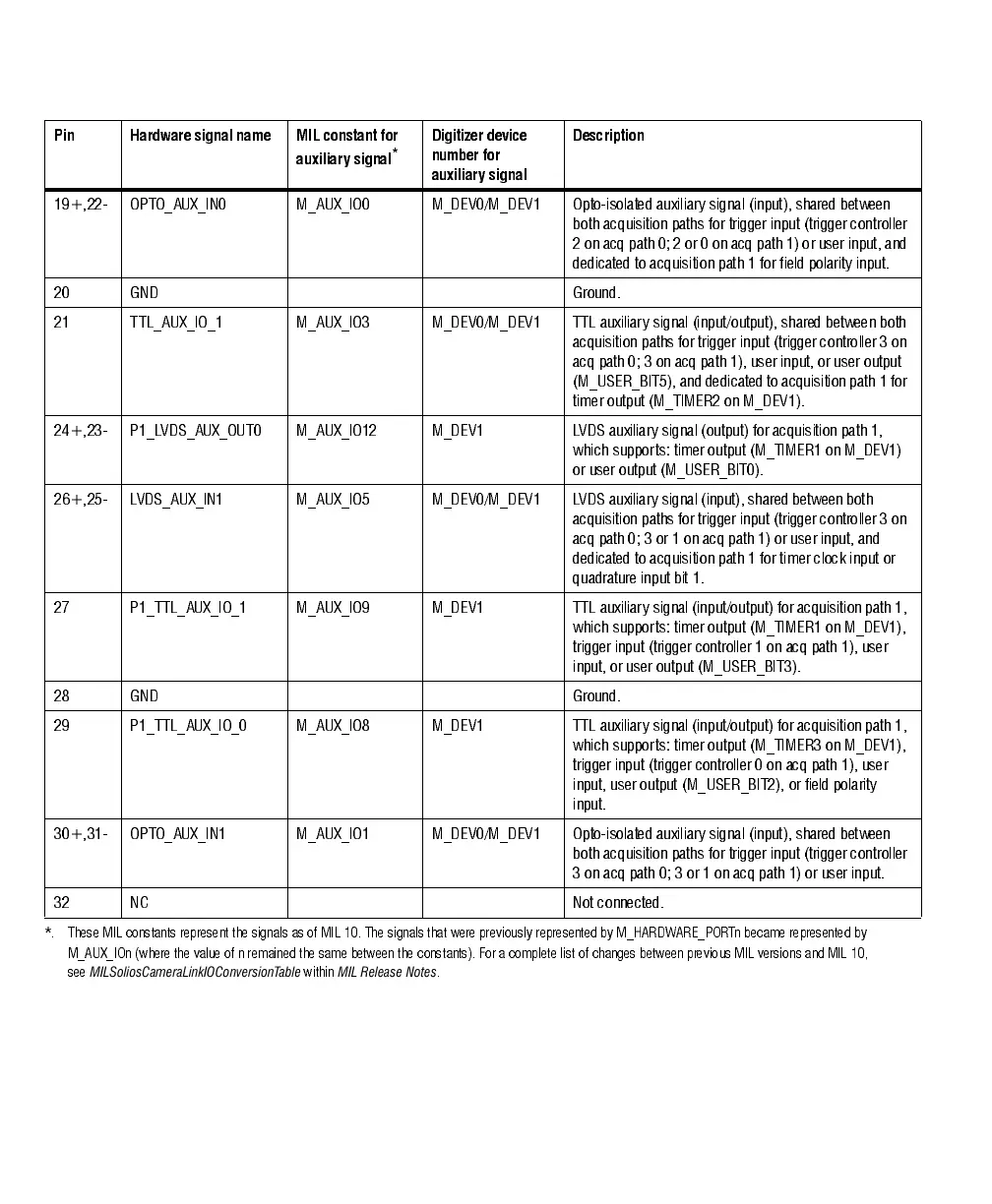

110 Appendix B: Technical information
19+,22- OPTO_AUX_IN0 M_AUX_IO0 M_DEV0/M_DEV1 Opto-isolated auxiliary signal (input), shared between
both acquisition paths for trigger input (trigger controller
2 on acq path 0; 2 or 0 on acq path 1) or user input, and
dedicated to acquisition path 1 for field polarity input.
20 GND Ground.
21 T T L_AUX_IO_1 M_AUX_IO 3 M_DEV 0/M _DEV 1 TTL auxiliary signal (input/ output), shared between both
acquisition paths for trig ger input (trigger controller 3 on
acq path 0; 3 on acq path 1), user input, or user out put
(M_USER_BIT5), and dedicated to acquisition path 1 for
timer output (M_TIMER2 on M _DEV 1).
24+,23- P1_LVDS_AUX_OUT0 M_AUX_IO12 M_DEV1 LVDS auxiliary signal (output) for acquisition path 1,
which supports: timer output (M_TIMER1 on M_DEV1)
or user output (M_USER_BIT0).
26+,25- LVDS_AUX_IN1 M_AUX_IO5 M_DEV0/M_DEV1 LVDS auxiliary signal (input), shared between both
acquisition paths for trig ger input (trigger controller 3 on
acq path 0; 3 or 1 on acq path 1) or user input, and
dedicated to acquisition path 1 for timer clock input or
quadrature input bit 1.
27 P1_TTL_AUX_IO_1 M_AUX_IO9 M_DEV1 TTL auxiliary signal (input/output) for acquisition path 1,
which supports: timer output (M_TIMER1 on M_DEV1),
trigger input (trigger controller 1 on acq path 1), user
input, or user output (M_USER_BIT3).
28 GND Ground.
29 P1_TTL_AUX_IO_0 M_AUX_IO8 M_DEV1 TTL auxiliary signal (input/output) for acquisition path 1,
which supports: timer output (M_TIMER3 on M_DEV1),
trigger input (trigger controller 0 on acq path 1), user
input, user output (M_USER_BIT2), or field polarity
input.
30+,31- OPTO_AUX_IN1 M_AUX_IO1 M_DEV0/M_DEV1 Opto-isolated auxiliary signal (input), shared between
both acquisition paths for trigger input (trigger controller
3 on acq path 0; 3 or 1 on acq path 1) or user input.
32 NC Not connected.
*. These MIL constants represent the signals as of MIL 10. The signals that were pr eviously represented by M_HARDWARE_PORTn became represented by
M_AUX_IOn (where the value of n remained the same betw een the constants). For a complete list of changes between prev ious MIL versions and MIL 10 ,
see
MILSoliosCameraLinkIOConversionTable
within
MIL Release Notes
.
Pin Hardware signal name MIL constant for
auxiliary signal
*
Digitizer device
number for
auxiliary signal
Description
