Connectors on Matrox Solios eV-CLBL and Matrox Solios eV-CLFL boards 99
To build your own cable, you can purchase the following parts:
These parts can be purchased from third parties such as Digi-Key Corporation
(www.digikey.com).

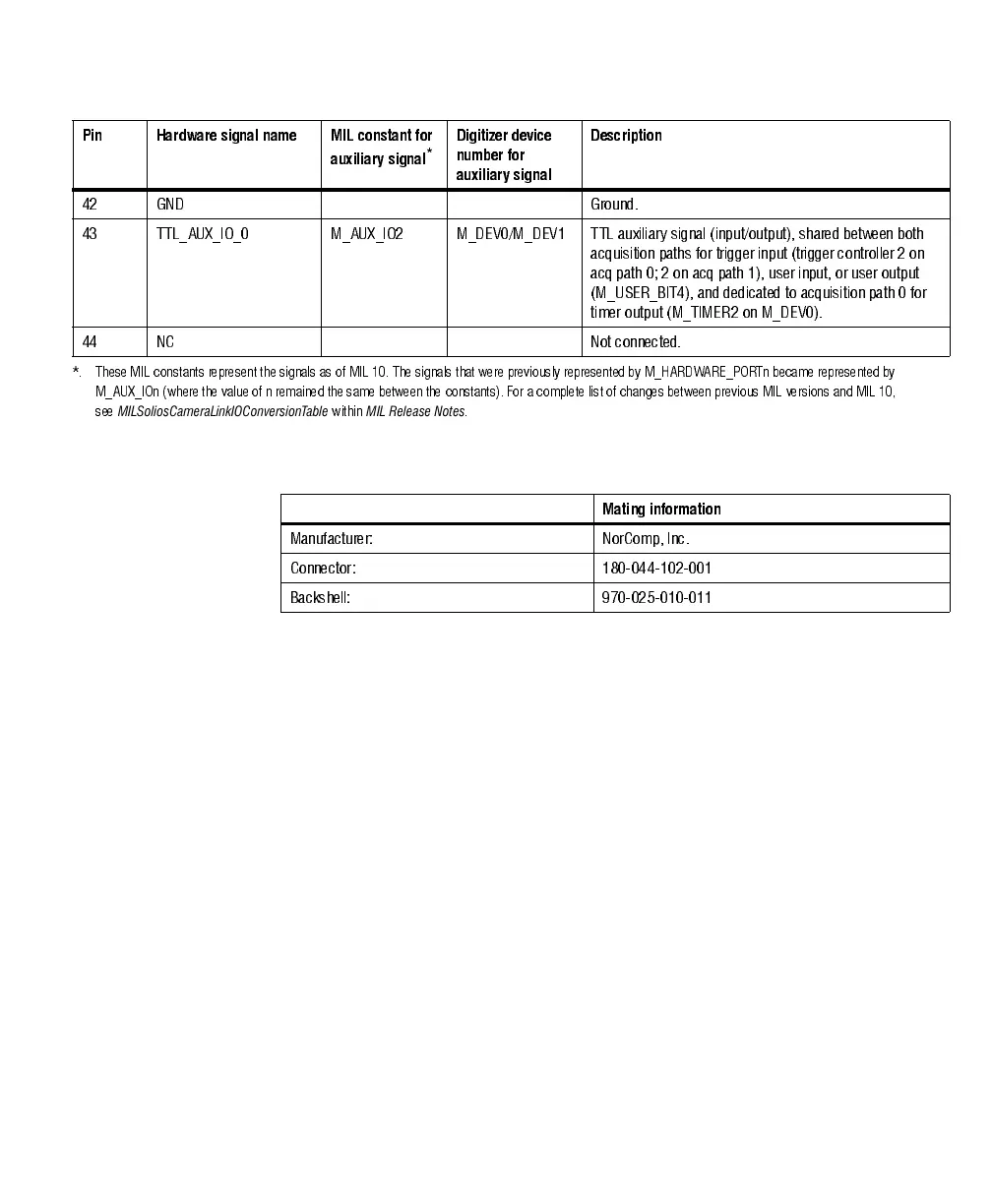

42 GND Ground.
43 TTL_AUX_IO_0 M_AUX_IO2 M_DEV0/M_DEV1 TTL auxiliary signal (input/output), shared between both
acquisition paths for trigger input (trigger controller 2 on
acq path 0; 2 on acq path 1), user input, or user output
(M_USER_BIT4), and dedicated to acquisition path 0 for
timer output (M_TIMER2 on M_DEV0).
44 NC Not connected.
*.
These MIL constants represent the signals as of MIL 10. The signals that were previously represented by M_HARDWARE_PORTn became represented by
M_AUX_IOn (where the value of n remained the same between the constants). For a complete list of changes between previous MIL versions and MI L 10,
see
MILSoliosCameraLinkIOConversionTable
within
MIL Release Notes
.
Pin Hardware signal name MIL constant for
auxiliary signal
*
Digitizer device
number for
auxiliary signal
Description
Mating information
Manufacturer: NorComp, Inc.
Connector: 180-044-102-001
Backshell: 970-025-010-011
