DP-20 WEB GUIDE CONTROLLER USER MANUAL
www.maxcessintl.com
DP-20
MI 1-862 1 F
4
4-1

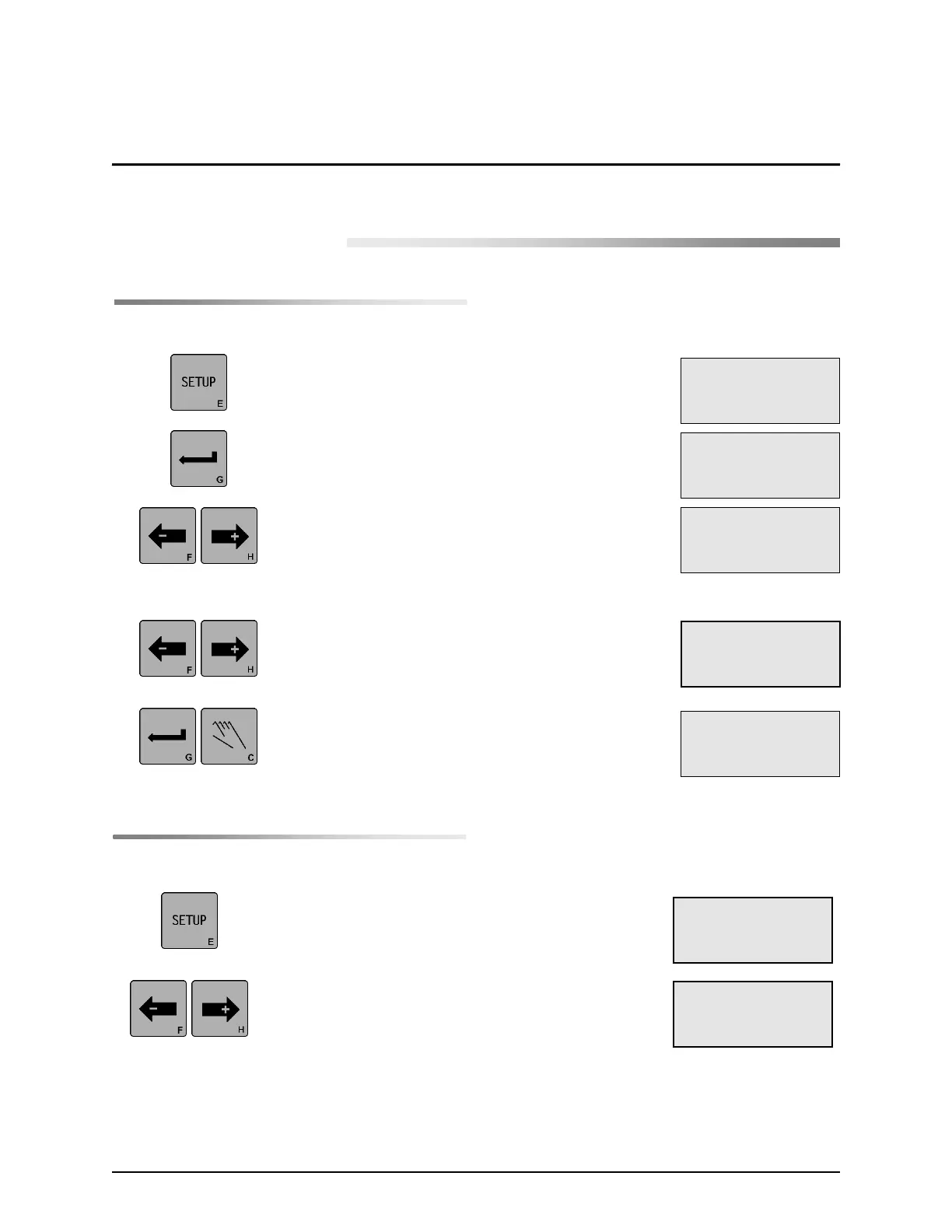

4 SYSTEM SETUP MENUS
AVAILABLE FROM AUTOMATIC MODE
1X.1, System Gain
1. Press the SETUP key to enter the Setup
Menus. The GAIN menu will be displayed on
the LCD Panel.
2. Press the ENTER key to allow adjustment of
the System Gain. The current Gain Value will
begin flashing on line 4.
3. Use the ARROW keys to adjust the System
Gain to the desired level as indicated on line 4.
If an ARROW key is held down, the speed of
the Gain change increases. The change is
effective immediately, but not stored.
4. If desired, press both of the ARROW keys
simultaneously to reset the System Gain to
10.0% as indicated on line 4.
5. Press the ENTER key to store the change or
press the MANUAL key to abort the change.
The system will exit the setup menus, and
return to the Operator Level.
1X.2, System Guide Point
1. Press the SETUP key to enter the Setup Menus.
The GAIN menu will be displayed on the LCD
Panel.
2. Use the ARROW keys to scroll until GUIDE
POINT is displayed on line 3.
×Ø 1C.1
SETUP (AUTO)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 1C.1.1
SETUP (AUTO)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 1C.1.1
SETUP (AUTO)
GAIN
ããÜÜÜÜÜÜÜÜ 20.0%
1C
AUTOMATIC
×Ø -ãããããÜÜÜÜÜ+
×Ø 1C.2
SETUP (AUTO)
GUIDE POINT
-ÜÜÜåÜÜÜ+ 0.0%
×Ø 1C.1
SETUP (AUTO)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 1C.1.1
SETUP (AUTO)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
