10. If the contrast is not sufficient for guiding, FAILED
will be displayed on line 2. Press the MANUAL
key to exit the setup menus and return to the
Operator Level. Repeat this procedure, as
necessary.

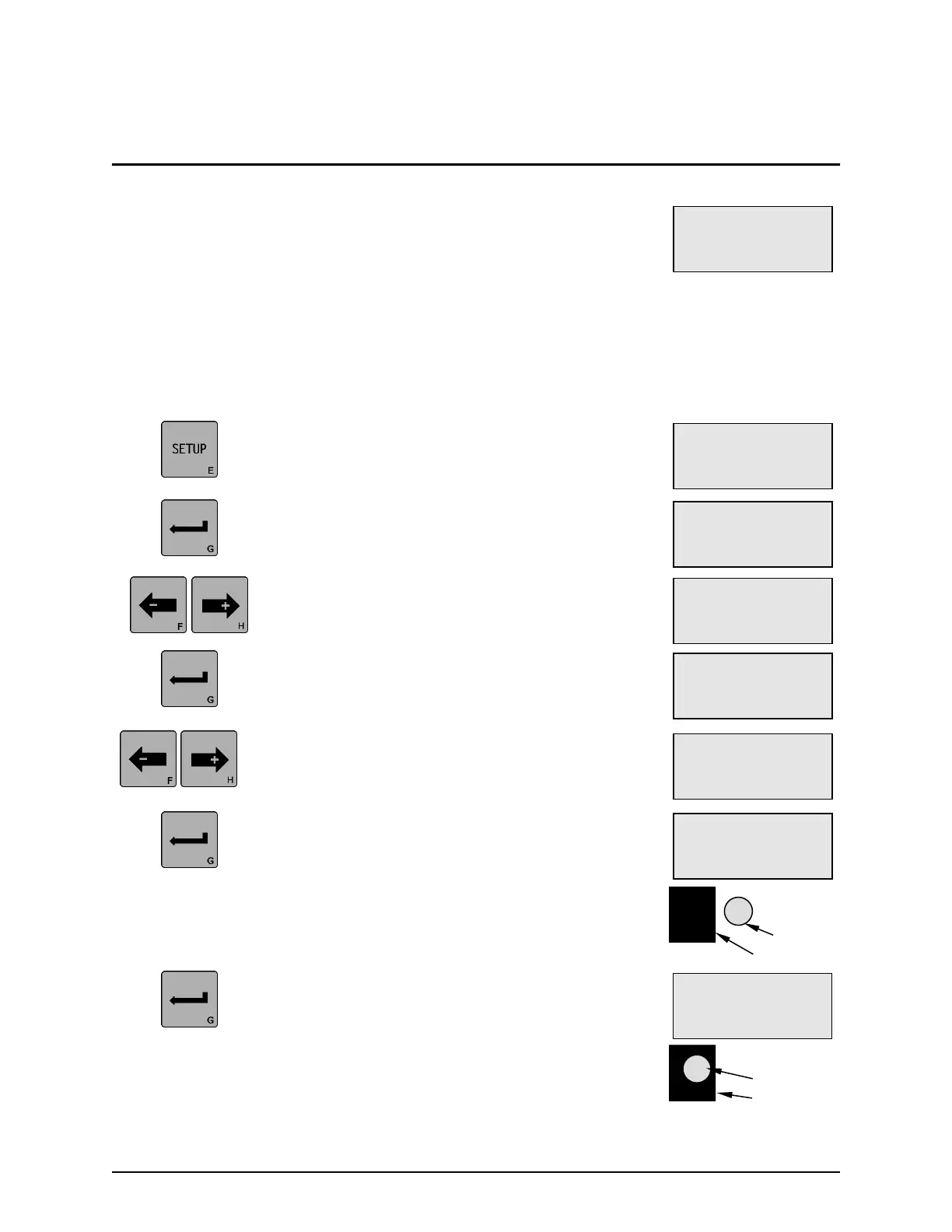

3X.1.4, Calibration, Servo-Center Sensor
(The default calibration for the Servo-Center Sensor should be sufficient,
but this procedure may be used, if necessary).
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
CALIBRATION is displayed on line 3.
4. Press the ENTER key to enter the
CALIBRATION menu. SELECT SENSOR will be
displayed on line 3.
5. Use the ARROW keys to select the Servo-
Center Sensor. ~ƒ will be displayed on line 1 and
(X2) will be displayed on line 4.
6. Press the ENTER key to begin the calibration.
UNCOVER SENSOR will be displayed on line 2.
Position the flag such that it is located away from
the surface of the sensor (see graphic at right).
The sensor signal is displayed on Line 3 of the
LCD Panel.
Sensor
Flag
7. Press the ENTER key. COVER SENSOR will be
displayed on line 2. Position the flag such that it
is positioned directly in front of the sensor and is
fully covering the sensor (see graphic at right).
The sensor signal is displayed on Line 3 of the
LCD Panel.
Sensor
Flag
