6 SYSTEM SETUP MENUS
AVAILABLE FROM MANUAL MODE

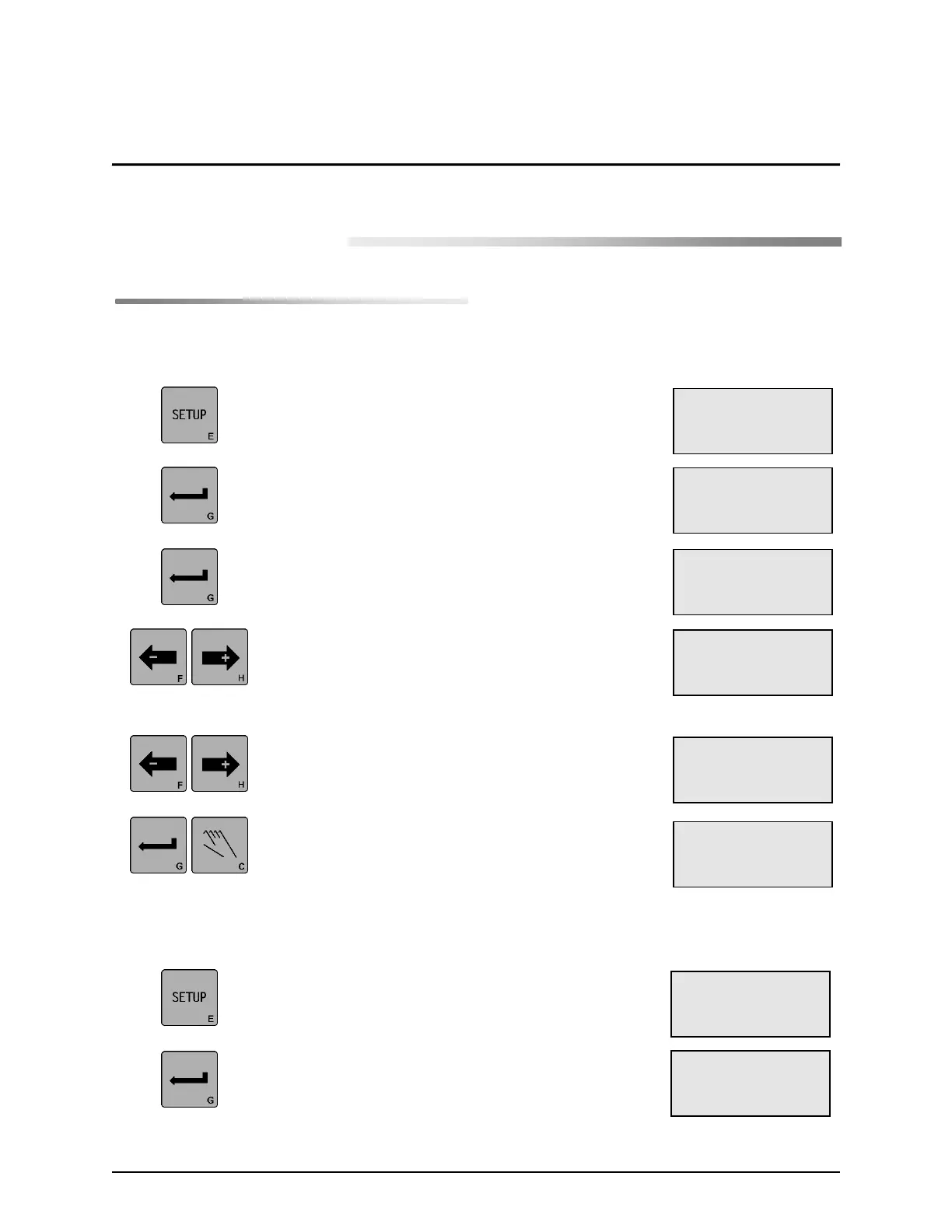

Basic Menus
3X.1.1, System Gain
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Press the ENTER key to allow adjustment of the
System Gain. The current Gain value will begin
flashing on line 4.
4. Use the ARROW keys to adjust the System Gain
to the desired level as indicated on line 4. If an
ARROW key is held down, the speed of the Gain
change increases. The change is effective
immediately, but not stored.
5. If desired, press both of the ARROW keys
simultaneously to reset the System Gain to
10.0% as indicated on line 4.
6. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus, and return to
the Operator Level.
3X.1.2, System Guide Point
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
×Ø 3C.1
SETUP (MAN)
SELECT MENU
BASIC
×Ø 3C.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 3C.1.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 3C.1.1.1
SETUP (MAN)
GAIN
ããÜÜÜÜÜÜÜÜ 20.0%
3C
MANUAL
×Ø -ãããããáÜÜÜÜ+
×Ø 3C.1
SETUP (MAN)
SELECT MENU
BASIC
×Ø 3C.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 3C.1.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
