DP-20 WEB GUIDE CONTROLLER USER MANUAL

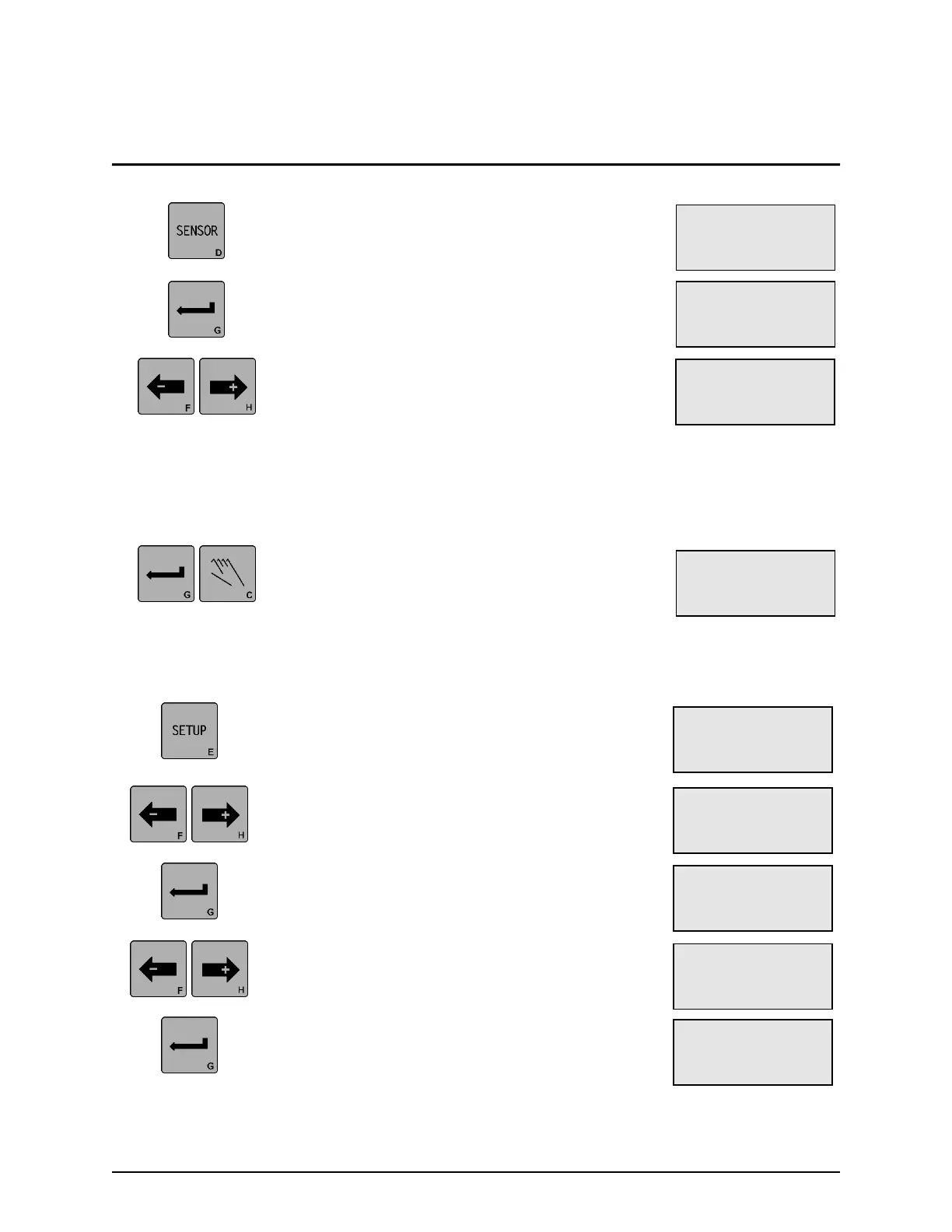

4. If necessary, press the SENSOR key to select
the desired sensor mode as indicated on line 1.
5. Press the ENTER key to enter the DEADBAND
menu. The current value will begin flashing on
line 4.
6. Use the ARROW keys to adjust the Deadband
to the desired setting as indicated on line 4. As
an ARROW key is held down, the speed of the
change increases. The default range of the
Deadband adjustment is 80% of the sensor
bandwidth, but this range will be limited if a
Guide Point Shift above 10% is being used. The
Deadband change is effective immediately, but
not yet stored.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change.
The system will exit the setup menus, and return
to the Operator Level.
3X.2.2, Set Operation Mode Enable
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until SPECIAL is
displayed on line 4.
3. Press the ENTER key to enter the Special
Menus. The DEADBAND menu will be
displayed.
4. Use the ARROW keys to scroll until SET MODE
ENABLE is displayed on line 3. The current
selection is displayed on Line 4.
5. Press the ENTER key to enter the Set Mode
Enable menu. The current selection will begin
flashing on line 4. The last digit of the menu
number will vary according to the current
selection.
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.2
SETUP (MAN)
SELECT MENU
SPECIAL
× 3A.2.1.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
× 3A.2.1.1
SETUP (MAN)
DEADBAND
-ÜÜÜãÜÜÜ+ 10.0%
× 3A.2.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
× 3A.2.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
× 3A.2.2
SETUP (MAN)
SET MODE ENABLE
|AUTO|SC |MAN |
× 3A.2.2.1
SETUP (MAN)
|AUTO|SC |MAN |
|NO |NO |YES |
