DP-20 WEB GUIDE CONTROLLER USER MANUAL

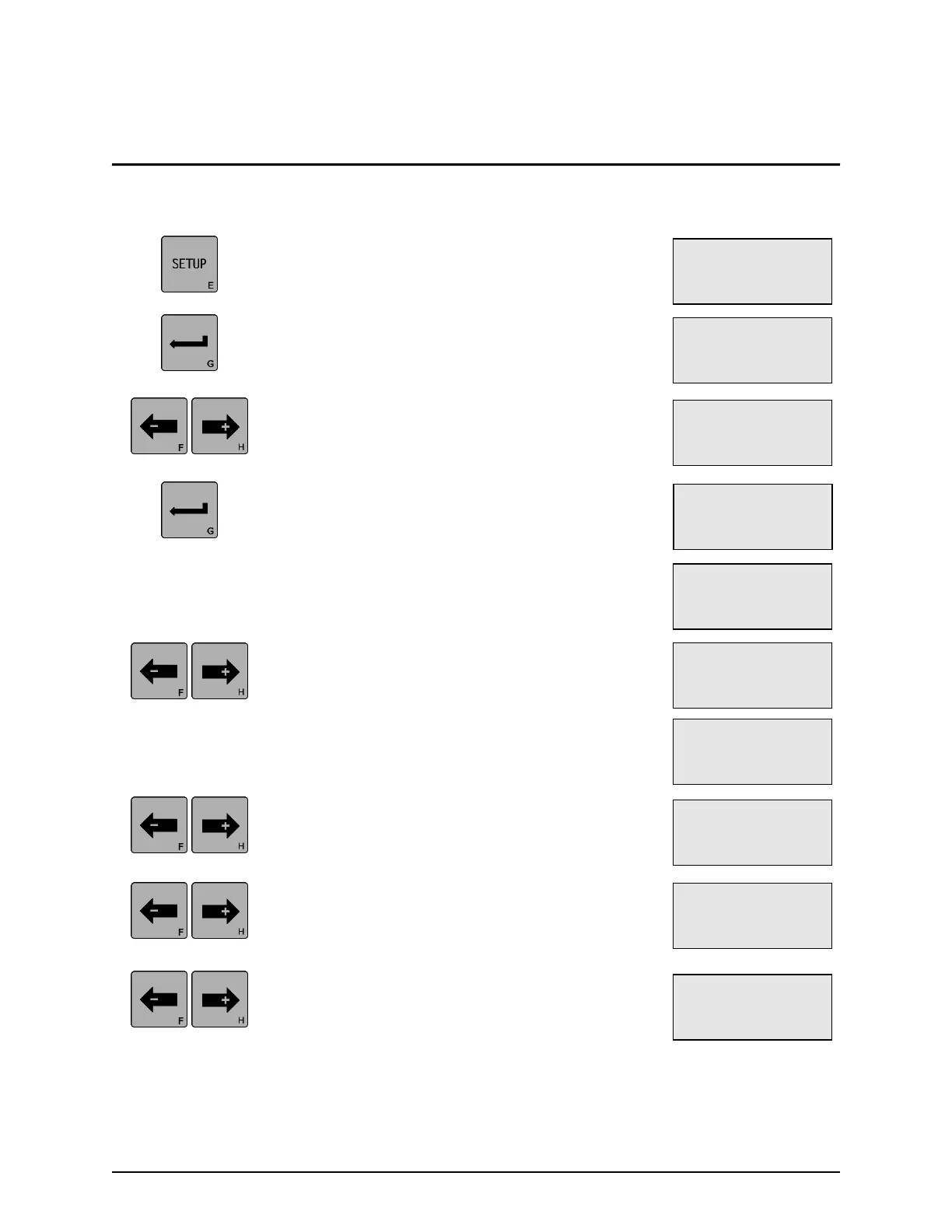

1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
MEASUREMENT is displayed on line 3.
4. Press the ENTER key to view the Measurement
menus. The level of the guiding signal from the
Left Edge Sensor (Line Center if a line sensor is
being used) is displayed on Line 4. This signal
has been scaled by values which were
determined during the Sensor Calibration
procedure.
5. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the Right
Edge Sensor (Line Edge if a line sensor is being
used The guiding signal is displayed on Line 4.
This signal has been scaled by values which
were determined during the Sensor Calibration
procedure.
6. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
Servo-Center Sensor. The sensor signal is
displayed on Line 4.
7. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
TACHOMETER. The tachometer signal is
displayed on Line 4.
8. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
MOTOR TYPE. The motor type is displayed on
Line 4.
×Ø 3C.1.8.2
MEASUREMENT
Ø SENSOR (X4)
-ããããÜÜÜÜ+ 50%
×Ø 3C.1.8.3
MEASUREMENT
~ƒ SENSOR (X2)
-ããããÜÜÜÜ+ 50%
×Ø 3C.1.8.4
MEASUREMENT
TACHOMETER
-ããããÜÜÜÜ+ 0%
×Ø 3C.1.8.5
MEASUREMENT
MOTOR TYPE
1.3A MOTOR 14K
×Ø 3C.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 3C.1.8
SETUP (MAN)
MEASUREMENT
×Ø 3C.1
SETUP (MAN)
SELECT MENU
BASIC
×Ø 3C.1.8.1
MEASUREMENT
× SENSOR (X5)
-ããããÜÜÜÜ+ 50%
Ł 3E.1.8.2
MEASUREMENT
Ł SENSOR (X4)
-ããããÜÜÜÜ+ 50%
ý 3D.1.8.1
MEASUREMENT
ý SENSOR (X4)
-ããããÜÜÜÜ+ 50%
