DP-20 WEB GUIDE CONTROLLER USER MANUAL

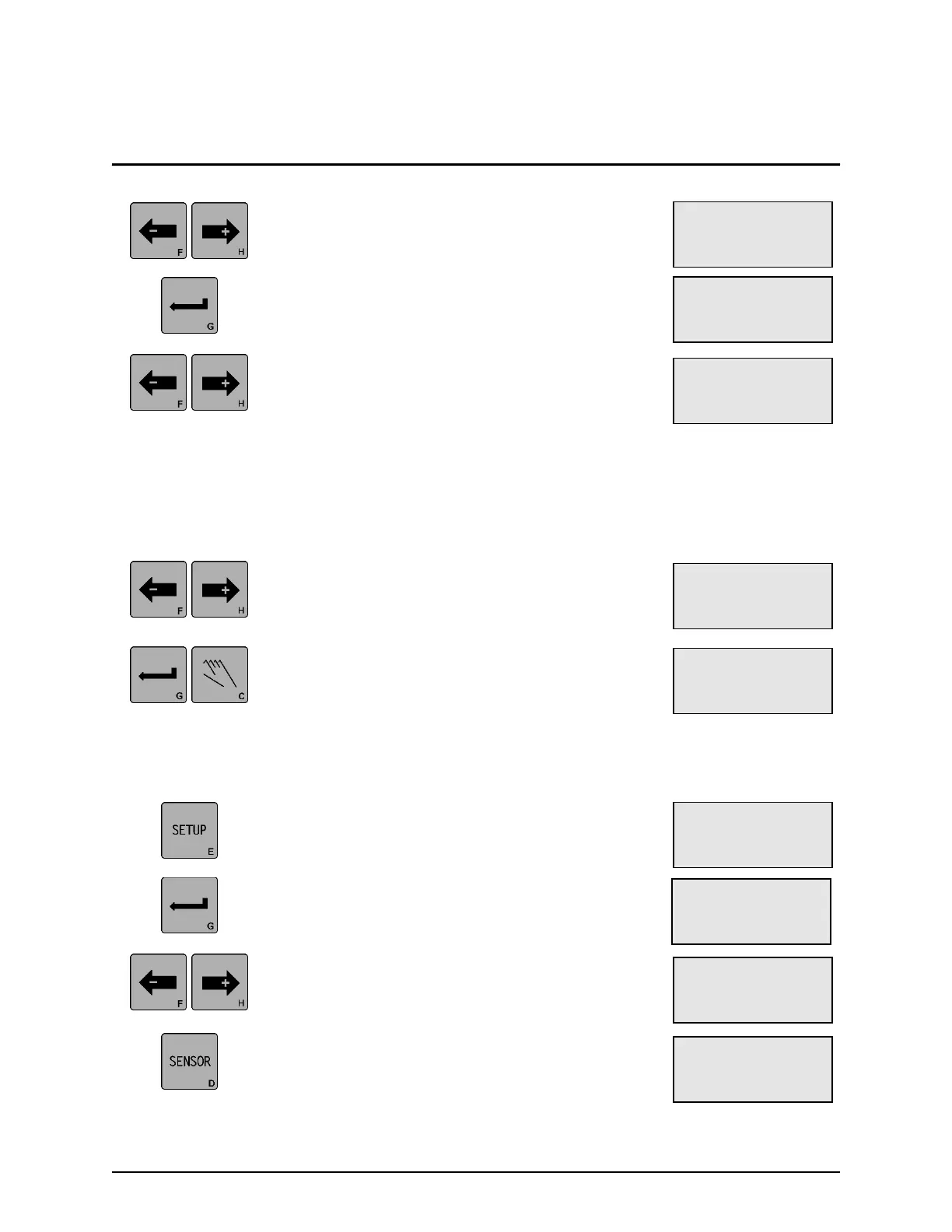

3. Use the ARROW keys to scroll until GUIDE
POINT is displayed on line 3.
4. Press the ENTER key to allow adjustment of the
System Guide Point. The current Guide Point
value will begin flashing on line 4.
5. Use the ARROW keys to adjust the System
Guide Point to the desired position. The LCD
Panel is scaled to ±100% from the center of the
sensor bandwidth. The default range of the
Guide Point adjustment is ±80% of the sensor
bandwidth, but this range will be limited if a
Deadband above 10% is being used. ASC
settings can also limit the Guide Point range.
The Guide Point change is effective
immediately, but not yet stored.
6. If desired, press both of the ARROW keys
simultaneously to reset the System Guide Point
to the center of the available range, as indicated
on line 4.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus, and return to
the Operator Level.
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until GUIDE
POLARITY is displayed on line 3.
4. If necessary, press the SENSOR key to select
the desired sensor mode.
×Ø 3C.1.2.1
SETUP (MAN)
GUIDE POINT
-ÜÜÜÜåÜÜÜÜ+ 0.0%
×Ø 3C.1.2
SETUP (MAN)
GUIDE POINT
-ÜÜÜåÜÜÜ+ 0.0%
×Ø 3C.1.2.1
SETUP (MAN)
GUIDE POINT
-ÜÜÜÜåÜÜ+ +20.0%
3C
MANUAL
×Ø -ãããããáÜÜÜÜ+
×Ø 3C.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 3C.1.3
SETUP (MAN)
GUIDE POLARITY
-
×Ø 3C.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.1.3
SETUP (MAN)
GUIDE POLARITY
-
×Ø 3C.1.2.1
SETUP (MAN)
GUIDE POINT
-ÜÜÜÜåÜÜÜÜ+ 0.0%
