2. Use the ARROW keys to scroll until ADVANCED
is displayed on line 3.
3. Press the ENTER key to enter the Advanced
Menus. The RESTORE SETTINGS menu will
be displayed.
4. Use the ARROW keys to scroll until TEST
SIGNALS is displayed on line 3.
5. Press the ENTER key to enter the TEST
SIGNALS menu. SENSOR CURRENT will be
displayed on line 3.
6. Press the ENTER key to enter the SENSOR
CURRENT menu. The currently selected sensor
is indicated on line 3. The value of the sensor
signal is displayed on line 4. This represents the
actual sensor signal with no scaling applied. The
range of the bargraph and the numerical value is
±20mA.
7. If necessary, use the ARROW keys to toggle to
the desired sensor as indicated on line 3. The
value of the sensor signal is shown on line 4.
8. Press the MANUAL key to exit the setup menus,
and return to the Operator Level. No settings are
stored.
3X.3.8.2, Test Signals, Toggle Outputs
(THIS MENU IS INTENDED FOR A SPECIAL TEST MODE, ONLY).
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until ADVANCED
is displayed on line 4.

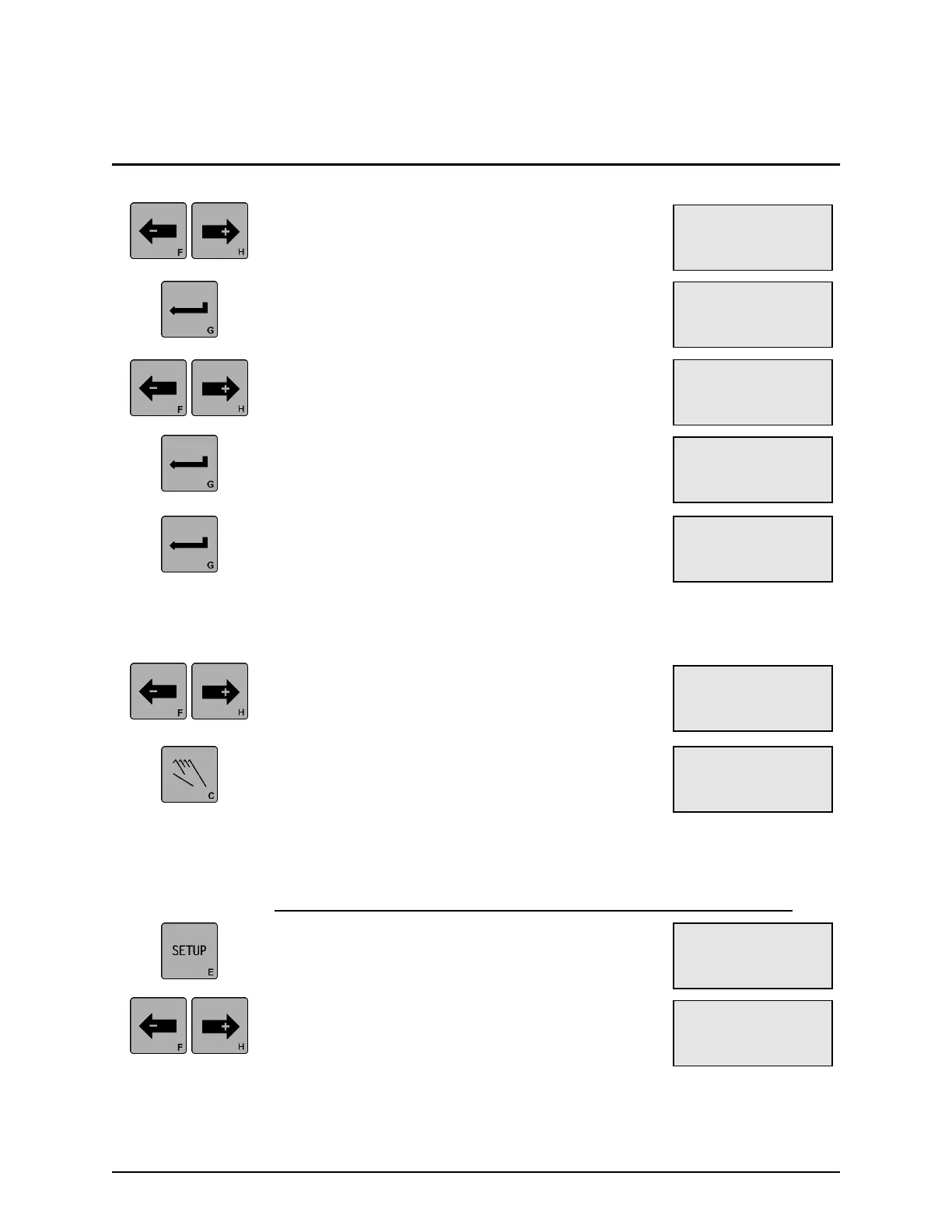

× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.3
SETUP (MAN)
SELECT MENU
ADVANCED
× 3A.3
SETUP (MAN)
SELECT MENU
ADVANCED
× 3A.3.8
SETUP (MAN)
TEST SIGNALS
× 3A.3.8.1
SETUP (MAN)
SENSOR CURRENT
× 3A.3.8.1.1
SENSOR CURRENT
× SENSOR (X5)
-ÜÜÜåÜÜ+ 0.8mA
× 3A.3.1
SETUP (MAN)
RESTORE SETTINGS
× 3A.3.8.1.2
SENSOR CURRENT
Ø SENSOR (X4)
-ÜÜÜåÜÜ+ 0.8mA
To Next Page
