8. Press the ENTER key. If the contrast is
sufficient, SUCCESSFUL will be displayed for a
few seconds on line 2, then the unit will
automatically exit the menus and return to the
Operator Level.
—OR—
9. If the contrast is not sufficient, FAILED will be
displayed on line 2. Press the MANUAL key to
exit the setup menus and return to the Operator
Level. Repeat this procedure, as necessary.

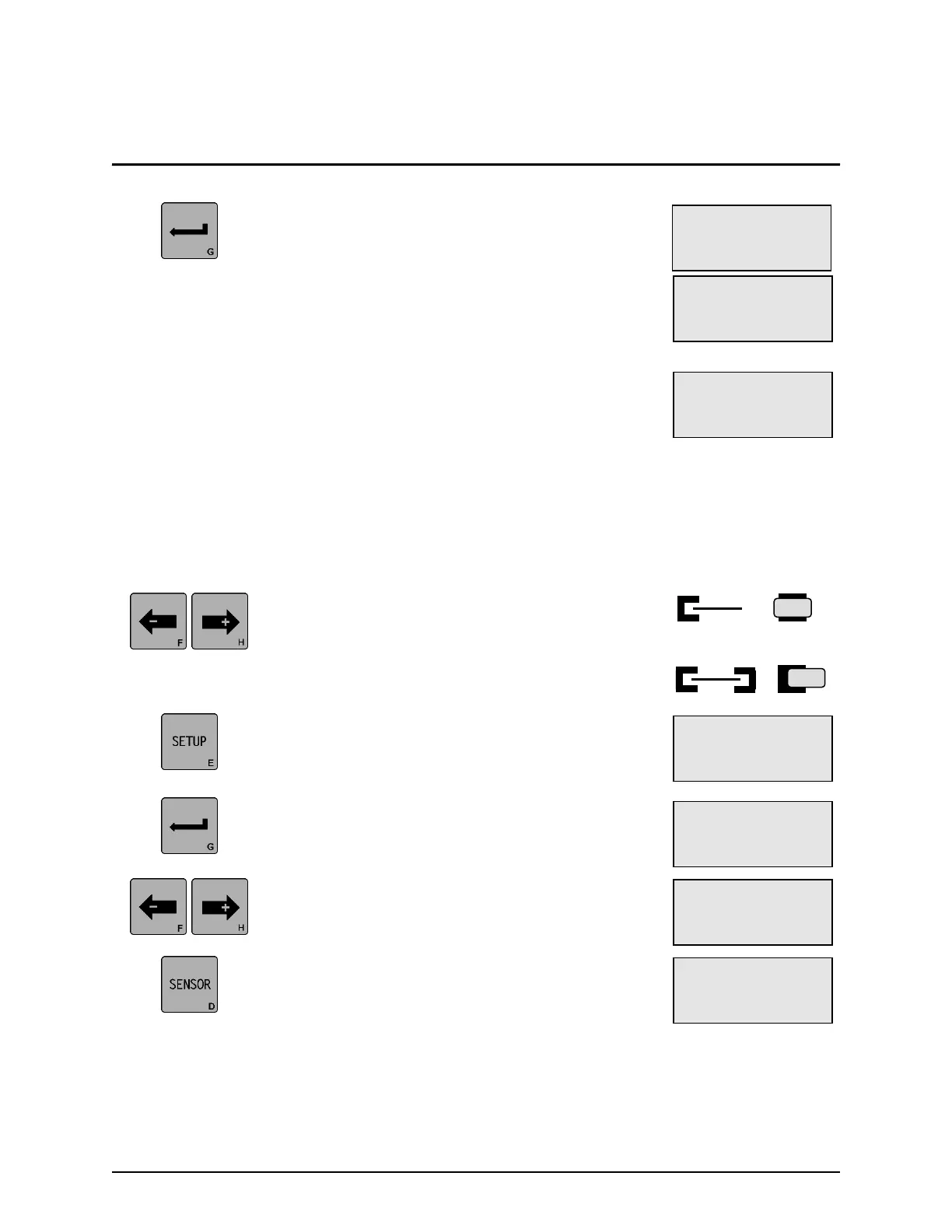

3X.1.5, Auto Setup
Sensor Calibration should be performed prior to performing Auto Setup. If
a line sensor is being used, the icons and screen numbers will correspond
to the sensor mode that is selected.
1. Position the the edge of the web, or the center
or edge of the line in the center of the sensor
field of view. (See the appropriate graphic at
right). The ARROW keys may be used.
Edge Guiding Line Center
Center Guiding Line Edge
2. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
3. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
4. Use the ARROW keys to scroll until AUTO
SETUP is displayed on line 3.
5. If necessary, press the SENSOR key to select
the desired sensor mode as indicated on line 1
of the LCD Panel.
Ø 3B.1.5
SETUP (MAN)
AUTO SETUP
× 3A.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
× 3A.1.5
SETUP (MAN)
AUTO SETUP
× 3C.1
SETUP (MAN)
SELECT MENU
BASIC
~ƒ 3F.1.4.4
SUCCESSFUL
-ãããããããããá+ 95%
3A
MANUAL
× -ãããããáÜÜÜÜ+
~ƒ 3F.1.4.6
FAILED
-áÜÜÜÜÜÜÜÜÜ+ 3%
