DP-20 WEB GUIDE CONTROLLER USER MANUAL

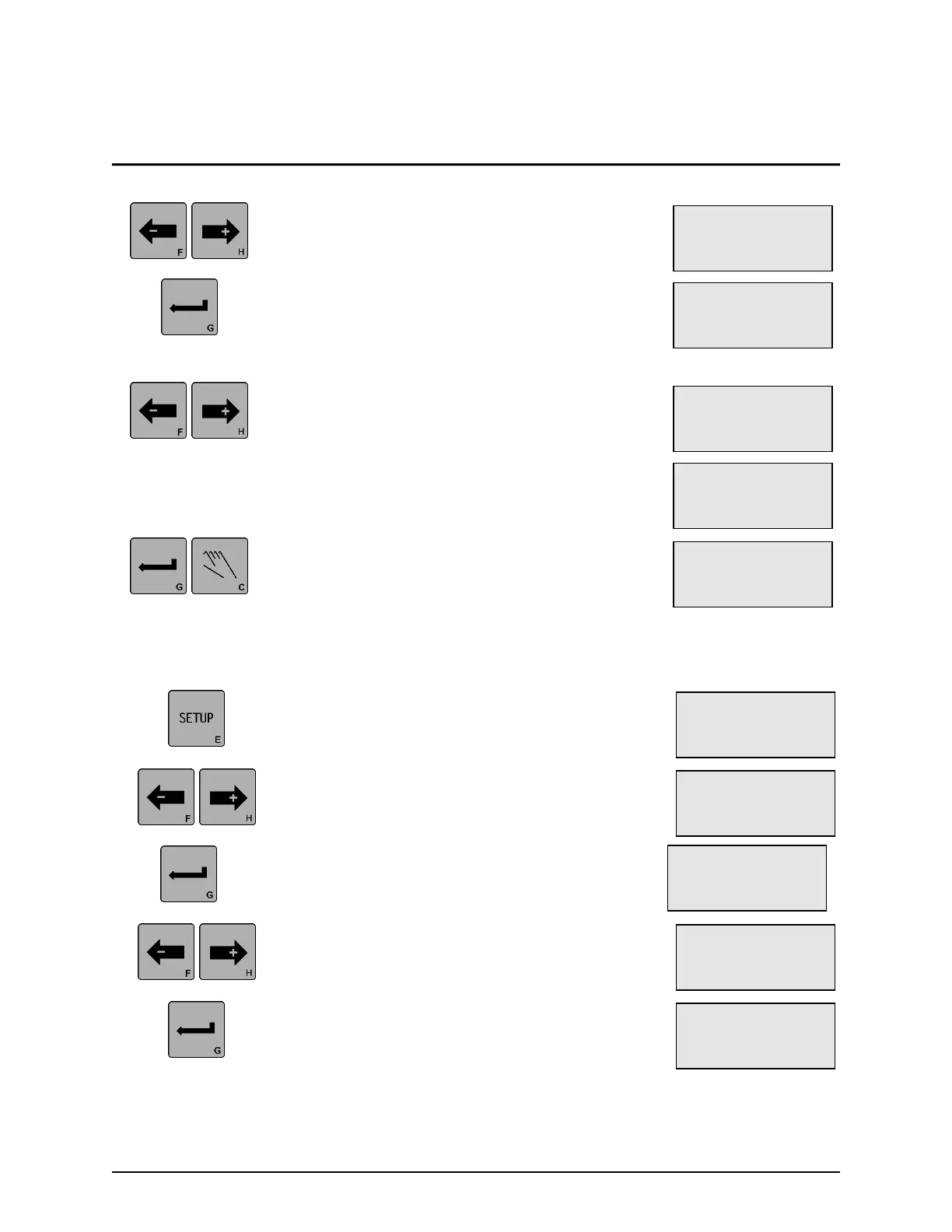

4. Use the ARROW keys to scroll until SENSOR
ENABLE is displayed on line 3. The current
selection is displayed on Line 4.
5. Press the ENTER key to enter the Sensor
Enable menu. The current selection will begin
flashing on line 4. The last digit of the menu
number will vary according to the current
selection.
6. Use the ARROW keys to scroll to the desired
selection, as indicated on line 4 of the LCD
Panel. YES indicates that the corresponding
sensor mode is enabled. NO indicates it is
disabled.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus, and return to
the Operator Level.
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until SPECIAL is
displayed on line 4.
3. Press the ENTER key to enter the Special
Menus. The DEADBAND menu will be
displayed.
4. Use the ARROW keys to scroll until SET JOG
ENABLE is displayed on line 3. The current
selection is displayed on Line 4.
5. Press the ENTER key to enter the Set Jog
Enable menu. The current selection will begin
flashing on line 4. The last digit of the menu
number will vary according to the current
selection.
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.2
SETUP (MAN)
SELECT MENU
SPECIAL
× 3A.2.4
SETUP (MAN)
SET JOG ENABLE
|AUTO|SC |MAN |
× 3A.2.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
× 3A.2.4.1
SETUP (MAN)
|AUTO|SC |MAN |
|NO |NO |NO |
ý 3D.2.3
SETUP (MAN)
SENSOR ENABLE
| ý | Ł |
ý 3D.2.3.1
SETUP (MAN)
| ý | Ł |
|YES |YES |
ý 3D.2.3.2
SETUP (MAN)
| ý | Ł |
|YES |NO |
ý 3D.2.3.3
SETUP (MAN)
| ý | Ł |
|NO |YES |
To Next Page
