DP-20 WEB GUIDE CONTROLLER USER MANUAL

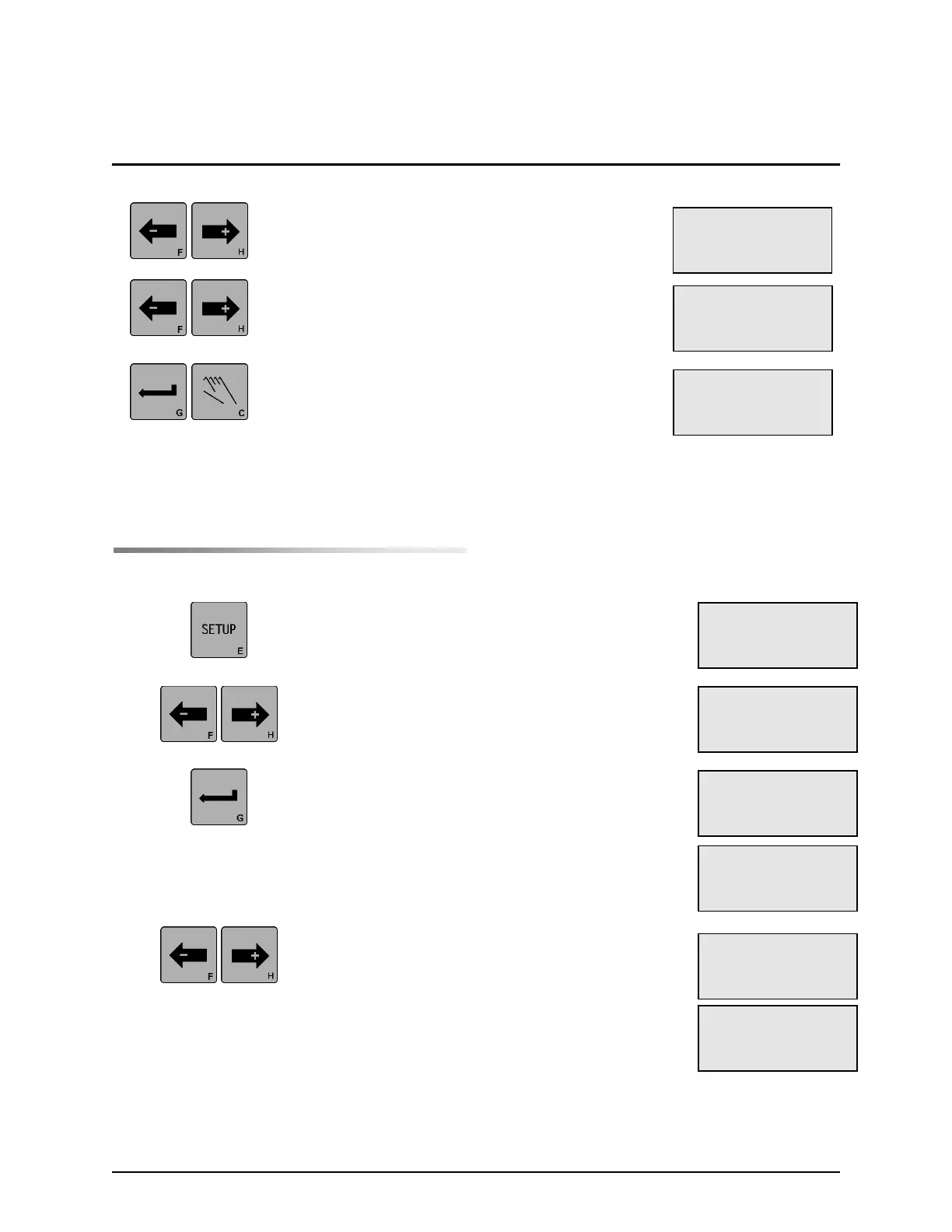

4. Use the ARROW keys to adjust the SC Guide
Point to the desired position as indicated on line
4.
5. If desired, press both of the ARROW keys
simultaneously to reset the Servo-Center Guide
Point to 0.0% as indicated on line 4.
6. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus, and return to
the Operator Level. The Servo-Center Guide
Point value will be displayed on Line 4 if the
value is not 0.
1. Press the SETUP key to enter the Setup
Menus. The SC GAIN menu will be
displayed on the LCD Panel.
2. Use the ARROW keys to scroll until
MEASUREMENT is displayed on line 3.
3. Press the ENTER key to view the
Measurement menus. The level of the
guiding signal from the Left Edge Sensor
(Line Center if a line sensor is being used)
is displayed on Line 4. This signal has been
scaled by values which were determined
during the Sensor Calibration procedure.
4. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the Right Edge Sensor (Line Edge if a line
sensor is being used). The guiding signal is
displayed on Line 4. This signal has been
scaled by values which were determined
during the Sensor Calibration procedure.
×Ø 2C.2.1
SETUP (SC)
~ƒ GUIDE POINT
-ÜÜåÜÜÜÜ+ -21.0%
×Ø 2C
SERVO-CENTER
~ƒ -ããããÜÜÜÜÜÜ+
~ƒ GP: -21.0%
×Ø 2C.2.1
SETUP (SC)
~ƒ GUIDE POINT
-ÜÜÜåÜÜÜ+ 0.0%
×Ø 2C.1
SETUP (SC)
~ƒ GAIN
ãÜÜÜÜÜÜÜÜÜ 5.0%
×Ø 2C.3
SETUP (SC)
MEASUREMENT
×Ø 2C.3.1
MEASUREMENT
× SENSOR (X5)
-ããããÜÜÜÜ+ 50%
×Ø 2C.3.2
MEASUREMENT
Ø SENSOR (X4)
-ããããÜÜÜÜ+ 50%
ý 2D.3.1
MEASUREMENT
ý SENSOR (X4)
-ããããÜÜÜÜ+ 50%
Ł 2E.3.2
MEASUREMENT
Ł SENSOR (X4)
-ããããÜÜÜÜ+ 50%
