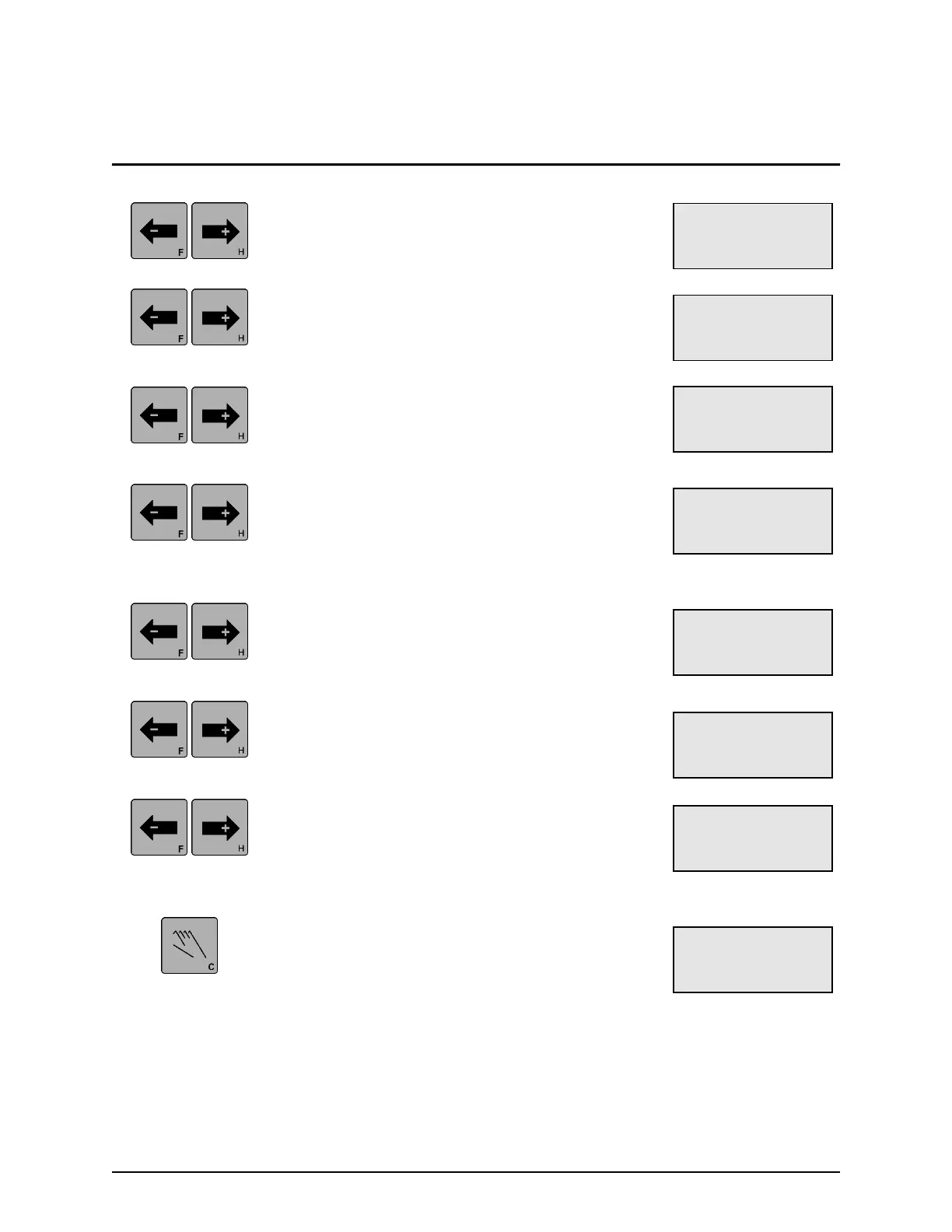

5. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
Servo-Center Sensor. The sensor signal is
displayed on Line 4.
6. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
TACHOMETER. The tachometer signal is
displayed on Line 4.
7. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
MOTOR TYPE. The motor type is displayed on
Line 4.
8. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
DIGITAL INPUTS. The status of the inputs is
displayed on Line 4. The order in which the
inputs are displayed is 5,4,3,2,1,0.
9. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
FIRMWARE VERSION. The version number of
the firmware is displayed on Line 4.
10. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
SERIAL NUMBER. The serial number of the DP-
20 is displayed on Line 4.
11. If desired, use the ARROW keys to scroll until
EXIT MENUS is displayed no line 3. Pressing
the ENTER key while this screen is displayed will
exit the Measurement Menus and return to the
Operator Level.
12. Otherwise, press the MANUAL key to exit the
Measurement Menus and return to the Operator
Level.
×Ø 2C
SERVO-CENTER
~ƒ -ãããããÜÜÜÜÜ+
×Ø 2C.3.3
MEASUREMENT
~ƒ SENSOR (X2)
-ããããÜÜÜÜ+ 50%
×Ø 2C.3.4
MEASUREMENT
TACHOMETER
-ããããÜÜÜÜ+ 0%
×Ø 2C.3.5
MEASUREMENT
MOTOR TYPE
1.3A MOTOR 14K
×Ø 2C.3.6
MEASUREMENT
DIGITAL INPUTS
000000
×Ø 2C.3.7
MEASUREMENT
FIRMWARE VERSION
DP-20 Ver 1.00
×Ø 2C.3.8
MEASUREMENT
SERIAL NUMBER
SN:10000
×Ø 2C.3.9
MEASUREMENT
EXIT MENUS
