Maxcess Fife Polaris DP-20 User Manual

DP-20 WEB GUIDE CONTROLLER USER MANUAL
www.maxcessintl.com
DP-20
MI 1-862 1 F
6
6-6

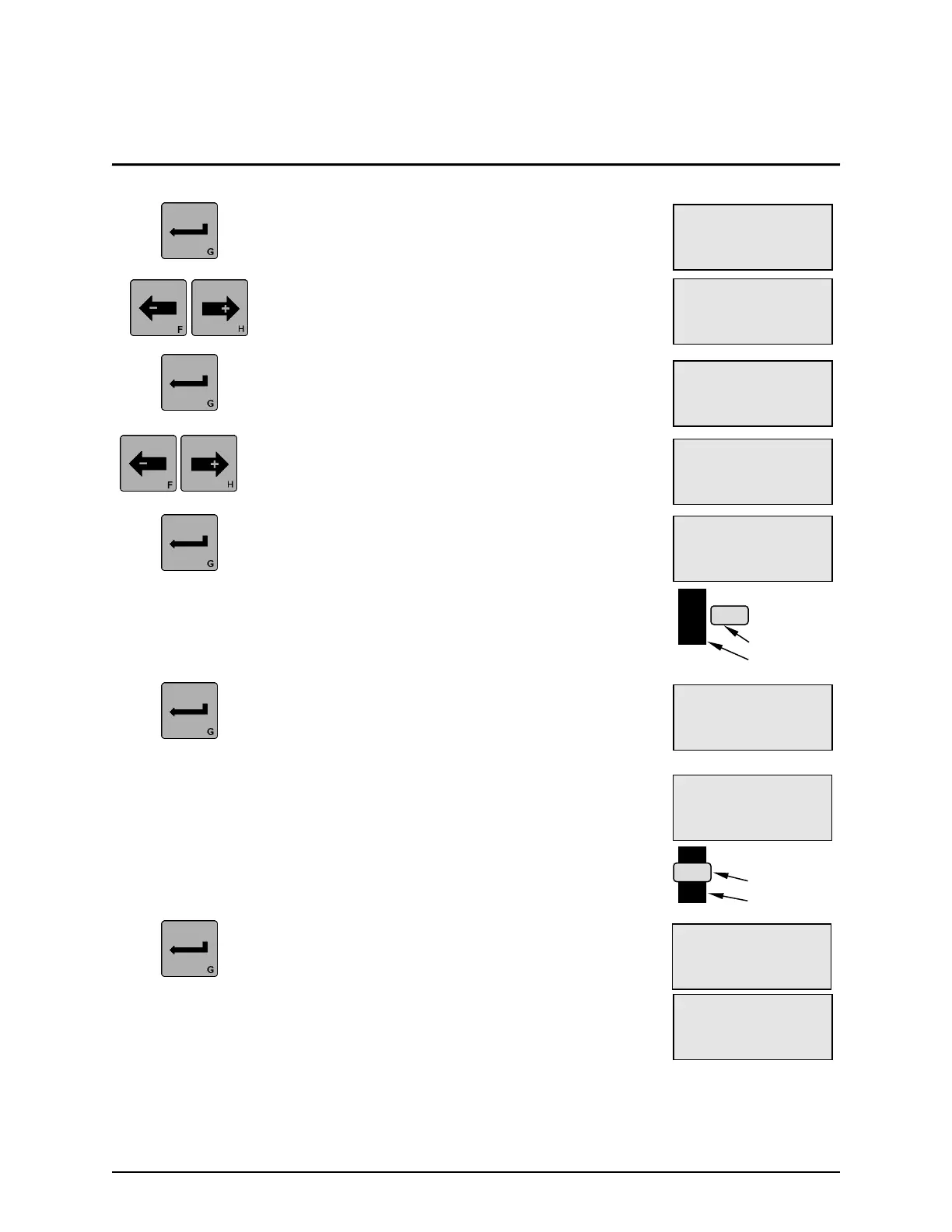

2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
CALIBRATION is displayed on line 3.
4. Press the ENTER key to enter the
CALIBRATION menu. SELECT SENSOR will be
displayed on line 3.
5. If necessary, use the ARROW keys to select the
Edge of Line sensor input. Ł will be displayed on
line 1.
6. Press the ENTER key to begin the calibration.
UNCOVER SENSOR will be displayed on line 2.
With the sensor light spot correctly focused on
the material to be guided, position the sensor
such that the light spot is located on the
background, near the line to be guided, but not
on the line (see graphic at right). The sensor
signal is displayed on Line 3.
Light Spot
Line
7. Press the ENTER key. WAIT... will be displayed
for a few seconds on line 4 of the LCD Panel.
Maintain the web position during this wait period.
8. Once the delay has ended, COVER SENSOR
will be displayed on line 2. Position the sensor
such that the light spot is located fully on the line
to be guided (see graphic at right). The sensor
signal is displayed on Line 3 of the LCD Panel.
Light Spot
Line
9. Press the ENTER key. If the contrast is sufficient
for guiding, SUCCESSFUL will be displayed for
a few seconds on line 2, then the unit will
automatically exit the menus and return to the
Operator Level.
—OR—
Ł 3E.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
Ł 3E.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
Ł 3E.1.4
SETUP (MAN)
CALIBRATION
Ł 3E.1.4.1
SETUP (MAN)
SELECT SENSOR
(X4)
Ł 3E.1.4.1
SETUP (MAN)
SELECT SENSOR
(X4)
Ł 3E.1.4.3
COVER SENSOR
-ãããããããããá+ 95%
Ł 3E.1.4.4
SUCCESSFUL
-ãããããããããá+ 95%
3E
MANUAL
Ł -ãããããáÜÜÜÜ+
Ł 3E.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
WAIT...
