Transfer Strip Position Trend to USB: This button transfers the previous (7) seven days of position
trend files from the HMI memory to an external USB
connected device, including the current day trend file. Files
are transferred in .CSV file format.
Clear Oldest Alarm Log: This button deletes the oldest alarm log from the HMI internal memory. This
button is to be used when the available HMI memory gets below 5000KB.
This button must be held for 3 seconds in order to initiate a delete
command.
Clear Oldest Trend File: This button deletes the oldest trend files from the HMI internal memory.
This is to be used when the available HMI memory gets below 5000KB.
This button must be held for 3 seconds in order to initiate the delete
command.
HMI Date & Time: Shows the current date and time setting of the HMI and allows you to change them
individually.
3-5 Trends Screen

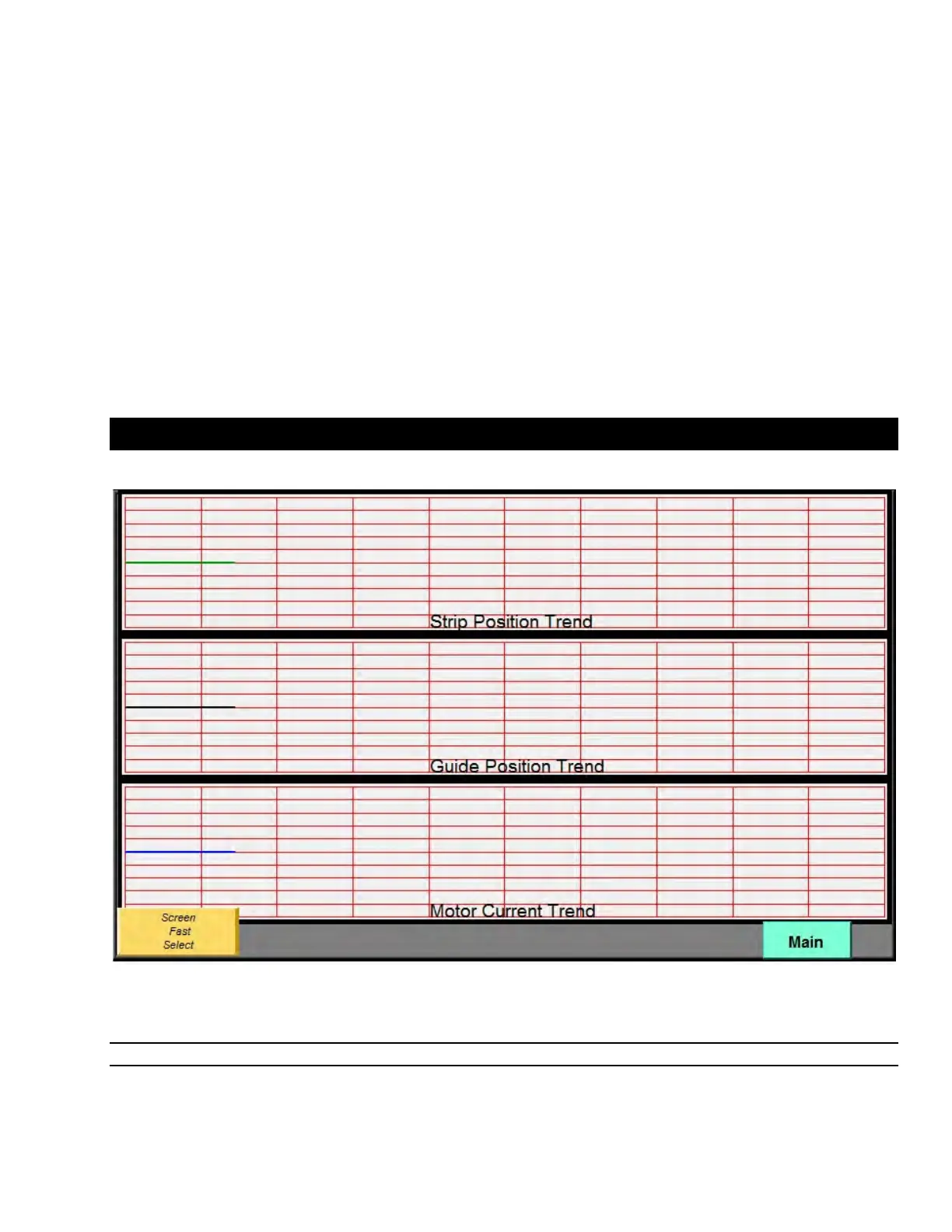

By accessing the “Trends” screen from the “Screen Fast Select” menu, users are able to view real-time
displays of strip position, guide position and motor current. Each window represents the last two hours
of data. Touching a particular window will expand that trend to full screen.
Note: These trends are only active in automatic mode.
