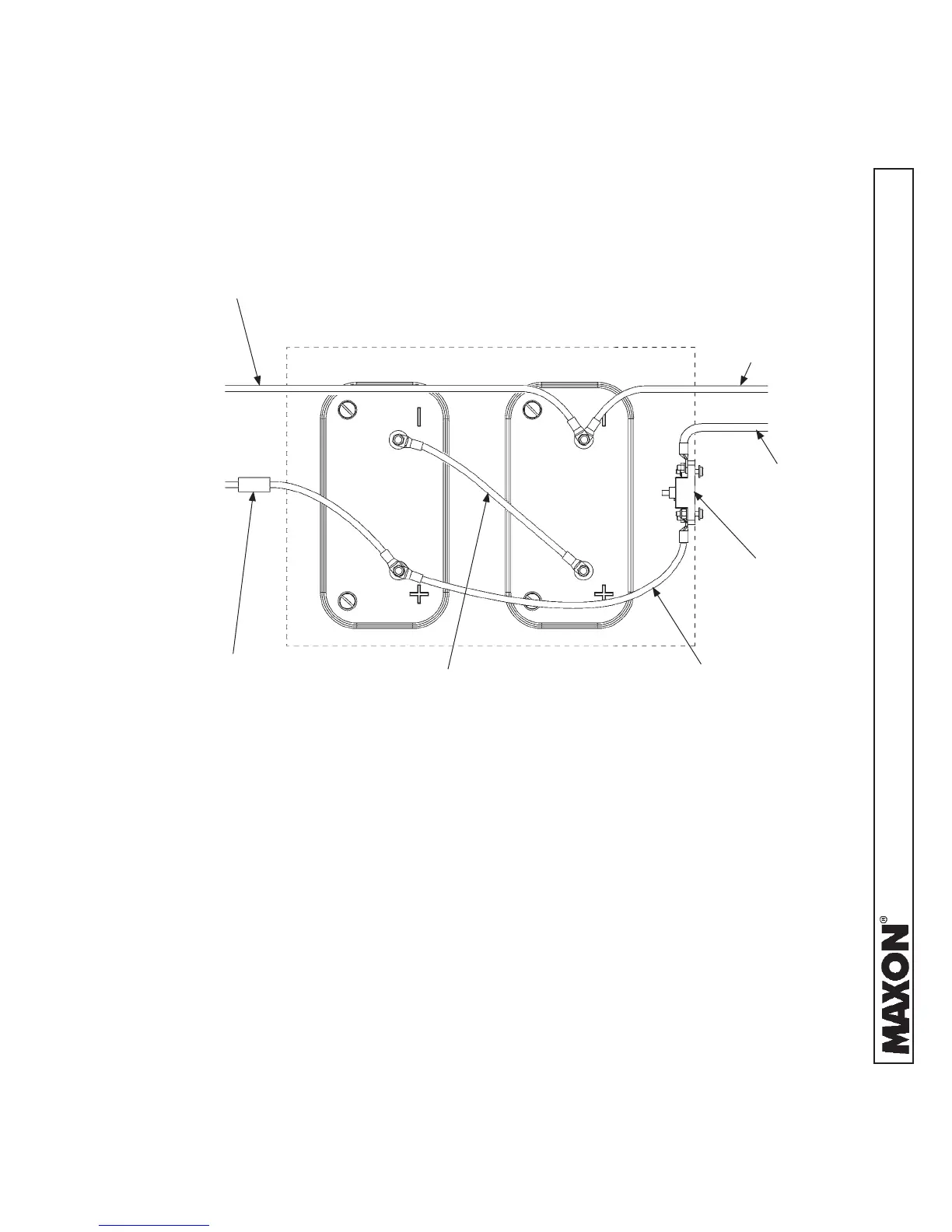

STEP 3 - ATTACH OPTIONAL BATTERY BOX & FRAME

TO VEHICLE (IF EQUIPPED) - Continued

FUSED CABLE

(SEE NOTE)

(-) BATTERY CABLE

TO COMMON

GROUND

FUSED CABLE TO PUMP

BOX, 42” LG.

(BATTERY BOX KIT ITEM)

150 AMP

CIRCUIT

BREAKER

CABLE

12” LG.

CABLE

10” LG.

GROUND CABLE TO

PUMP BOX OR COMMON

CHASSIS GROUND, 74” LG.

(BATTERY BOX KIT ITEM)

12 VOLT BATTERY CONNECTIONS

FOR 24 VOLT POWER

FIG. 29-1
