11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
65

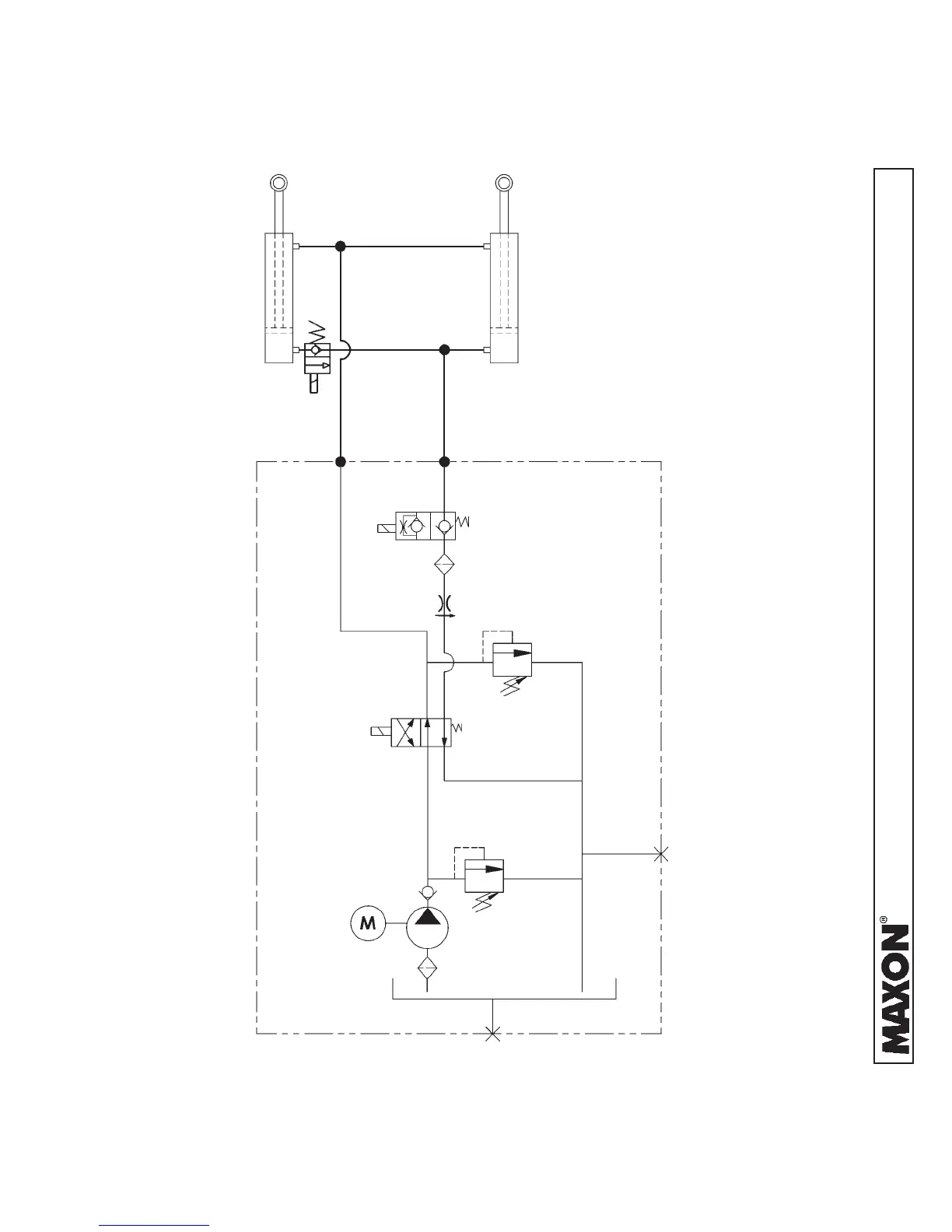

HYDRAULIC SCHEMATIC (POWER DOWN)
FIG. 65-1
PORT B - LOWER
(POWER DOWN)
PORT A - RAISE
RELIEF VALVE 2
(SET AT 1100 PSI)
PUMP
AUX. HAND
PUMP PORT
(PLUGGED)
VALVE S2
VALVE S1
HYDRAULIC
CYLINDERS
4 GPM FLOW
CONTROL
VALVE
RESERVOIR
DRAIN HOLE
(PLUGGED)
FILTER
MOTOR
(REF)
RELIEF VALVE 1
(SET AT 2750 PSI)
HYDRAULIC
LOCK VALVE
CHECK VALVE
