STEP 9 - CONNECT POWER CABLE TO BATTERY
1. Remove nut from negative (-)
battery terminal (FIG. 41-1). Dis-
connect negative (-) battery cable
(FIG. 41-1).

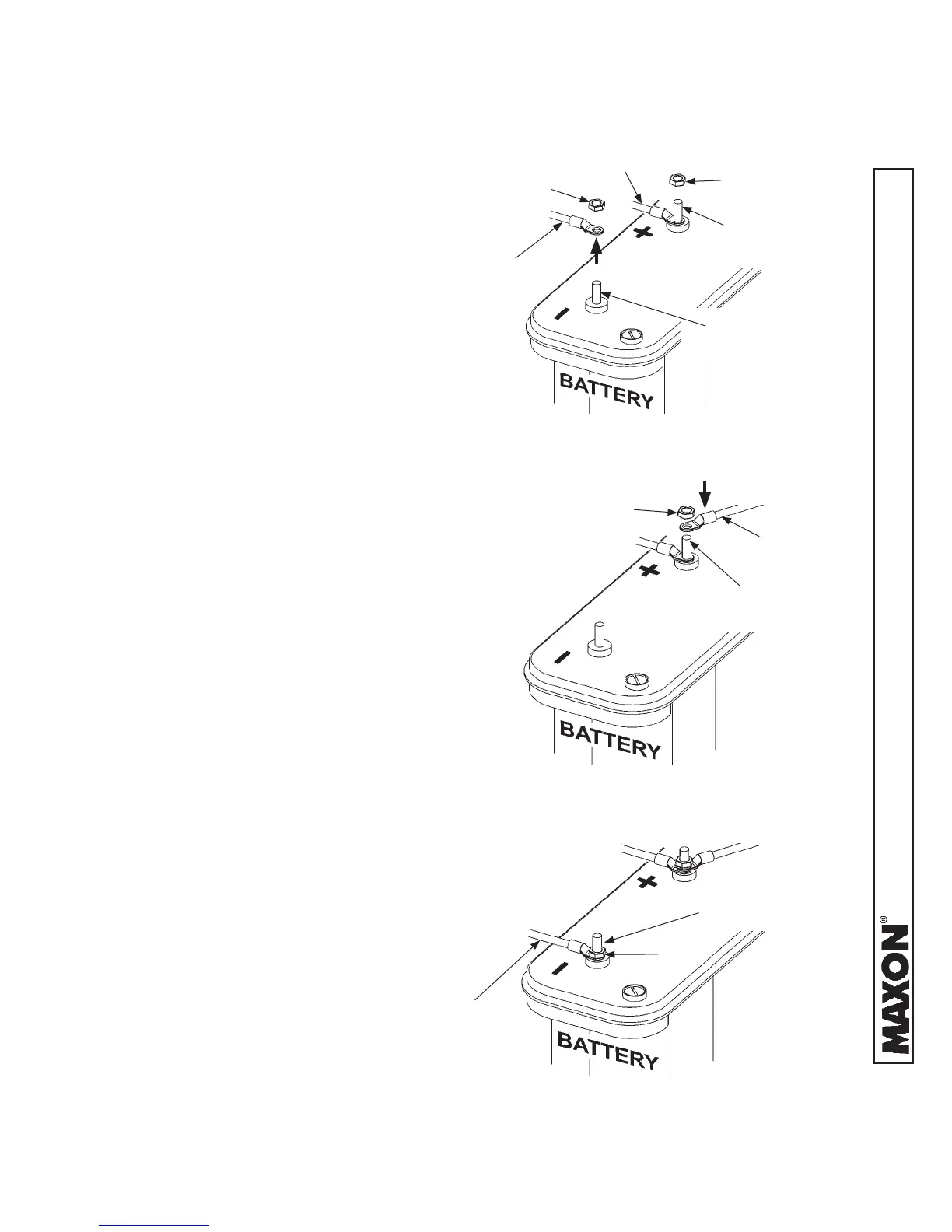

DISCONNECTING (-) BATTERY CABLE
FIG. 41-1
NEGATIVE (-)
BATTERY TERMINAL
NEGATIVE (-)
BATTERY CABLE
RECONNECTED BATTERY CABLES
FIG. 41-3
POSITIVE (+)
BATTERY TERMINAL
POSITIVE (+)
BATTERY CABLE
NUT
NUT
2. Remove nut from positive (+)
battery terminal (FIG. 41-1).
3. Connect fused positive (+) cable
to positive (+) battery terminal
(FIG. 41-2). Then, reinstall nut
on positive (+) battery terminal
(FIG. 41-2).
4. Reconnect negative (-) battery
cable to negative (-) battery ter-
minal (FIG. 41-3). Then, reinstall
nut on negative (-) battery termi-
nal (FIG. 41-3).
CONNECTING FUSED (+) CABLE
FIG. 41-2
POSITIVE (+)
BATTERY TERMINAL
FUSED (+)
CABLE
NEGATIVE (-)
BATTERY CABLE
NEGATIVE (-)
BATTERY TERMINAL
NUT
NUT
