32

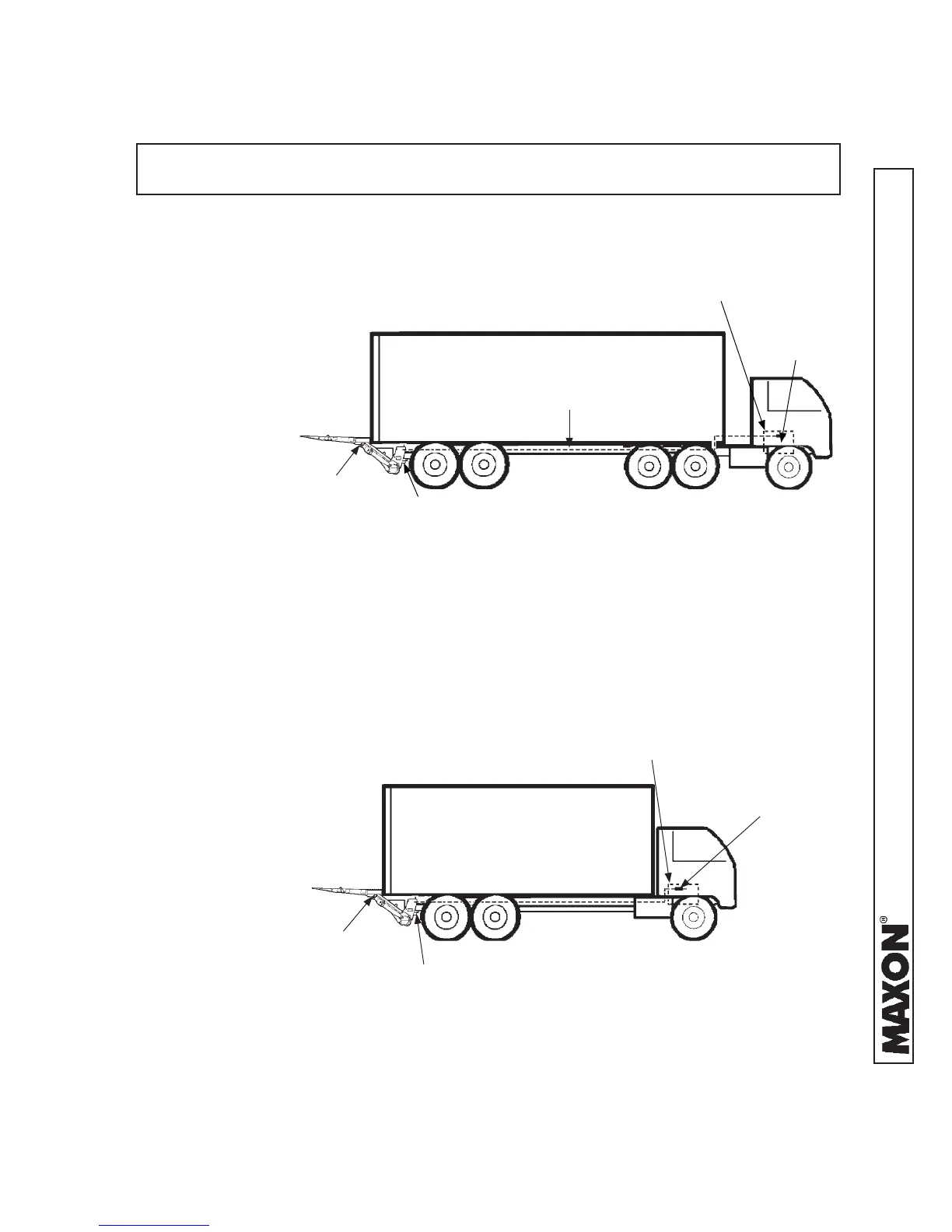

STEP 4 - RUN POWER CABLE
RECOMMENDED LIFTGATE & POWER CABLE
INSTALLATION ON TRUCK
FIG. 32-2
NOTE: Make sure the Liftgate power unit, and all batteries on the vehicle for the
power unit, are connected correctly to a common chassis ground.
RECOMMENDED CONFIGURATION
1. Liftgate powered from
truck batteries is typically
installed on trailers as
shown in FIG. 32-1 and
on trucks as shown in
FIG. 32-2. See the fol-
lowing page for running
the power cable.
LIFTGATE
RECOMMENDED LIFTGATE & POWER CABLE
INSTALLATION ON TRAILER
FIG. 32-1
175 AMP
FUSED CABLE
TRACTOR BATTERIES,
TYPICAL LOCATION
LIFTGATE
LIFTGATE
POWER UNIT
LIFTGATE
POWER UNIT
175 AMP
FUSED CABLE
TRUCK BATTERIES,
TYPICAL LOCATION
175 AMP
FUSED CABLE
To Next Page
