11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
31
STEP 3 - ATTACH OPTIONAL BATTERY BOX & FRAME
TO VEHICLE (IF EQUIPPED) - Continued

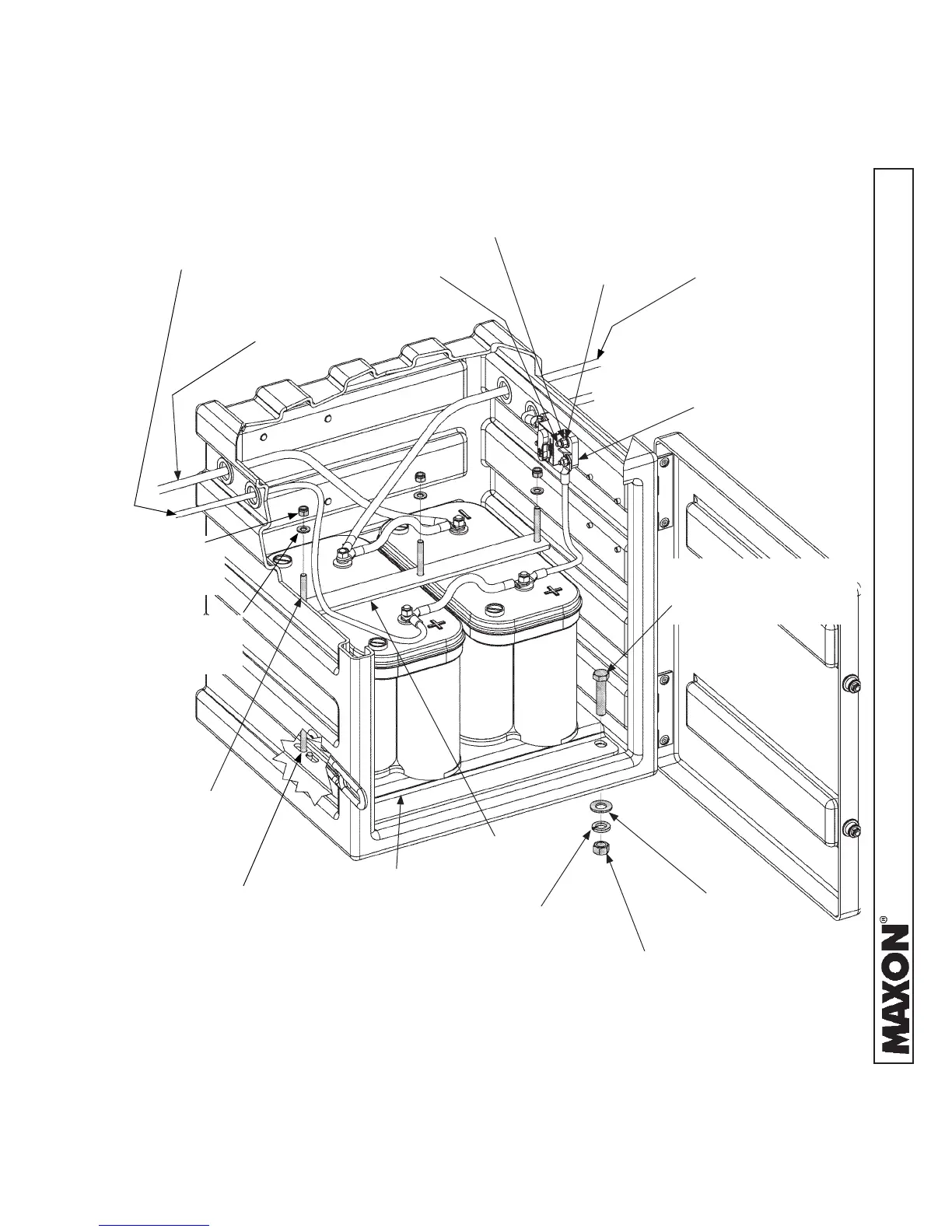

BATTERY BOX ASSEMBLY
FIG. 31-1
BATTERY
PLATE
BATTERY
STRAP
LOCK NUT, 1/4”-20
(2 PLACES)
HEX NUT
1/2”-20
(4 PLACES)
LOCK WASHER
9/16”
(4 PLACES)
FLAT WASHER
9/16”
(4 PLACES)
J-BOLT ANCHOR
(PART OF
BATTERY PLATE)
FLAT WASHER
1/4”
(4 PLACES)
PAN HEAD SCREW
1/4”-20 X 1” LG.
(2 PLACES)
CAP SCREW
1/2”-20 X 2 1/4” LG. GR8
(4 PLACES)
J-BOLT
BATTERY
TIE DOWN
175 AMP FUSED
CABLE TO
PUMP BOX
GROUND CABLE
TO PUMP BOX
CHARGE LINE FROM
VEHICLE BATTERY
150 AMP CIRCUIT
BREAKER
FLAT WASHER
5/16”
(3 PLACES)
HEX NUT
5/16”-18, GR8
(3 PLACES)
