11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
64
PUMP & MOTOR SOLENOID OPERATION
SYSTEM DIAGRAMS
TABLE 64-1
NOTE: Hydraulic lock valve is on the RH cylinder.

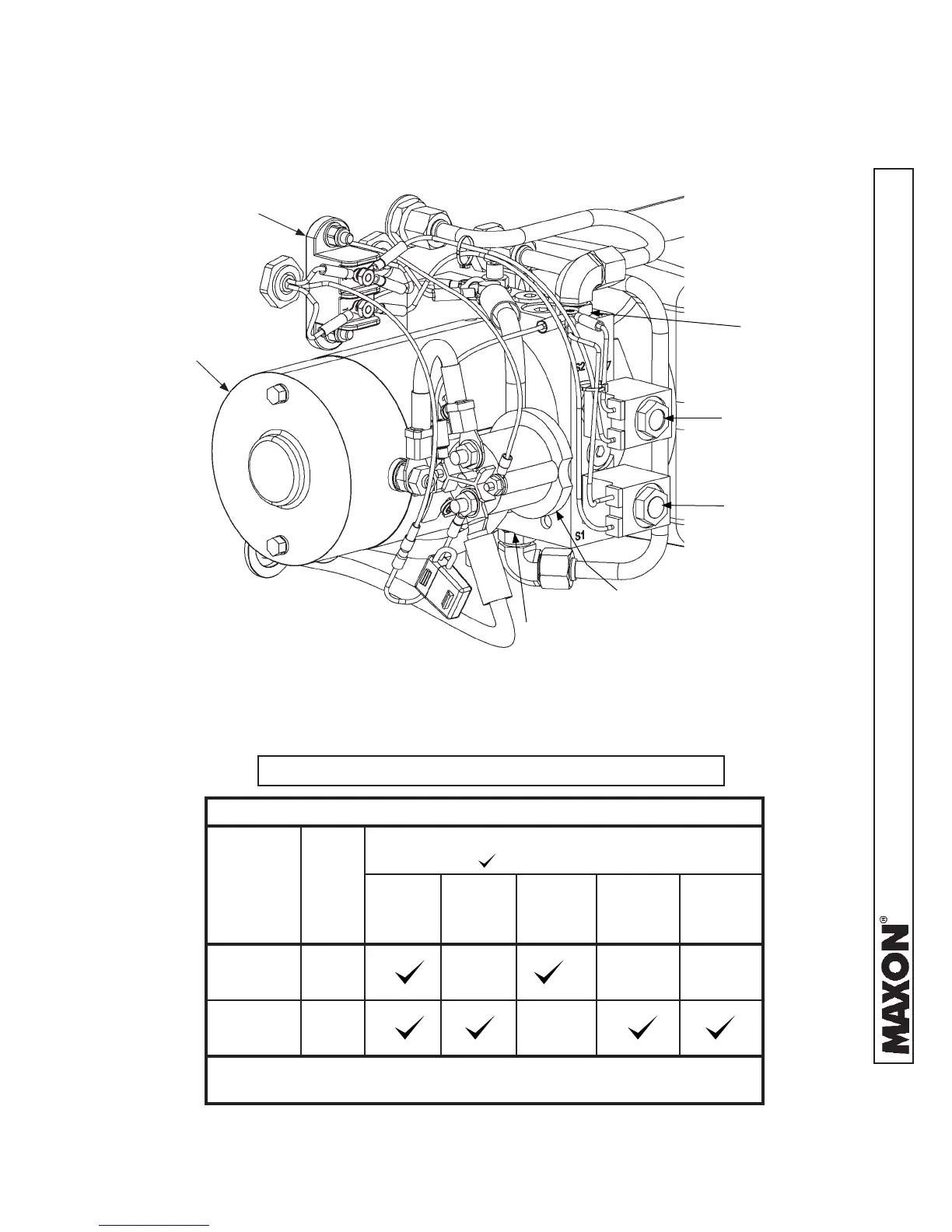

POWER UNIT
FIG. 64-1
POWER UNIT MOTOR & SOLENOID OPERATION
LIFTGATE
FUNCTION
PORT
SOLENOID OPERATION
( MEANS ENERGIZED)
MOTOR
VALVE
“S2”
VALVE
“S1”
LOCK
VALVE
POWER
DOWN
MODULE
RAISE A - - -
LOWER B -
REFER TO VALVES SHOWN ON
HYDRAULIC SCHEMATIC
SOLENOID
SWITCH
“S1” VALVE
“S2” VALVE
MOTOR
PORT B
PORT A
POWER DOWN
MODULE
