10
VEHICLE REQUIREMENTS
1. Check for correct clearances (FIG. 10-1 & 10-2) on
vehicle to prevent interference between vehicle
and Liftgate.
NOTE: Make sure vehicle is parked on level ground while preparing vehicle and
installing Liftgate.
NOTE: BODY maximum and minimum operating bed height, for GPTWR models
with standard platform, are as follows.
Maximum height is 55” (Unloaded). Loaded height is 49”. On vehicle bodies
equipped with swing-open doors, extension plate and vehicle body must be
modifi ed to install this Liftgate.
NOTE: Dimensions are provided as reference for fi tting Liftgate to vehicle body.

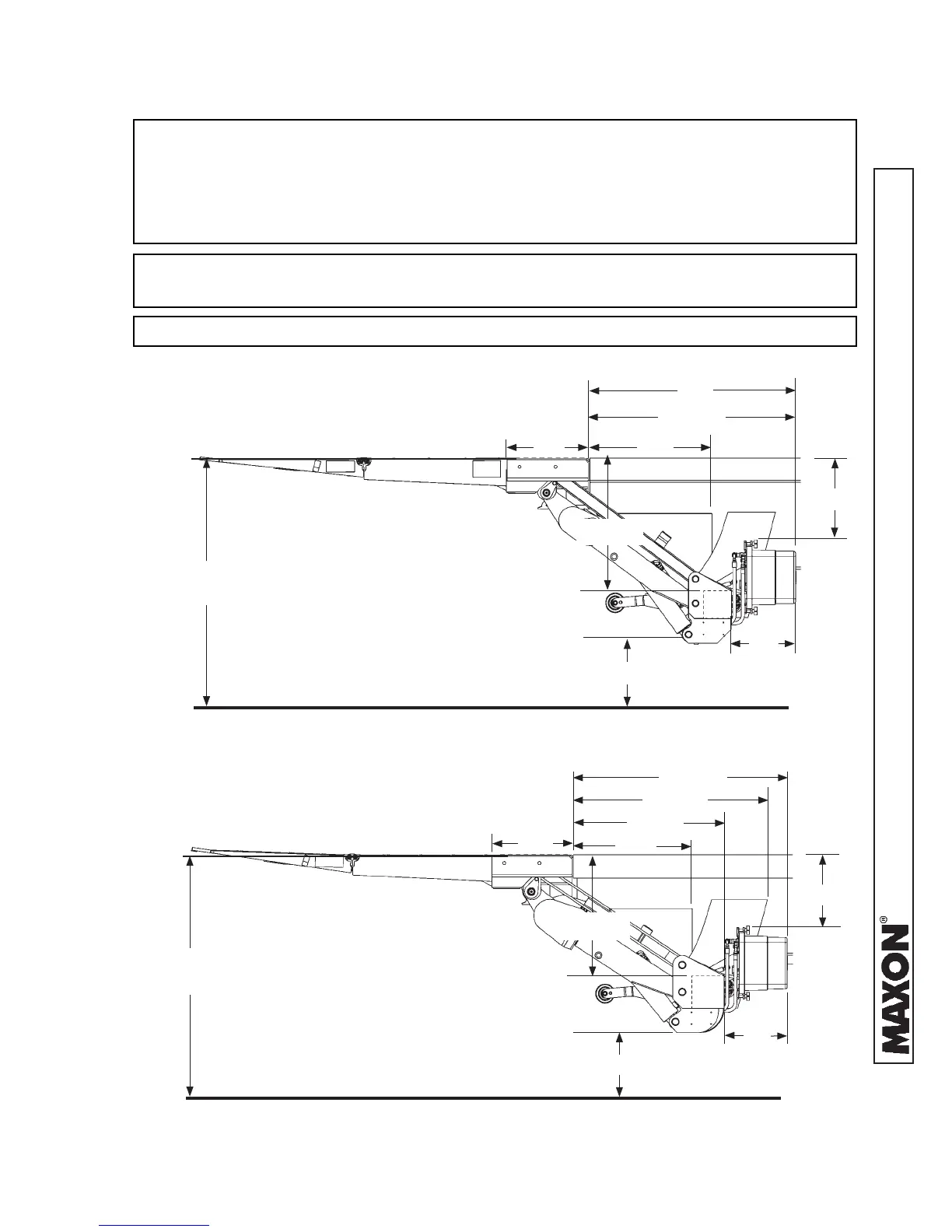

GPTWR-25 & GPTWR-3 LIFTGATE CLEARANCE DIMENSIONS
FIG. 10-1
15-5/8” TO 21-5/8”
55” MAX. BED HEIGHT
49” LOADED BED HEIGHT
15”
14-3/4”
33”
29-5/8”
22”
12”
GPTWR-4 & GPTWR-5 LIFTGATE CLEARANCE DIMENSIONS
FIG. 10-2
16-3/16” TO 22-3/16”
55” MAX. BED HEIGHT
49” LOADED BED HEIGHT
15”
13-5/16”
35-5/16”
27-7/8”
12”
23-7/8”
22-3/8”
39-1/2”
22”
