11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
48

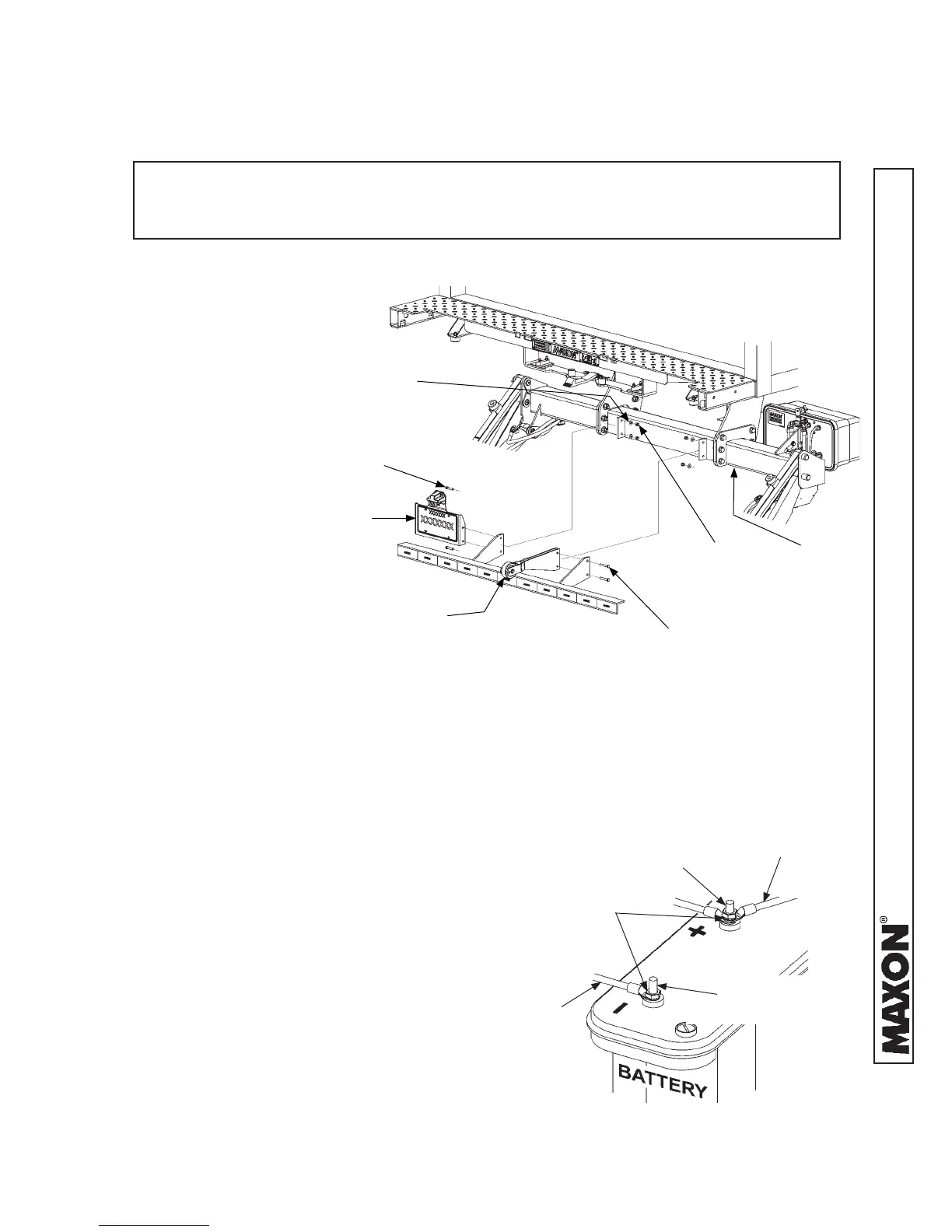

BOLTING ON ICC BUMPER, OPENER &
LICENSE PLATE BRACKET
FIG. 48-1
MAIN
FRAME
CAP SCREW, 1-3/4” LG.
(2 PLACES)
LICENSE PLATE BRACKET
(OUTER LH POSITION SHOWN)
NOTE: License plate bracket can be bolted in 4 positions on the ICC bumper
brackets. License plate bracket can be bolted on the inside or outside of
the LH bumper bracket or RH bumper bracket.
OPENER
LOCK NUT,
3/8”-16
(4 PLACES)
CAP SCREW, 2-1/4” LG.
(2 PLACES)
FLAT WASHER
(4 PLACES)
3. Bolt ICC bumper, opener
(parts bag items), and license
plate bracket to main frame
as shown in FIG. 48-1. Then,
torque bolts and lock nuts to
105 lb-ft.
4. Reconnect power to the pump by
reconnecting positive (+) and nega-
tive (-) cables to battery (FIG. 48-2).
Reinstall and tighten nut when each
battery cable is reconnected.
POSITIVE (+)
BATTERY POST
BATTERY POWER RECONNECTED
FIG. 48-2
NEGATIVE (-)
BATTERY CABLE
NEGATIVE (-)
BATTERY POST
NUT
POSITIVE (+)
BATTERY CABLE
5. Stow and unfold Liftgate several
times to verify there is no interfer-
ence. Refer to operating instruc-
tions in Operation Manual.
STEP 11 - INSTALL OPENER & LICENSE PLATE
BRACKET WITH ICC BUMPER OR UNDERRIDE - Cont’d
To Next Page
