35
STEP 3 - ATTACH OPTIONAL BATTERY BOX & FRAME
TO VEHICLE (IF EQUIPPED) - Continued
5. Connect battery cables, fused cables, and ground
cables for 12 volt power as shown in FIG. 35-1 or
24 volt power as shown in FIG. 36-1.
NOTE: Always connect fused end of power cable to battery positive (+) terminal.
NOTE: To connect charge lines, refer to instructions provided with each charge
line kit.
Remove all rings, watches and jewelry before doing any electrical work.
WARNING
!
FUSED CABLE
(SEE NOTE)
FUSED CABLE TO PUMP BOX
(IN PARTS BOX)
8” LG.
RED CABLE
GROUND CABLE TO PUMP
BOX OR COMMON CHASSIS
GROUND, 74” LG.
(BATTERY BOX KIT ITEM)

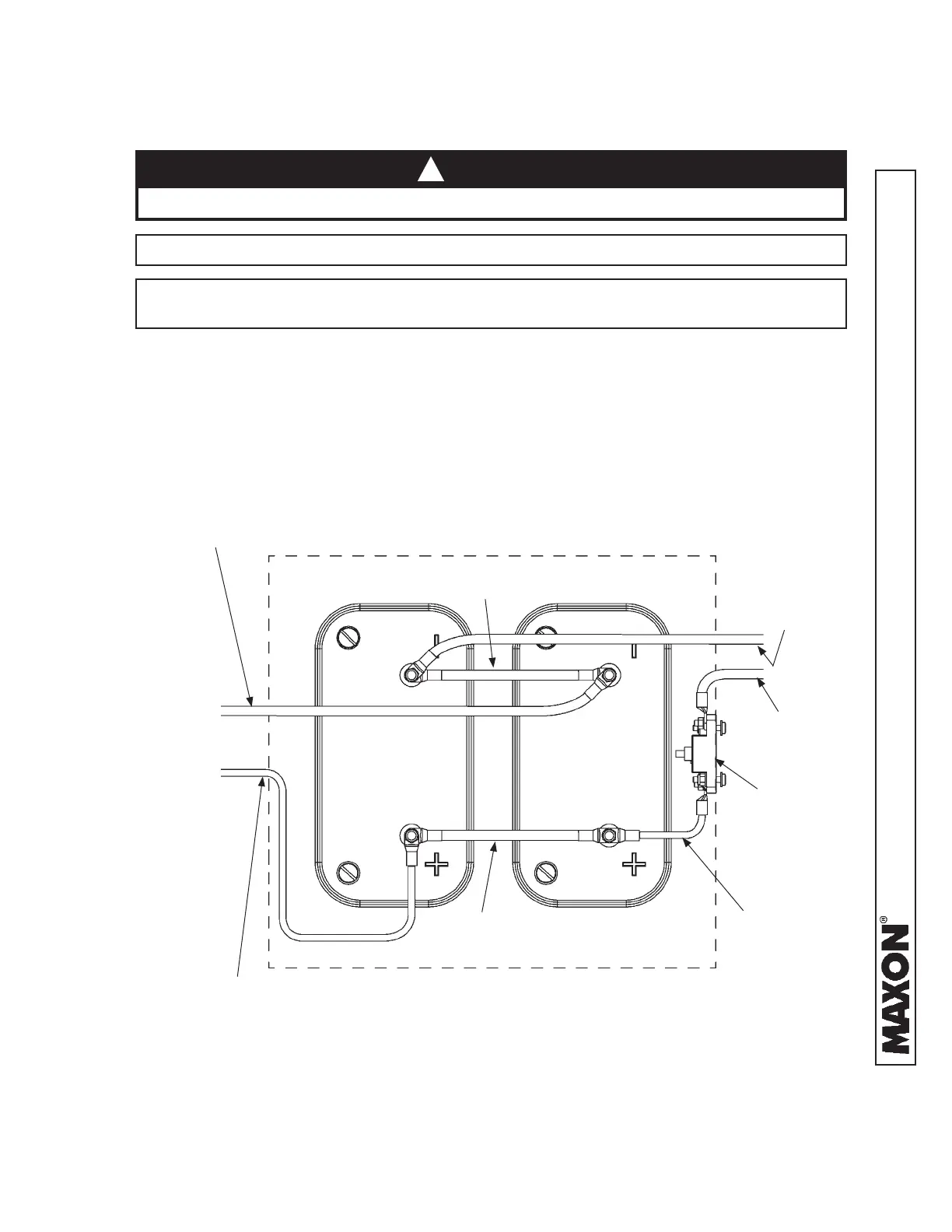

12 VOLT BATTERY CONNECTIONS
FOR 12 VOLT POWER
FIG. 35-1
150 AMP
CIRCUIT
BREAKER
(-) BATTERY
CABLE TO
COMMON
GROUND
8” LG.
BLACK CABLE
12” LG.
RED CABLE
