Maxon TE-15 - Step 14 - Bolt Steps to Extension Plate

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
63

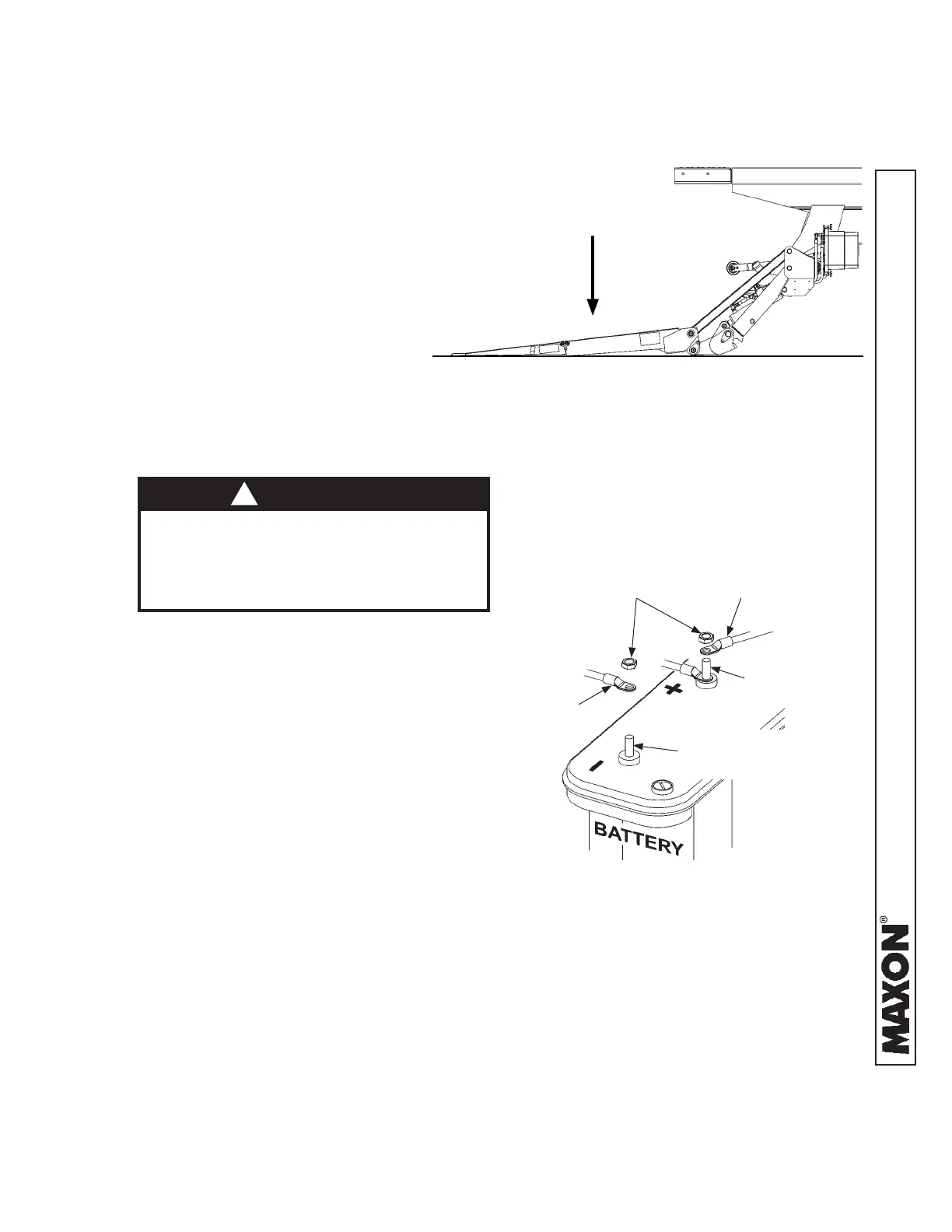

PLATFORM LOWERED TO GROUND
FIG. 63-1
1. Lower platform to the ground
(FIG. 63-1).
STEP 14 - BOLT STEPS TO EXTENSION PLATE
POSITIVE (+)
BATTERY POST
NEGATIVE (-)
BATTERY CABLE
NEGATIVE (-)
BATTERY POST
NUT
POSITIVE (+)
BATTERY CABLE
WARNING
!
To prevent accidental personal injury
and equipment damage, disconnect
(-) battery cable and (+) cable from
battery.
2. Disconnect power to the pump by dis-
connecting negative (-) and positive
(+) cables from battery (FIG. 63-2).
Reinstall nuts on negative (-) and
positive (+) battery terminals.
DISCONNECTING BATTERY POWER
FIG. 63-2
