Maxtor Central Axis User Manual

Reading the LED Status Indicators 111
Maxtor Central Axis Admin User Guide

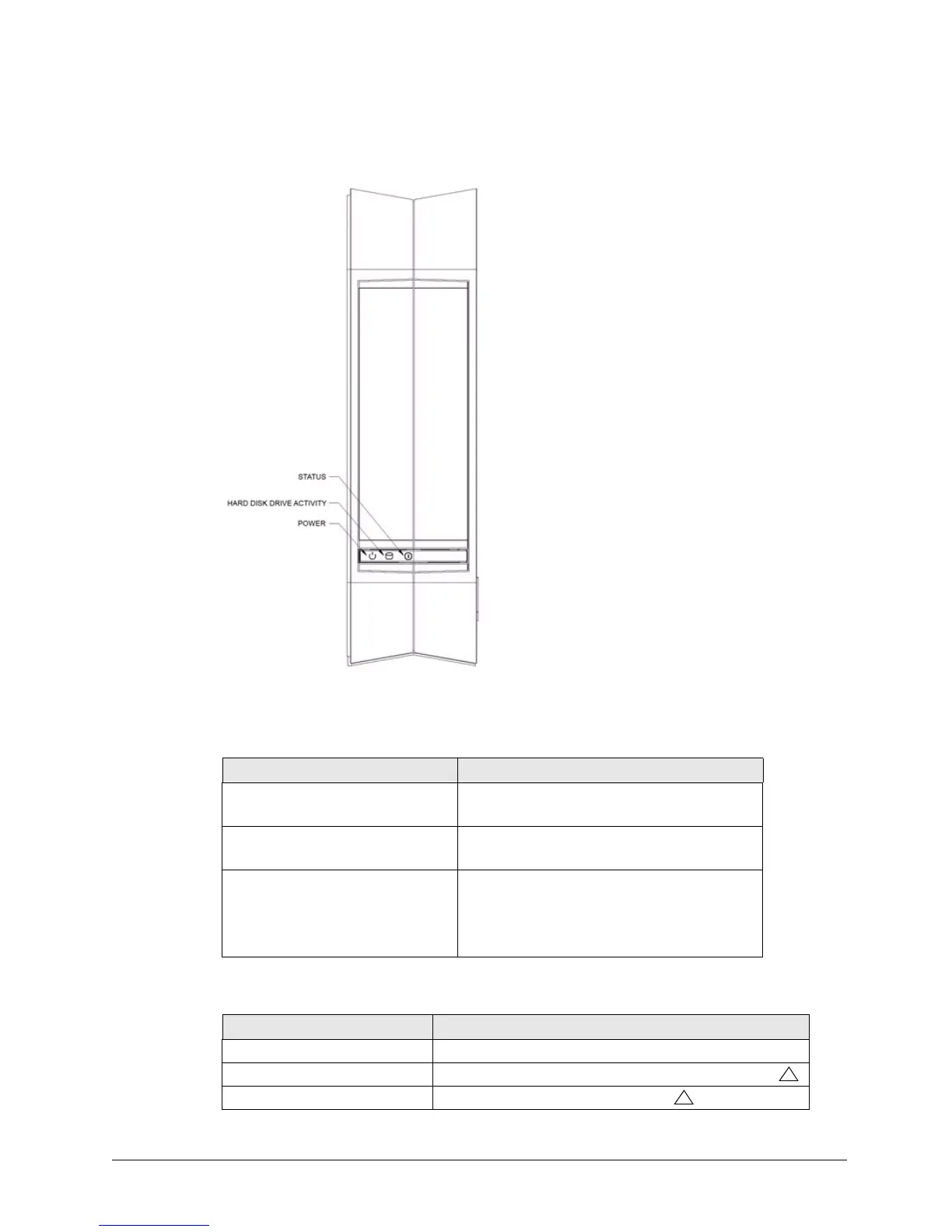

Figure 164: Central Axis Dual Drive LEDs – Front View
Table 1: Front LED Activity States
LED Descriptions State
Power:
• Illuminated Power on
Hard Disk Drive Activity:
• Illuminated Data being transferred
Status:
• Steady White
• Flashing White
• Flashing White/Red Combinations
Status OK;
Powering on or off;
See Status LED Error Codes table below
Table 2: Status LED Error Codes
Flashing LED Descriptions Error
1 White/1 Red Failure to mirror shared folder
1 White/2 Red Hard disk drive S.M.A.R.T. Error: Problem with Drive 1
1 White/3 Red Boot Error: Cannot boot from Drive 1
