Work areas and workstations
2.12 Work areas and workstations
• The machine is intended exclusively for operation by one person.
• The figure shows the most important workstations as well as the work-
ing area and service area of the machine.
• The necessary work areas for operation, installation, commissioning,
and maintenance are highlighted in gray and should be at least 100 cm .
• The service area is highlighted shaded.
• The possible workstations are marked with an "X."
2.12.1 Layout from right to left
1 Workstations

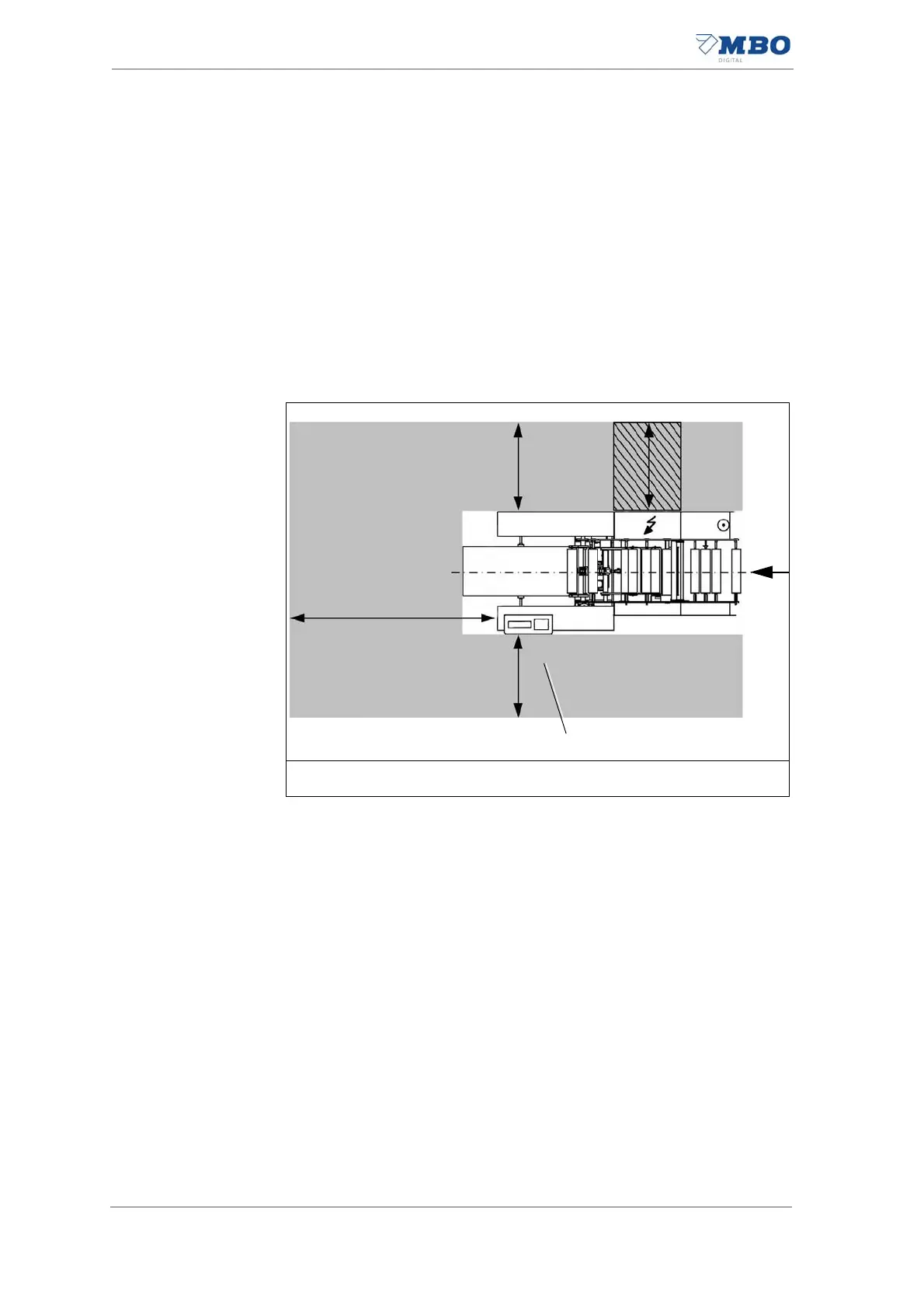

Illustration 1: Work area and workstations RW500
1
1
Unit of measurement in cm
X
250
100
100
100
RW500
